Overview

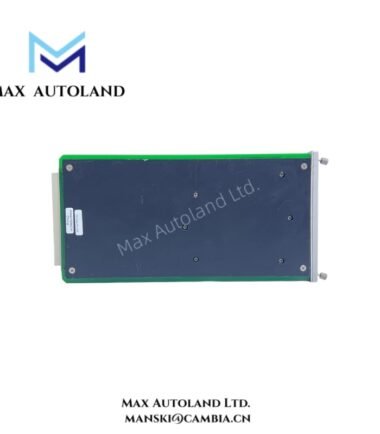

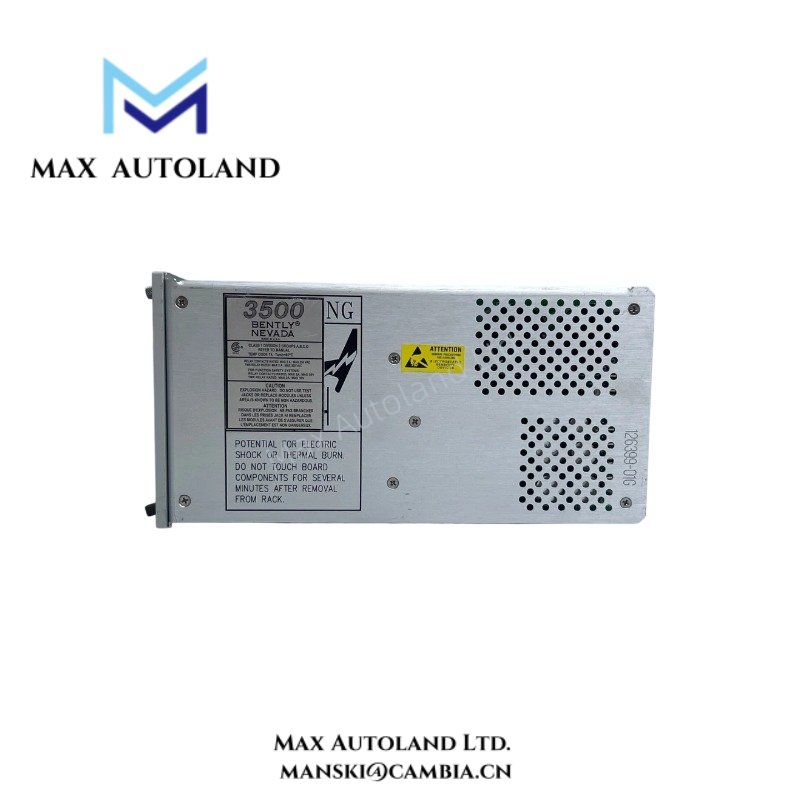

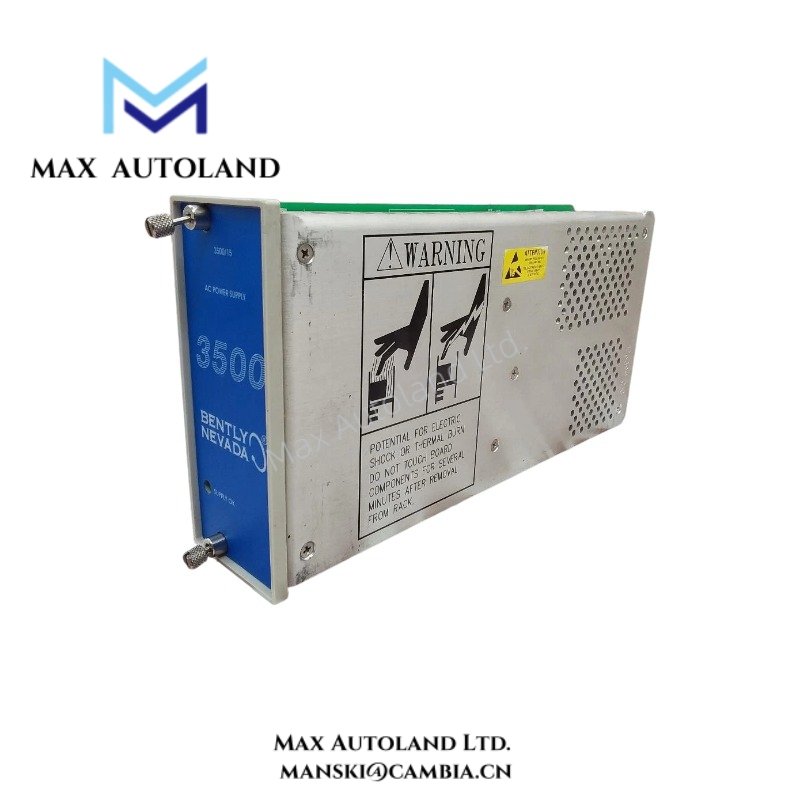

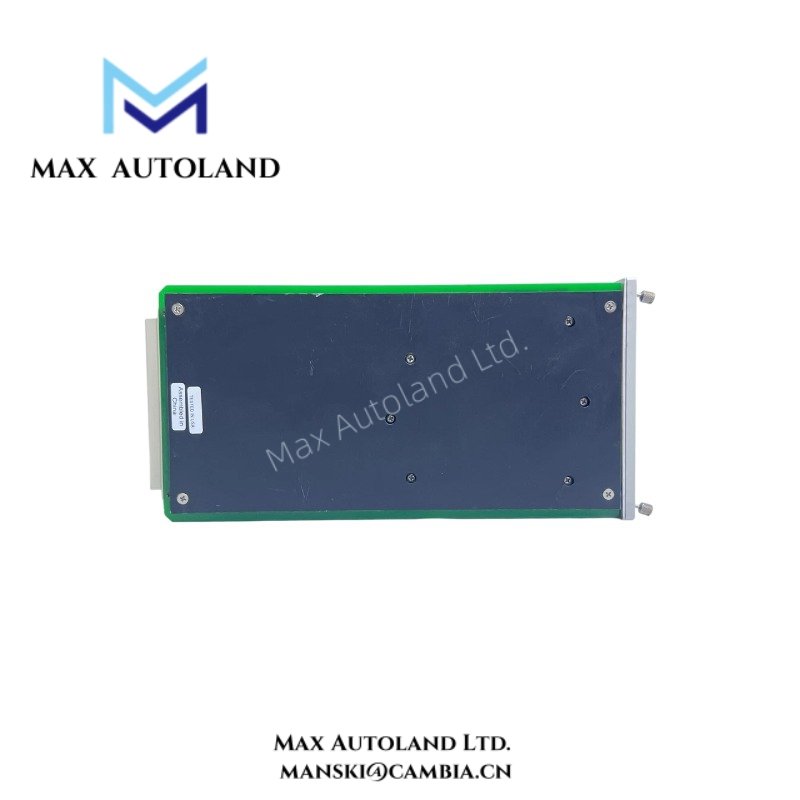

The Bently Nevada 3500/15 126399-01G AC Power Supply Module provides stable and reliable power for the 3500 Machinery Protection System.
It ensures consistent energy delivery to all rack-mounted modules, supporting continuous monitoring in critical industrial environments.
Moreover, this power supply module supports redundant configurations, allowing systems to maintain operation during power source interruptions.
Therefore, engineers depend on this module to maintain system integrity and prevent unexpected shutdowns in high-availability applications.
Key Features and Functional Highlights
The module converts AC input power into regulated DC output for all installed 3500 system modules.
In addition, it supports dual power supply configurations, which enhance system reliability and reduce the risk of downtime.
Its compact rack-mounted design allows easy installation and integration within existing 3500 system infrastructures.
Moreover, the module continuously monitors its own operational status and provides diagnostic feedback to the system.
Furthermore, it supports a wide input voltage range, making it suitable for global industrial power environments.
Specification
| Parameter | Description |
|---|---|
| Model | 3500/15 AC Power Supply Module |
| Part Number | 126399-01G |
| Input Voltage Range | 85 to 264 VAC |
| Input Frequency | 47 to 63 Hz |
| Input Current | Typically varies based on system load |
| Power Consumption | Depends on number and type of installed modules in the rack |
| Output Type | Regulated DC power for 3500 system modules |
| Output Voltage | Internal DC distribution via rack backplane |
| Power Supply Slots | Installed in designated power supply slots within 3500 rack |
| Redundancy Support | Supports dual redundant power supply configuration |
| System Compatibility | Fully compatible with Bently Nevada 3500 Machinery Protection System |
| Mounting Method | Rack-mounted within 3500 system enclosure |
| Status Indicators | Front panel LEDs for power status and fault indication |
| Diagnostics | Built-in self-test, status monitoring, and fault reporting |
| Protection Features | Overvoltage, undervoltage, and internal fault protection |
| Cooling Method | Natural convection within rack system |
| Operating Temperature | 0°C to +65°C (32°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Compliance | Designed to meet industrial EMC and safety standards |
| Weight | Approximately 1.0–1.5 kg (depending on configuration) |
| Dimensions | Standard 3500 rack module form factor |
FAQ
Q1: What is the main function of the 3500/15 power supply module?
A1: It converts AC input power into stable DC power for all modules in the 3500 system.
Q2: Does this module support redundant power configurations?
A2: Yes, it supports dual power supply setups to improve system reliability and uptime.
Q3: What input voltage range does the module accept?
A3: It supports a wide input range from 85 to 264 VAC for global compatibility.
Q4: Can this module be used in all 3500 system racks?
A4: Yes, it is fully compatible with standard Bently Nevada 3500 rack systems.
Q5: How does the module indicate faults or status?
A5: It uses front panel LED indicators and system diagnostics to display operational status.
