Overview

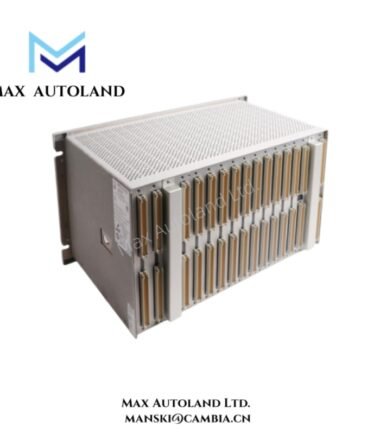

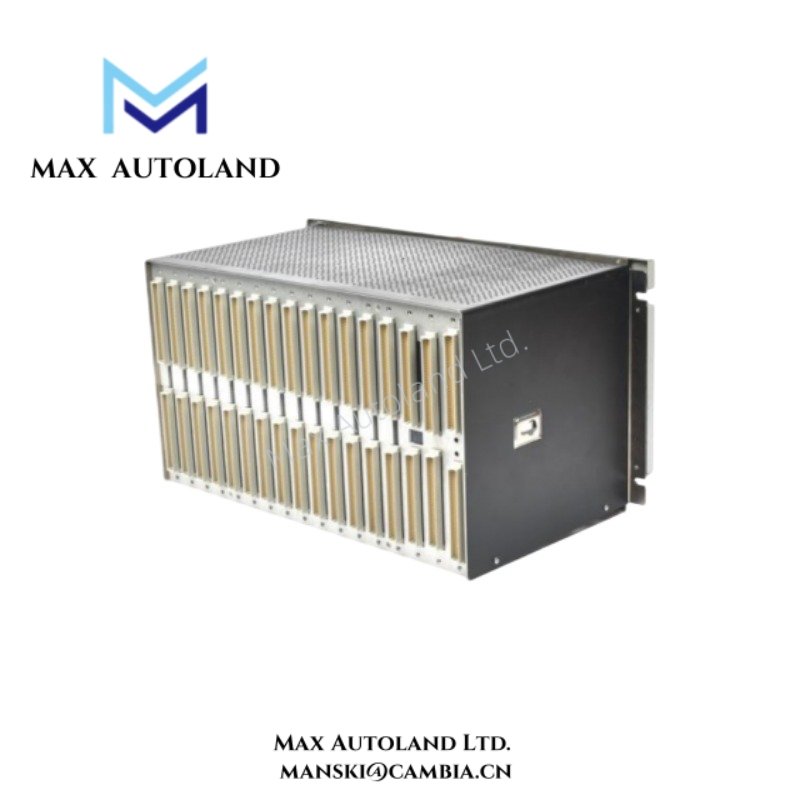

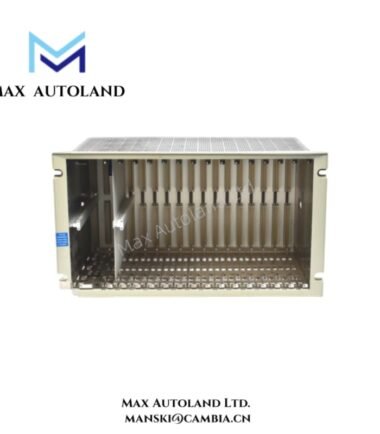

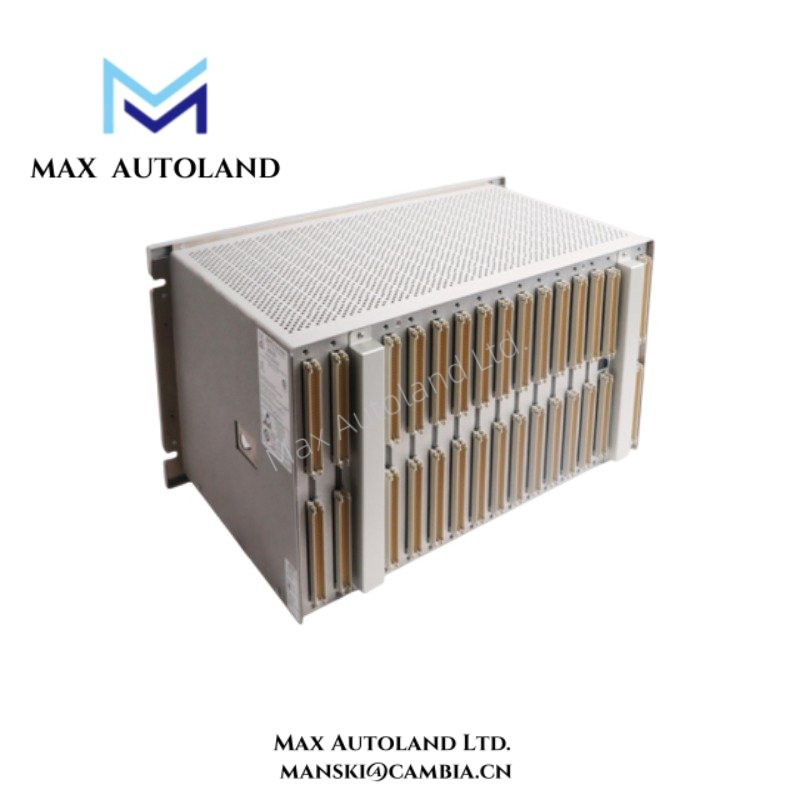

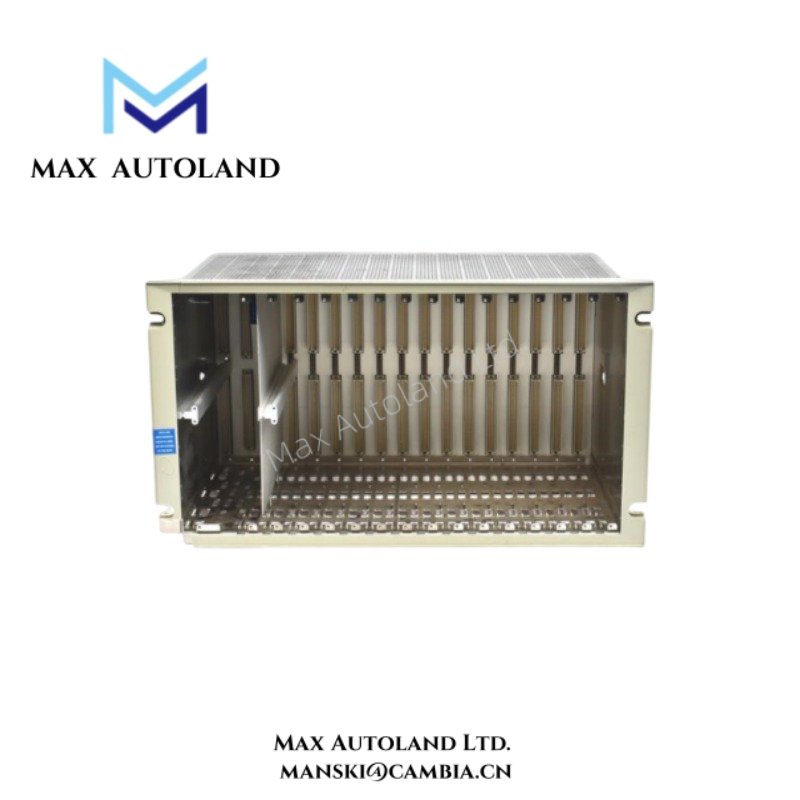

The Bently Nevada 3500/05-01-02-01-00-01 System Rack provides the structural foundation for the 3500 Machinery Protection System installation.
It houses monitoring modules, power supplies, and communication interfaces within a compact and highly organized rack architecture.
Moreover, the rack ensures reliable module alignment and secure electrical connections through an integrated backplane design.
Therefore, engineers rely on this system rack to maintain stability, signal integrity, and long-term operational performance.
Key Features and Functional Highlights
The rack supports multiple module slots, allowing flexible system expansion based on specific machinery protection requirements.
In addition, it includes a robust backplane that distributes power and communication signals efficiently across all installed modules.
Its modular design simplifies installation, configuration, and future upgrades without disrupting ongoing operations.
Moreover, the rack supports redundant power supply configurations, which enhance system availability in critical applications.
Furthermore, clearly labeled slots and connectors improve maintenance efficiency and reduce the risk of installation errors.
Specification
| Parameter | Description |
|---|---|
| Model | 3500/05 System Rack |
| Configuration Code | 3500/05-01-02-01-00-01 |
| Rack Type | Standard 19-inch rack |
| Module Capacity | Typically 14 slots (including power supply and interface modules) |
| Mounting Options | Panel mount or rack mount |
| Backplane Type | Integrated backplane for power and signal distribution |
| Power Supply Support | Supports single or dual redundant power supplies |
| Slot Configuration | Dedicated slots for monitors, power supplies, and communication modules |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Construction Material | صنعتی-grade metal chassis for durability |
| Cooling Method | Passive cooling via natural airflow |
| Operating Temperature | 0°C to +65°C (32°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | Standard 19-inch rack form factor |
| Weight | Varies depending on configuration |
FAQ
Q1: What is the primary function of the 3500/05 system rack?
A1: It provides a mounting and integration platform for all modules within the 3500 machinery protection system.
Q2: How many modules can the rack support?
A2: It typically supports up to 14 slots, depending on configuration and module types.
Q3: Does the rack support redundant power supplies?
A3: Yes, it supports dual power supply configurations for improved system reliability.
Q4: Can the rack be mounted in different ways?
A4: Yes, it supports both panel mounting and standard 19-inch rack installation.
Q5: What industries commonly use this system rack?
A5: It is widely used in power plants, oil and gas facilities, and heavy industrial applications.
