Overview
Moreover, its dual-core architecture enables fast and deterministic execution of control programs for complex process applications.
Engineers select this module for seamless integration with FSC Series racks, allowing scalable system expansion and standardized I/O deployment.
In addition, the robust construction ensures long-term operation in demanding industrial environments.
It supports redundancy and advanced diagnostics to maintain uninterrupted process control.
Specification
| Parameter | Specification |
|---|---|

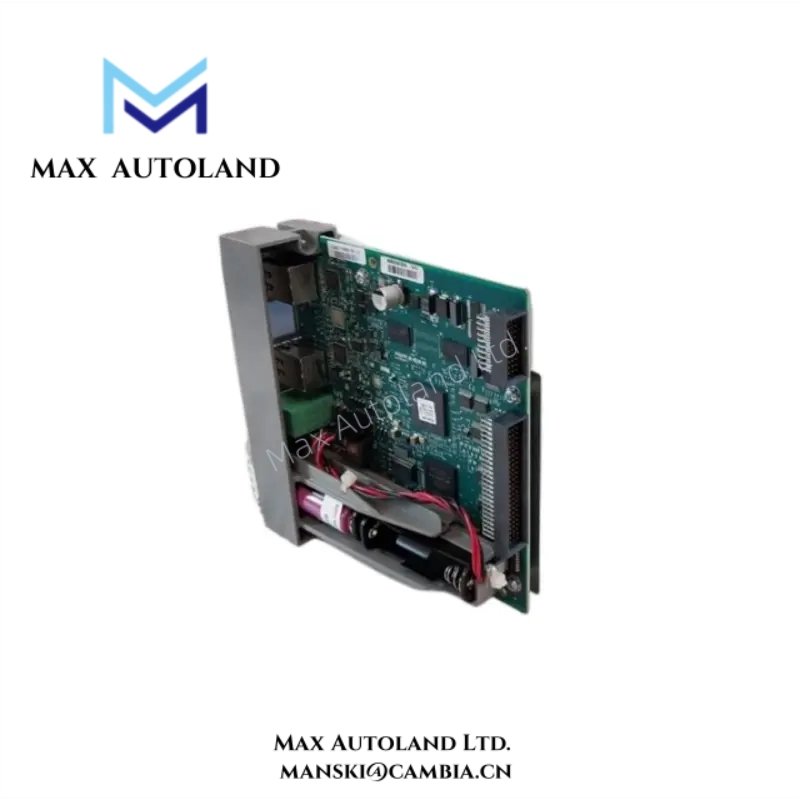

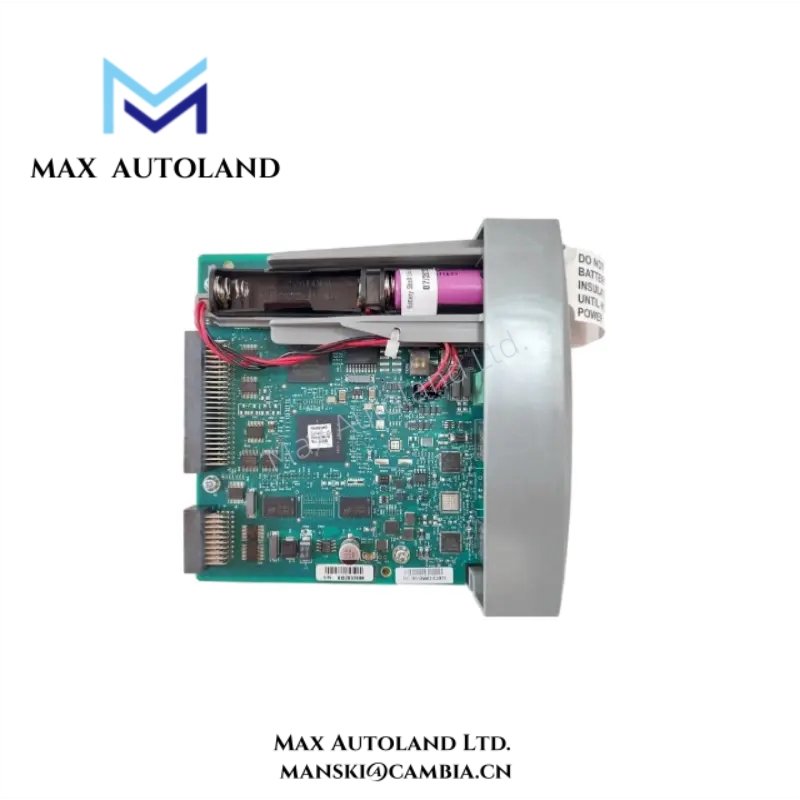

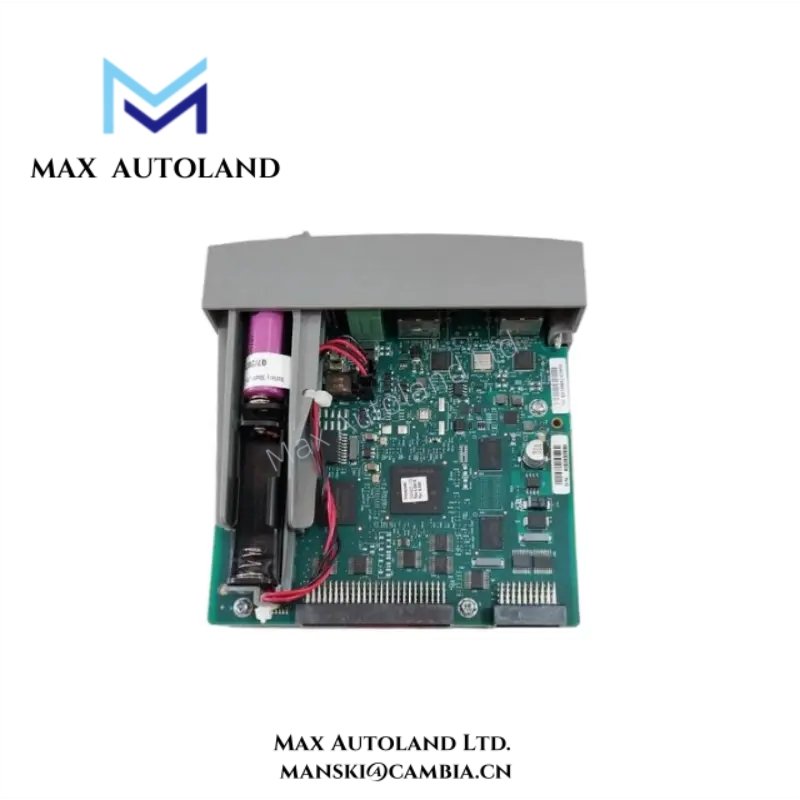

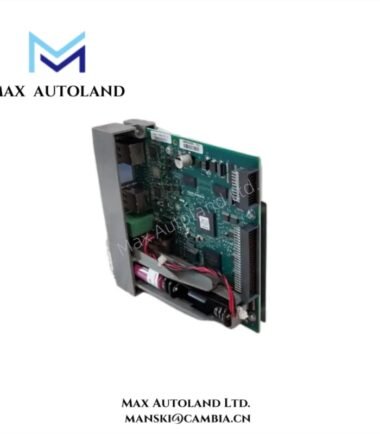

| Model | Honeywell 900C30-0360-00 |
| Module Type | C30 CPU Processor Module |
| Processor | Dual Core ARM® Cortex™-A9, 32-bit, 667 MHz |
| User Programming Memory | 32 MB physical UOC, 128 MB virtual UOC |
| Nonvolatile Memory | 16 Mbits, data life > 20 years, no battery required |
| SD Card Support | 32 GB Class 6 / Class 10, industry standard |
| Real-time Clock Resolution | 1 ms |
| I/O Scan Time | 10 ms – 3000 ms, adjustable per module |
| Controller Redundancy | Supported |
| CPU Watchdog | Automatic reset on error detection |
| Switchover | Internal parameters, variables, and outputs maintained during transition |
| LED Indicators | 2 LEDs, three-color, indicate status and CPU role |
| Ethernet Ports | 4, Shielded RJ45, auto-crossover, 10/100BaseTx |
| Protocols CPM Ports 1 & 2 | CDA through FTE, Modbus/TCP |
| Protocols CPM Ports 3 & 4 | ControlEdge 900 I/O, Ethernet/IP, PROFINET |
| Embedded Firewall | Supported on all ports |
| IPSec Security | Supported on ports 1 & 2 |
| Isolation | 1500 V RMS for 1 minute, 60 Hz |
| Transient Voltage Suppression | 600 W peak pulse power, 10×1000 μs waveform |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5%–95%, non-condensing |
| Typical Applications | Process control, data acquisition, industrial automation systems |
FAQ
Q1: What processor does the 900C30-0360-00 use?
A1: It uses a dual-core ARM® Cortex™-A9 processor at 667 MHz for deterministic execution.
Q2: Can this CPU module support ControlEdge 900 I/O modules?
A2: Yes, it supports up to 144 ControlEdge 900 I/O modules per controller.
Q3: Does this module support redundancy?
A3: Yes, the C30 module supports CPU redundancy for uninterrupted process control.
Q4: What memory options are available for programming and retention?
A4: It provides 32 MB physical and 128 MB virtual UOC memory, plus 16 Mbits nonvolatile memory.
Q5: Are standard industrial Ethernet protocols supported?
A5: Yes, it supports ControlEdge 900 I/O, Ethernet/IP, PROFINET, Modbus/TCP, and CDA through FTE.
Q6: What is the module’s operating temperature range?
A6: The module operates reliably between 0°C and 60°C in industrial conditions.
