Overview

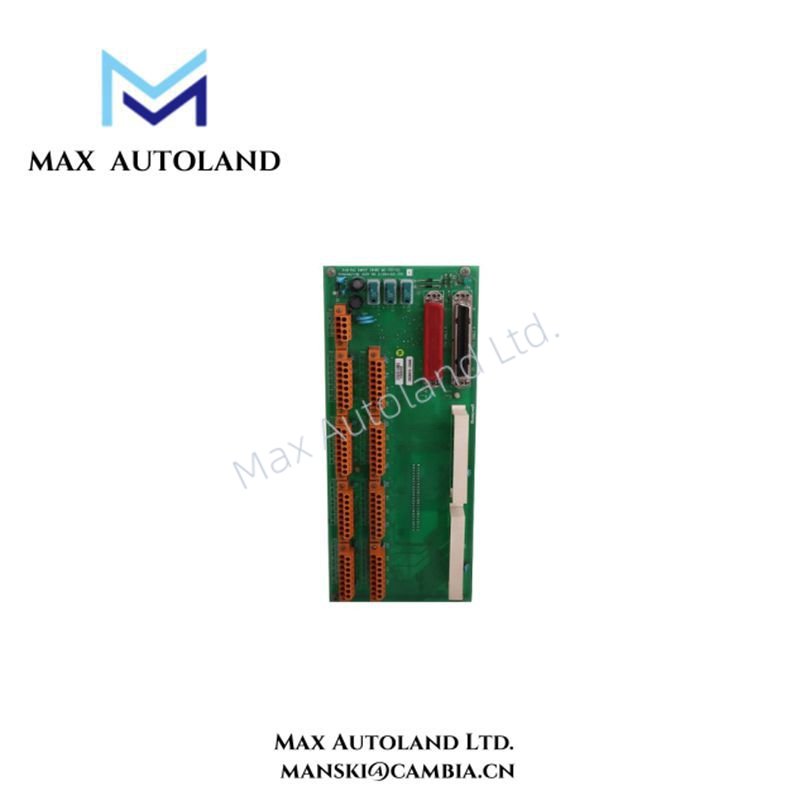

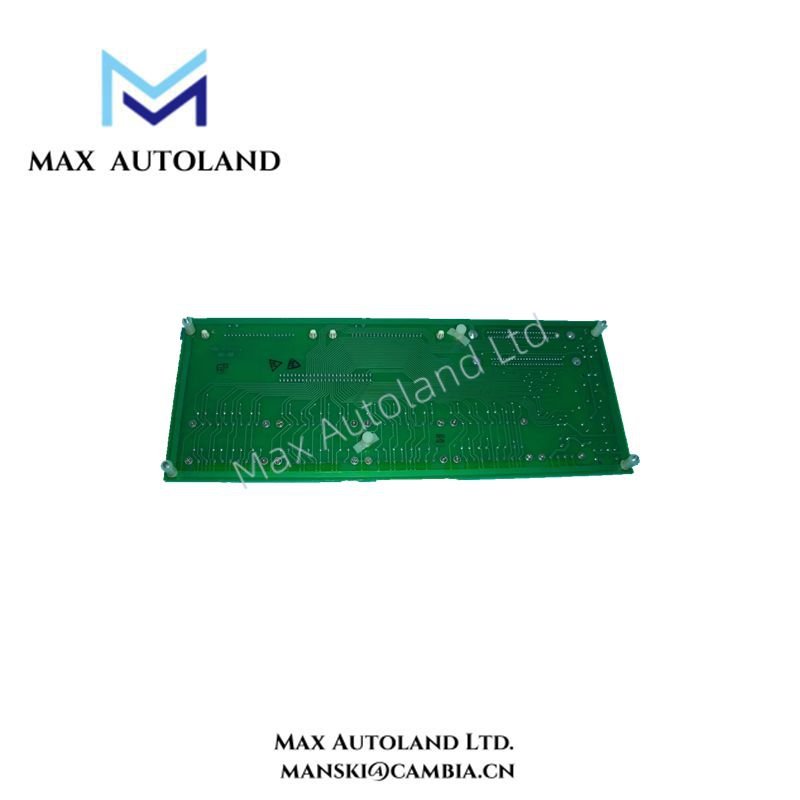

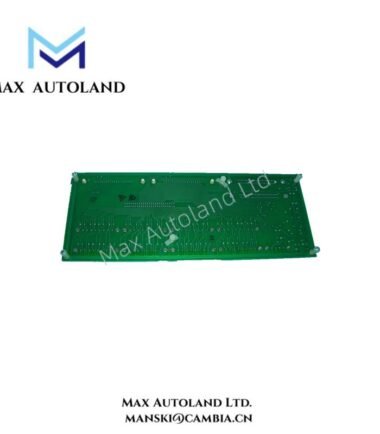

The Honeywell MC-TDIY22 51204160-175 is a high-performance Digital Input Field Termination Assembly (FTA) designed for Honeywell’s Universal Control Network (UCN) systems. It offers 32 isolated dry contact input channels, ensuring reliable signal processing in industrial automation applications.
Specification
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | MC-TDIY22 51204160-175 |
| Module Type | Digital Input Field Termination Assembly (FTA) |
| Input Channels | 32 |
| Input Voltage | 24 VDC ±15% (supports wide voltage fluctuation) |
| Input Type | Dry contact (voltage-free signals) |
| Load Voltage Range | -15 to 30 VDC, up to 500 mA |
| Input Current | 200 mA per channel |
| Isolation | 1500 VDC |
| Power Consumption | 1.5 W max |
| Terminal Type | Compression terminals |
| Size | 12.1 inches (307 mm) |
| Weight | 0.94 kg (approx. 2.07 lbs) |
| Operating Temperature | -20°C to +60°C |
| Certifications | CE compliant, conformally coated |
