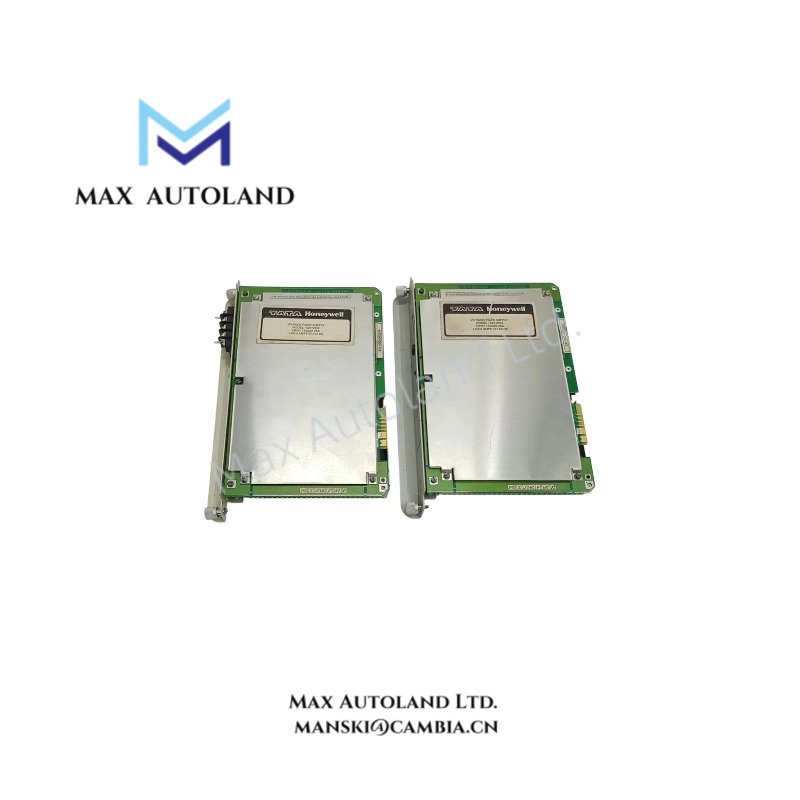

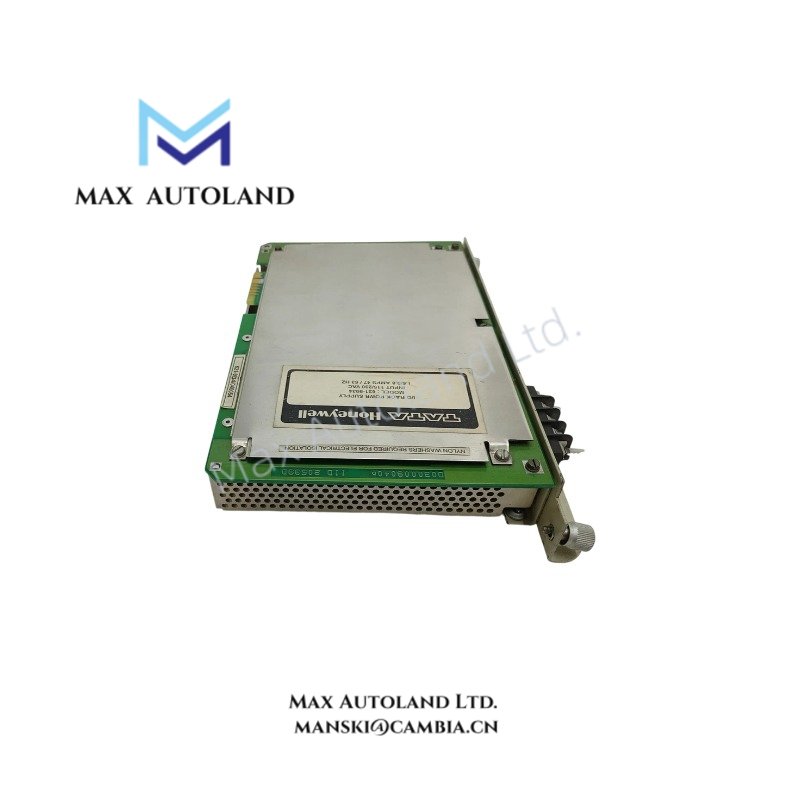

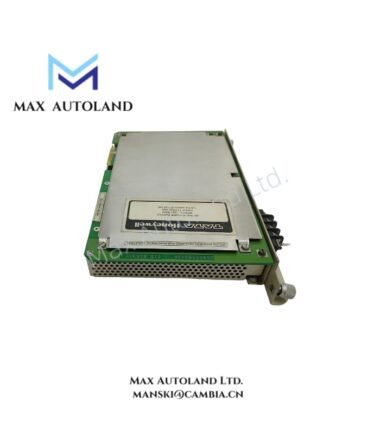

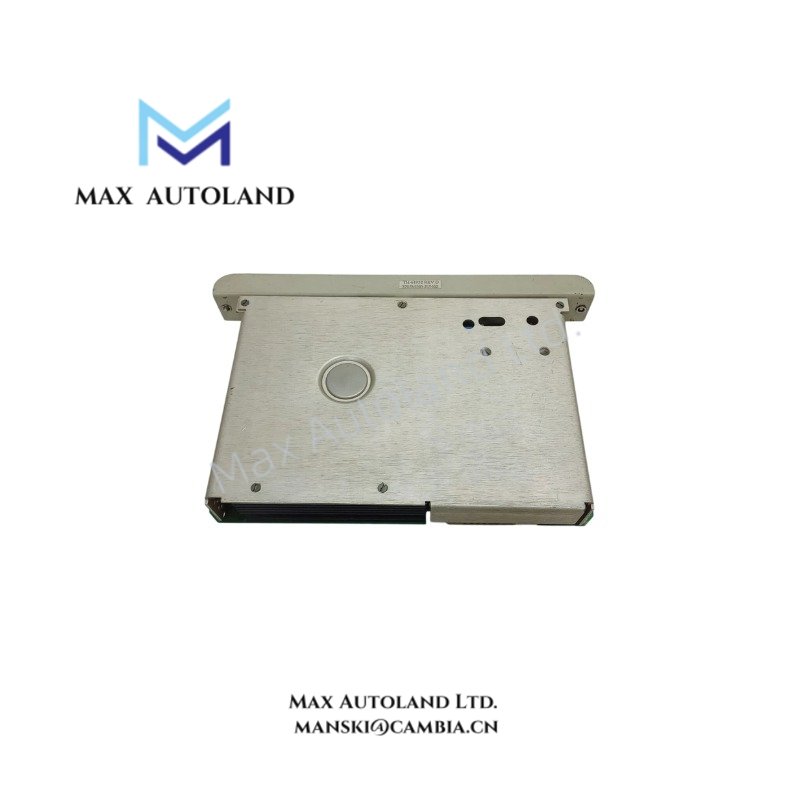

621-9934 IPC Power Supply Honeywell

Overview

TheHoneywell 621-9934serves as theprimary621-9934 IPC Power Supplyutilized to execute regulated DC power distribution across Honeywell ISSC 600 System backplane architectures. The module converts incoming system supply voltage into stabilized internal rails for IPC-level control electronics, supporting controlled power delivery with defined load separation and electrical isolation characteristics.

Suffix Breakdown & Model Matrix

No structured suffix segmentation is defined for Honeywell 621-9934. The model is treated as a single-order hardware identifier within the ISSC 600 IPC power subsystem.

Hardware Specifications

Channel-to-Channel Isolation & Power Rail Segmentation

Within the Honeywell ISSC 600 IPC architecture, the 621-9934 power supply implements internal electrical separation between output regulation stages and backplane distribution paths. This design reduces coupling effects between load domains and maintains stable voltage rails under dynamic IPC module insertion conditions. The power conditioning stage supports regulated output behavior under mixed digital and control electronics loading, where transient suppression and load step response characteristics are managed at the supply regulation level rather than at downstream modules.

Frequently Asked Questions

Q: Can the 621-9934 be hot-swapped in an active ISSC 600 backplane?
A: Hot-swap capability depends on system backplane design. The power supply should only be replaced under controlled power-down conditions unless the chassis explicitly supports live module exchange.

Q: Does the module provide isolation between input and output rails?
A: The power conversion stage includes internal electrical separation between input supply and regulated output rails, intended to reduce backplane noise coupling.

Q: What type of load behavior is supported on the IPC power rail?
A: The module is designed for mixed digital control loads with transient response handling under variable IPC module insertion and removal conditions.

Field Installation Guidelines

Ensure system power is fully isolated before inserting or removing the 621-9934 module from the ISSC 600 chassis. Verify backplane connector alignment prior to seating to avoid pin stress or partial engagement. Maintain proper grounding of the rack frame to minimize potential differences between module chassis and system earth reference. Avoid routing high-current cabling in parallel with low-level signal backplane wiring to reduce induced noise coupling into adjacent IPC modules. Confirm mechanical locking of the module before re-energizing the system.
