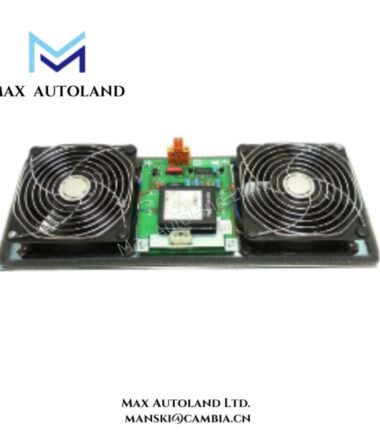

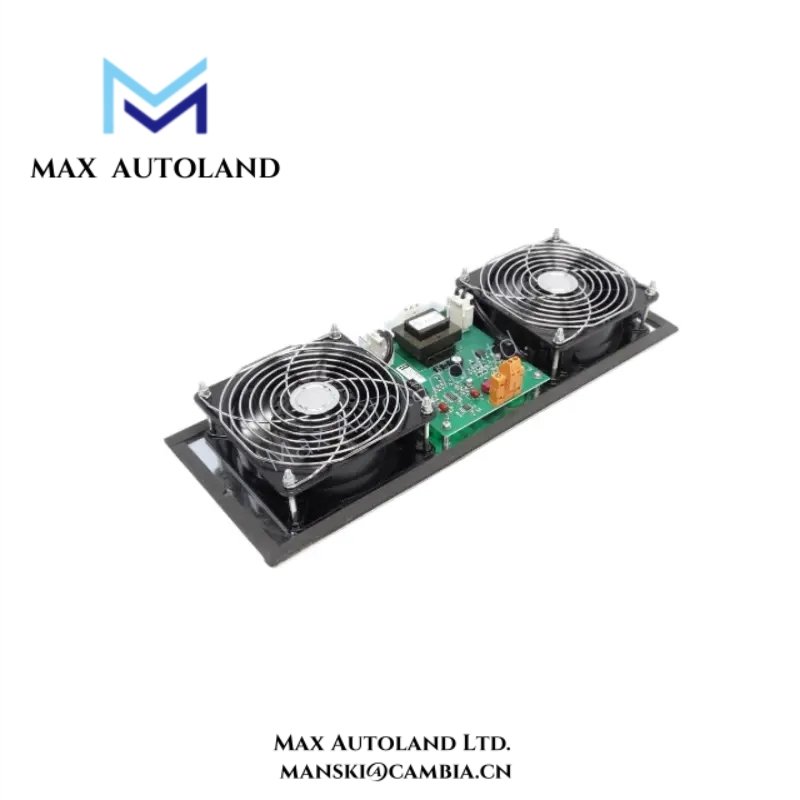

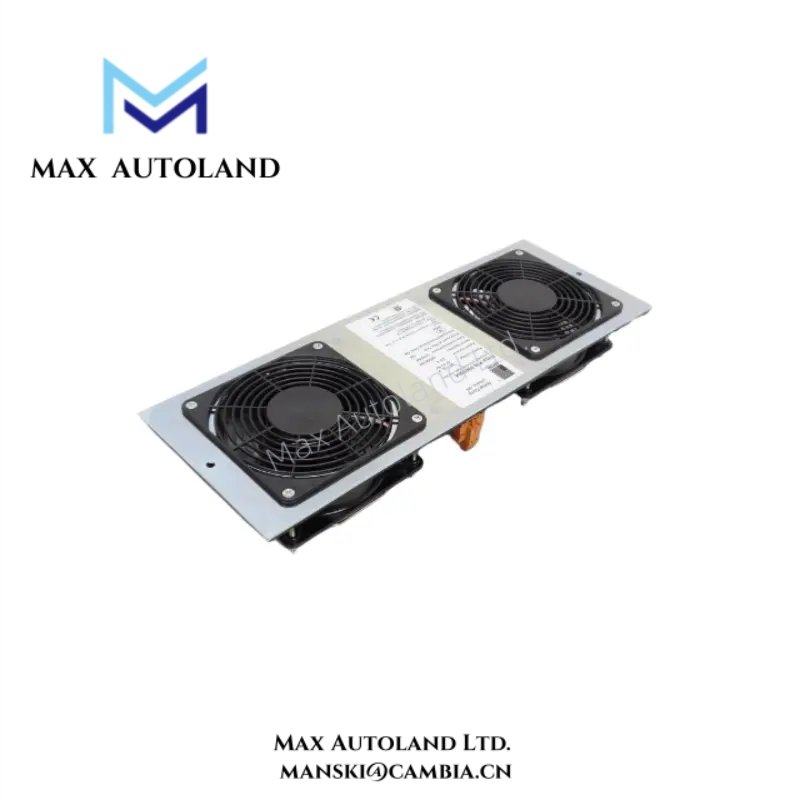

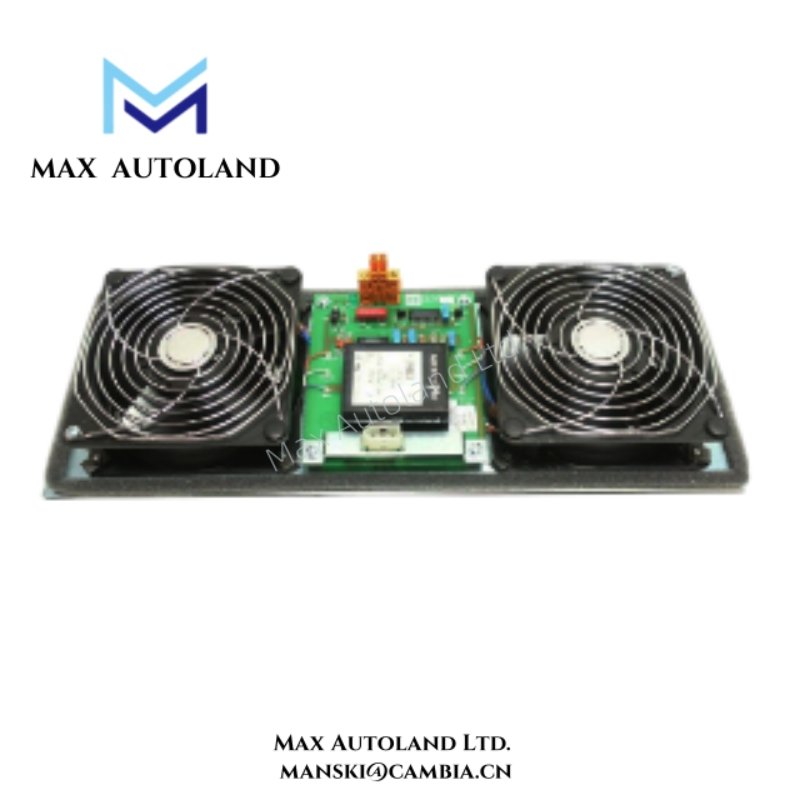

Overview
Specification
| Parameter | Details |
|---|---|
| Model Number | 51303940-200 |
| Type | Cabinet Fan Assembly with Alarm |
| Fan Voltage | 115/230 V AC, 50/60 Hz |
| Airflow | 45–50 CFM typical |
| Noise Level | 45 dB(A) typical |
| Alarm Type | Visual and/or remote signal output for fan failure |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Mounting | Standard panel mount in industrial enclosures |
| Protection Rating | IP20 typical |
| Power Consumption | 10–15 W typical |
| Material | High-durability plastic housing with metal fan blades |
| Applications | Industrial cabinets, control panels, automation enclosures |
FAQ
Q1: What voltage does the fan assembly operate on?
A1: The fan operates on 115/230 V AC at 50/60 Hz, compatible with standard industrial power sources.
Q2: How does the alarm notify operators of fan failure?
A2: The integrated alarm provides visual indication and can trigger remote signal outputs for monitoring systems.
Q3: Can the fan assembly be installed in tight enclosures?
A3: Yes, its compact design allows easy installation even in confined control cabinet spaces.
Q4: What maintenance is required?
A4: Inspecting fan operation, cleaning blades and filters periodically, and verifying alarm function ensures optimal performance.
Q5: What protection does it provide against dust or moisture?
A5: The assembly features IP20 protection, which guards against typical industrial dust ingress.
Q6: Is it compatible with third-party enclosures?
A6: Yes, it fits standard industrial panels and is compatible with both Honeywell and third-party cabinets.
