Overview
Specification
| Parameter | Specification | Notes / Details |
|---|---|---|

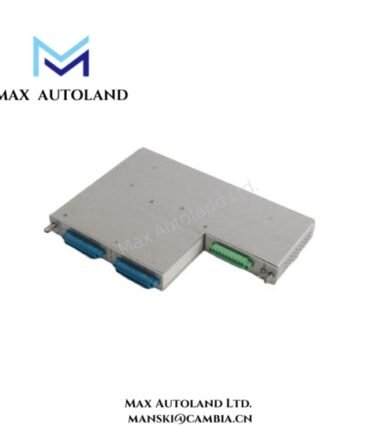

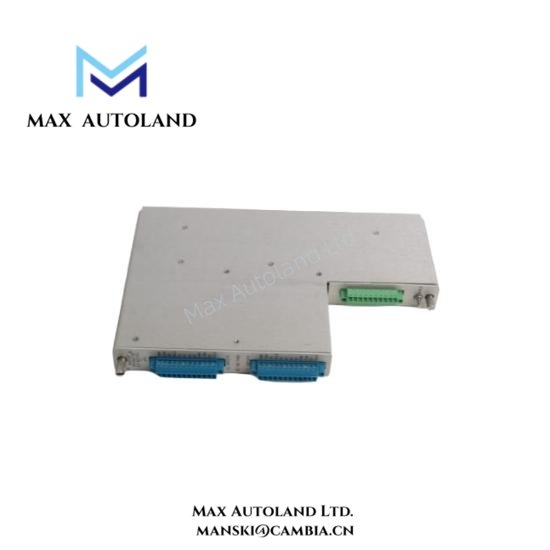

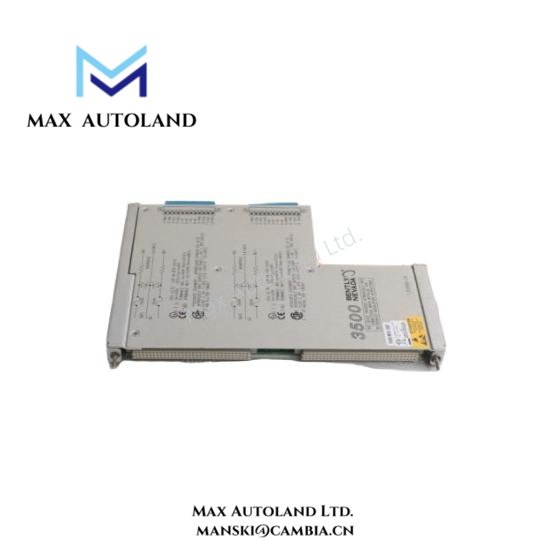

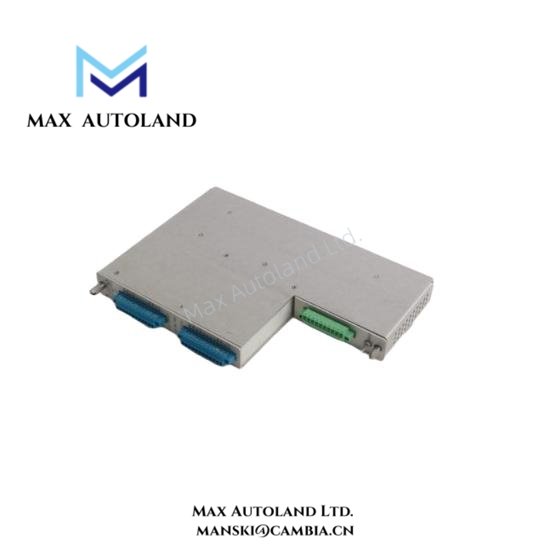

| Model | 3500/42 135489-01 | Full Bently Nevada part number |
| Series | 3500 Machinery Protection | Compatible with 3500 Series racks |
| Module Type | I/O Module with Internal Barriers | Ensures safe isolated signal transmission |
| Input Channels | 4 | Proximitor or seismic sensor inputs |
| Input Signal Range | 0–100 mV typical | Standard proximitor sensor signals |
| Signal Conditioning | AC-coupled, differential | High rejection of electrical noise |
| Output | Configurable 4–20 mA | For alarm, control, or data acquisition |
| Power Supply | 24 VDC nominal | Operating range 18–32 VDC |
| Power Consumption | ≤ 6 W typical | Depends on connected sensors |
| LED Indicators | Channel and module status | Diagnostics and operational feedback |
| Mounting | 3500 Series Rack Mount | Standard 1-slot width module |
| Dimensions | 159 mm H × 25 mm W × 168 mm D | Standard 1-slot width |
| Weight | 0.85 kg | Lightweight, rack-friendly |
| Operating Temperature | -40°C to 70°C | Continuous industrial operation |
| Storage Temperature | -40°C to 85°C | Safe for transport and storage |
| Humidity | 5–95% non-condensing | IEC 60068-2-30 compliant |
| Shock | 30 g, 11 ms | IEC 60068-2-27 compliant |
| Vibration | 5–500 Hz, 2 g | IEC 60068-2-6 compliant |
| Electrical Isolation | 500 VAC between channels and power | Prevents interference |
| Typical Applications | Seismic, vibration, proximitor monitoring | Turbines, compressors, pumps |
FAQ
A1: Yes, the 3500/42 135489-01 is fully original and brand new from Bently Nevada.
Q2: How long does shipping typically take?
A2: Orders ship within 3–14 days depending on quantity and logistics via DHL, FedEx, or UPS.
Q3: How many input channels does this module support?
A3: It supports 4 input channels for proximitor or seismic sensors.
Q4: Can it operate in extreme industrial environments?
A4: Yes, it functions from -40°C to 70°C and handles 5–95% non-condensing humidity.
Q5: Is it compatible with 3500 Series racks?
A5: Yes, it mounts easily in standard 3500 Series racks with a 1-slot width.
Q6: What is the return policy for defective modules?
A6: Returns are supported within 30 days for defective or damaged units.
