Overview
When configured with two power supplies, the lower slot acts as the primary source, while the upper slot serves as a backup, providing automatic redundancy. Moreover, hot-swappable design allows replacement without interrupting system operation — a critical feature for demanding industrial environments.

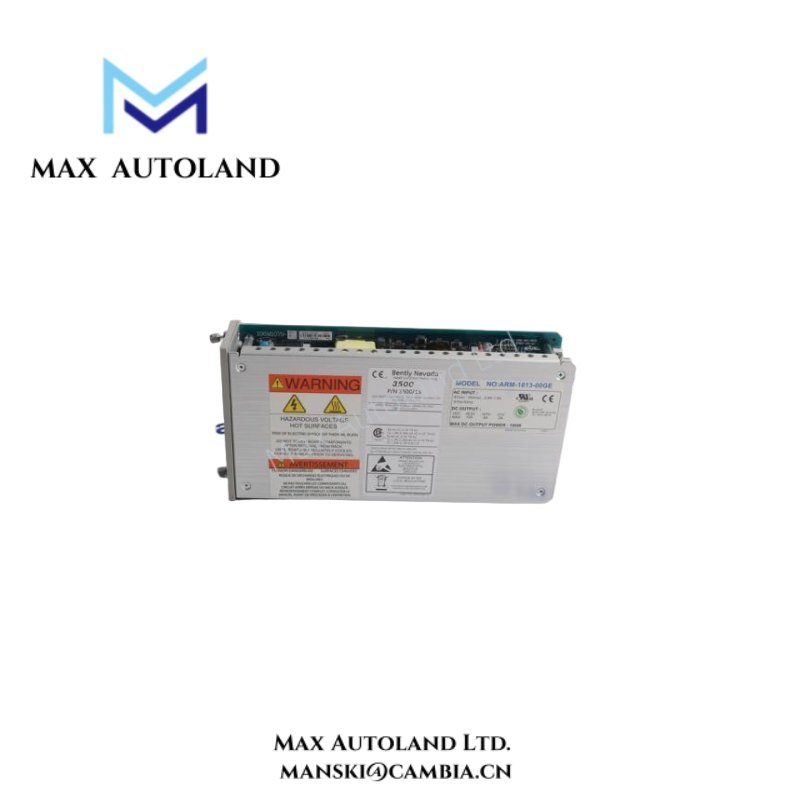

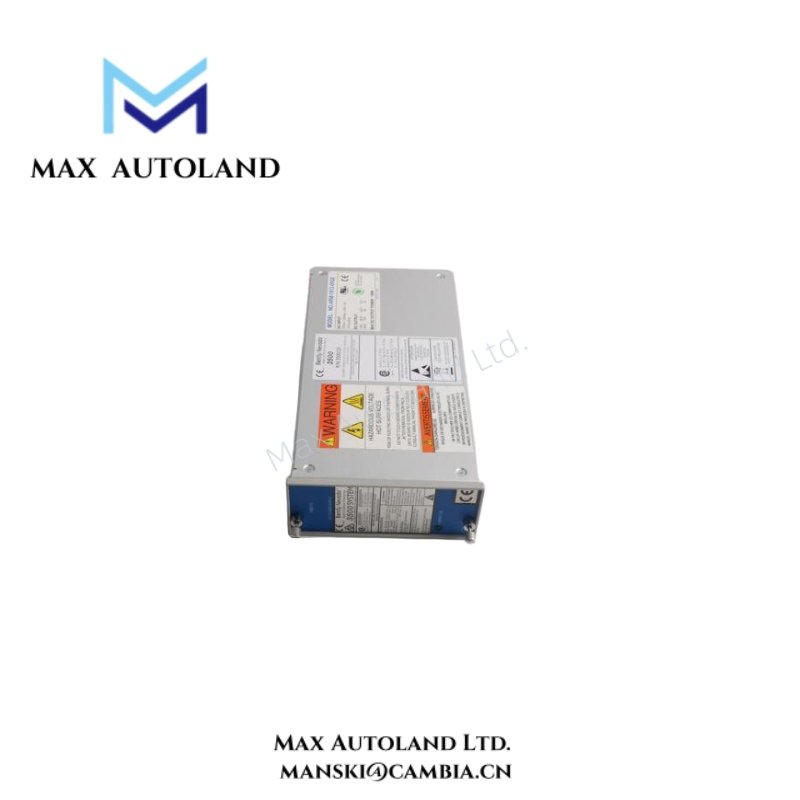

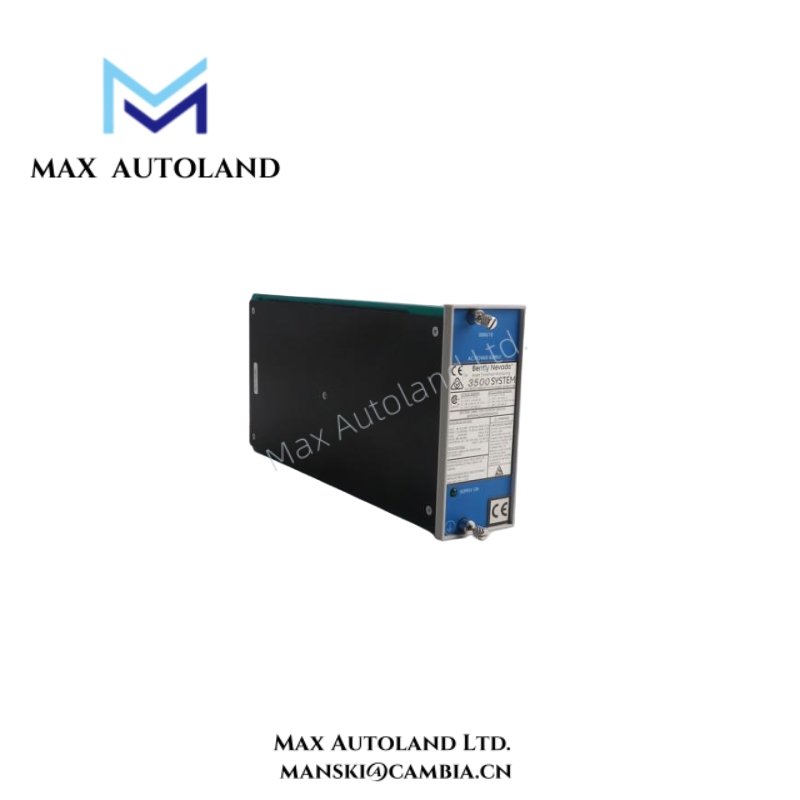

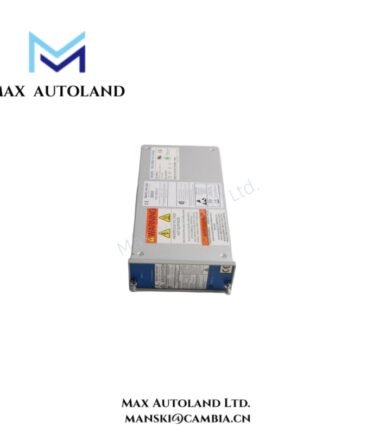

The Bently Nevada™ 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
Specification
| Parameter | Specification |
|---|---|
| Part Number | 3500/15 106M1079-01 |
| Product Type | Universal AC Power Supply Module |
| Compatible System | Bently Nevada 3500 Series |
| Input Voltage (Nominal) | 110–220 Vac |
| Input Voltage Range (Non-hazardous) | 85–264 Vac rms |
| Input Voltage Range (Hazardous) | 85–250 Vac rms (120–373 Vac pk) |
| Input Frequency | 47–63 Hz |
| Full Rack Current Draw | 2.8 A rms (maximum) |
| Power Supply Slots | Two half-height slots (left side of rack) |
| Redundancy | Dual configuration (primary and backup) |
| Output Monitoring | “Supply OK” LED indicator |
| Cooling | Natural convection, ventilated design |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Power Supply Module Dimensions | 120.7 × 50.8 × 251.5 mm (4.75 × 2.0 × 9.9 in) |
| Power Input Module Dimensions | 120.7 × 25.4 × 114.3 mm (4.75 × 1.0 × 4.5 in) |
| Weight (Power Supply) | 1.39 kg (3.06 lb) |
| Weight (Power Input Module) | 0.34 kg (0.75 lb) |
| Certifications | CE, FCC, EMC 2014/30/EU, RoHS 2011/65/EU |
FAQ
A1: Yes. A single 3500/15 can power an entire rack, though dual supplies provide redundancy.
Q2: What happens if one power supply fails?
A2: The backup power supply automatically takes over, ensuring uninterrupted rack operation.
Q3: Is it compatible with DC power configurations?
A3: No, the 106M1079-01 version is designed for universal AC power input only.
Q4: Can I replace the power supply while the rack is running?
A4: Yes, the 3500/15 is hot-swappable, allowing safe replacement without disrupting operations.
Q5: What environmental conditions can it handle?
A5: The module operates reliably between -30°C and +65°C with up to 95% humidity.
