Overview
Specification
| Parameter | Specification | Notes |
|---|---|---|

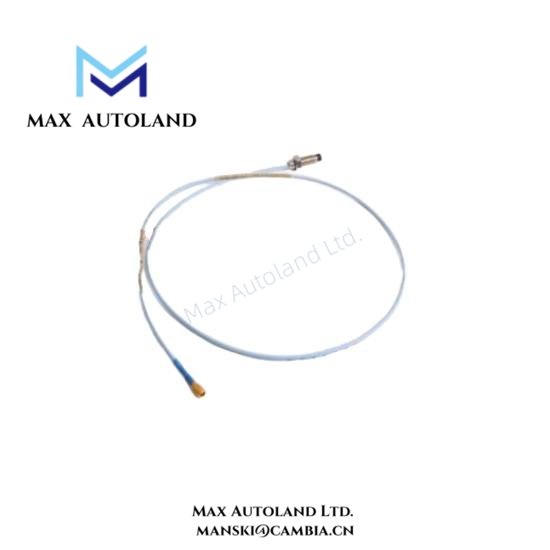

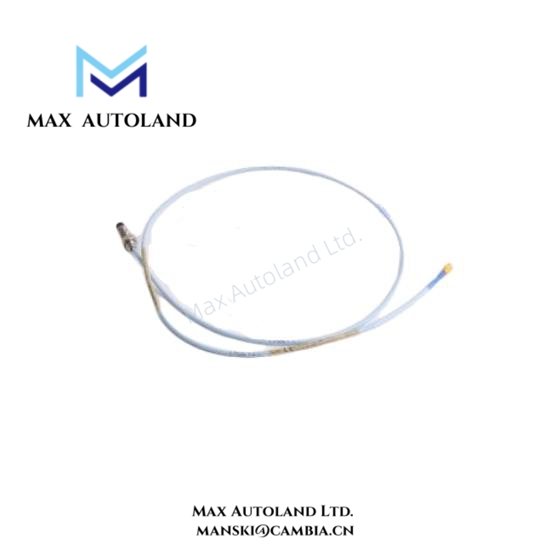

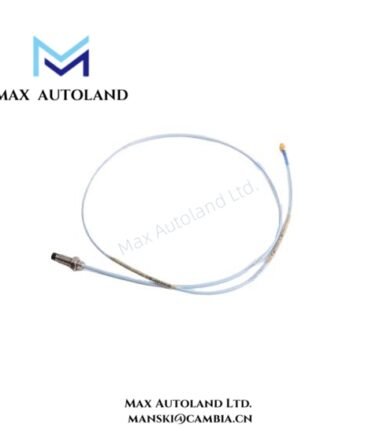

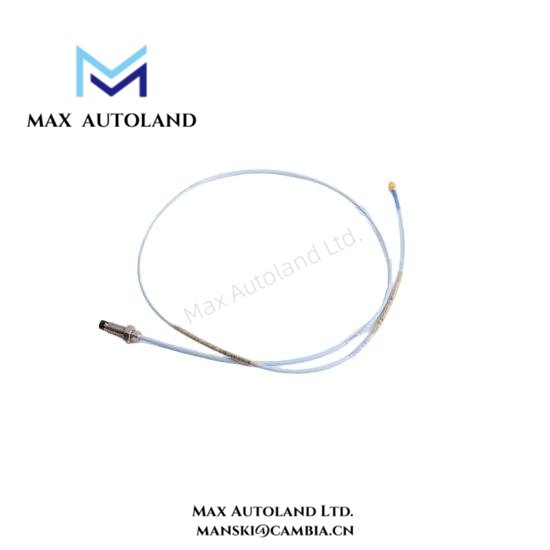

| Model Number | 330101-00-14-10-02-00 | Standard Bently Nevada 3300 XL probe |
| Probe Type | Proximity transducer | Measures shaft vibration and position |
| Sensing Gap | 8 mm nominal | Optimal for precise displacement measurement |
| Target Material | Conductive metal (standard) | Ensure proper signal output |
| Operating Temperature Range | -40°C to 125°C (-40°F to 257°F) | Suitable for industrial environments |
| Electrical Connector | 2-pin industrial connector | Standard connection for 3300 XL systems |
| Cable Length | Customizable | Specify length at order; standard lengths available |
| Vibration Resistance | 50 g peak | Withstands high vibration conditions |
| Shock Resistance | 50 g peak | Resists mechanical shocks during operation |
| Monitoring Compatibility | Bently Nevada 3300 XL system | Integrates seamlessly for continuous monitoring |
| Output Signal | AC differential voltage | Provides accurate real-time shaft position |
| Mounting Style | Threaded or clamp (depending on application) | Flexible installation options |
| Housing Material | Stainless steel | Corrosion-resistant and rugged construction |
| Service Life | >10 years typical | Designed for long-term reliability in harsh environments |
FAQ
A1: Yes, the 330101-00-14-10-02-00 probe is fully compatible with all standard 3300 XL monitors.
Q2: Can it operate in high-temperature environments?
A2: Yes, it supports temperatures up to 125°C (257°F) without performance loss.
Q3: What is the sensing range of this proximity transducer?
A3: The nominal sensing gap is 8 mm, ideal for precise shaft displacement measurements.
Q4: How durable is the probe in industrial settings?
A4: Designed for vibration, shock, and harsh chemical environments, it ensures extended operational reliability.
Q5: Can I customize the cable length?
A5: Yes, cable length is customizable based on installation requirements.
