Overview
Moreover, it forms a core component of the proven 3300 XL proximity transducer system.

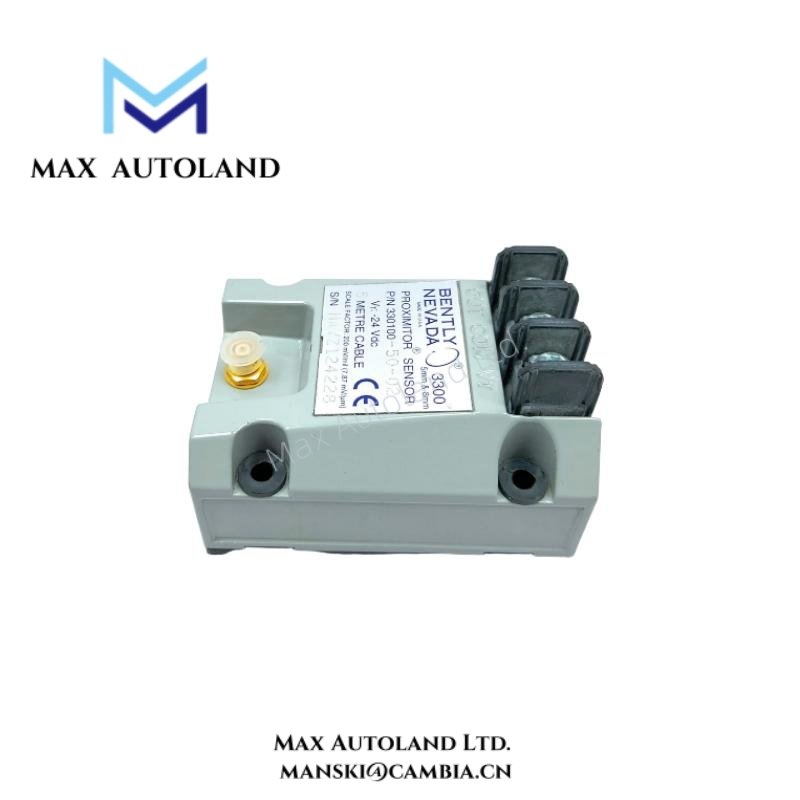

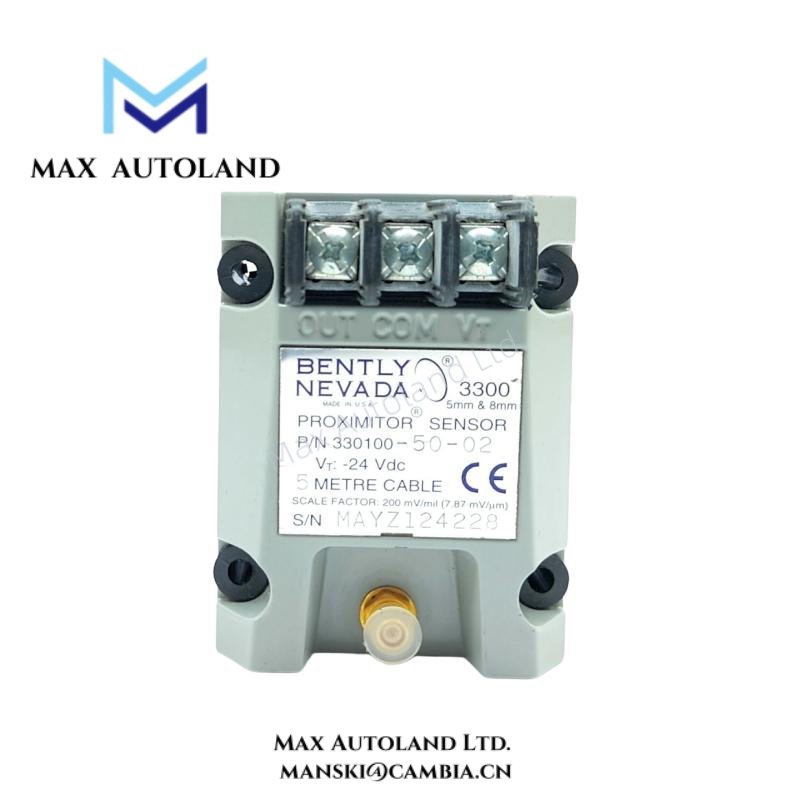

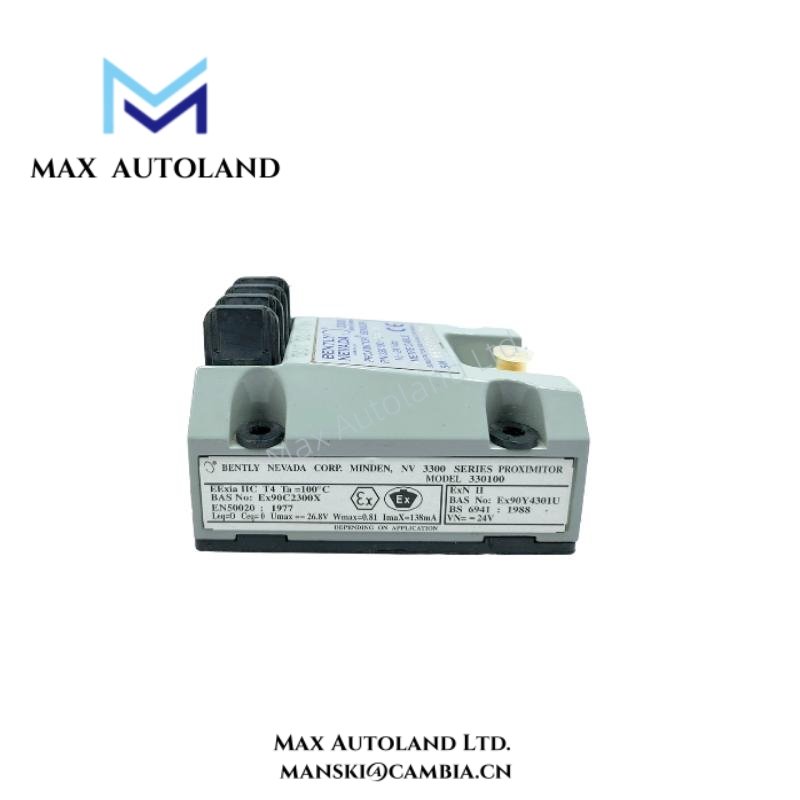

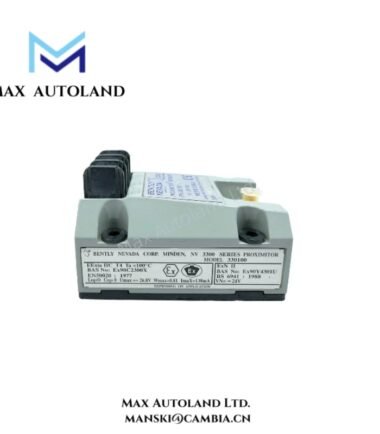

This Proximitor Sensor converts probe signals into standardized outputs for machinery protection and condition monitoring systems.
Therefore, it supports accurate vibration, position, and eccentricity measurements in demanding industrial environments.
Engineers worldwide trust the 3300 XL series for long-term stability, repeatability, and compliance with API machinery standards.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 330100-50-02 |
| Product Series | 3300 XL |
| Product Type | Proximitor Sensor / Proximity Transducer |
| Probe Size Compatibility | 8 mm proximity probes |
| Measurement Principle | Eddy current, non-contact displacement measurement |
| Typical Measurement Range | Up to 2 mm (80 mils), system dependent |
| System Components | Probe, extension cable, and Proximitor Sensor |
| Output Signal | -24 Vdc to -17 Vdc proportional output |
| Sensitivity | 7.87 V/mm (200 mV/mil), nominal |
| Linearity | Within specified system accuracy range |
| Frequency Response | Suitable for vibration and position monitoring |
| Power Supply Requirement | -24 Vdc nominal |
| Current Consumption | Low current design for continuous operation |
| Operating Temperature Range | -35 °C to +85 °C |
| Environmental Protection | Designed for industrial control environments |
| Mounting Method | DIN rail or panel mounting |
| Electrical Connection | Terminal block wiring |
| Compliance Standards | API 670 compliant when used in qualified systems |
| System Compatibility | Bently Nevada 3300 and compatible monitoring systems |
| Typical Service Life | Designed for long-term continuous industrial use |
FAQ
A1: It converts proximity probe signals into standardized outputs for shaft vibration and position monitoring systems.
Q2: Which probes are compatible with the 330100-50-02 sensor?
A2: This sensor is designed specifically for use with Bently Nevada 3300 XL 8 mm proximity probes.
Q3: Can this Proximitor Sensor be used for thrust position measurements?
A3: Yes, it supports axial position and thrust measurements when configured within a qualified monitoring system.
Q4: Is the 330100-50-02 compliant with API 670 standards?
A4: When used as part of a complete 3300 XL system, it meets applicable API 670 requirements.
Q5: Does this sensor require field calibration after installation?
A5: No, factory calibration ensures plug-and-play compatibility with approved probes and extension cables.
Q6: Is the 330100-50-02 suitable for continuous operation?
A6: Yes, it is engineered for continuous-duty operation in critical industrial machinery environments.
