Overview
Specification
| Specification | Details |
|---|---|
| Model Number | 330180‑50‑00 |

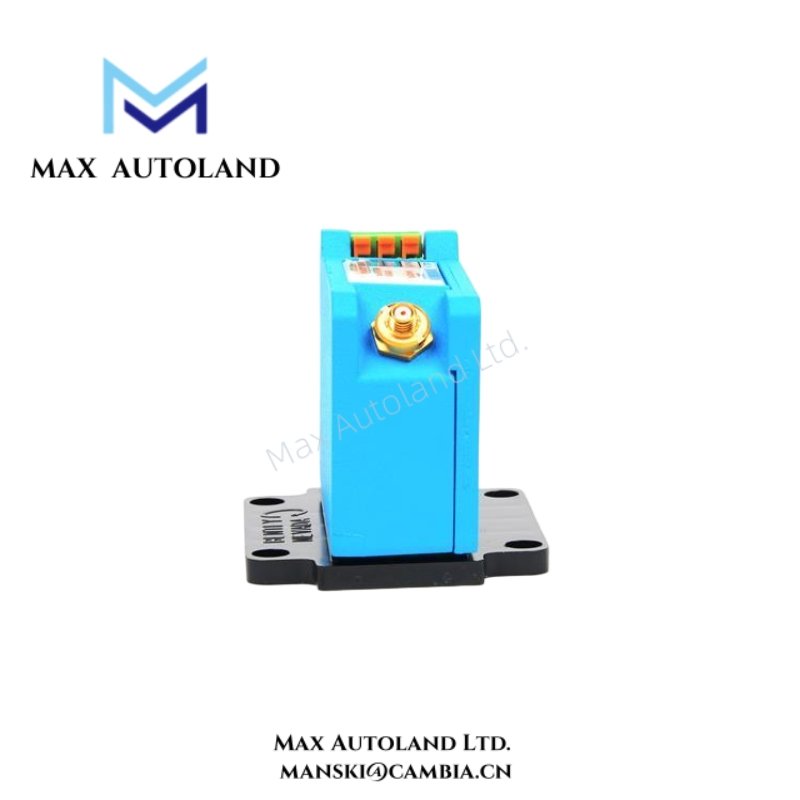

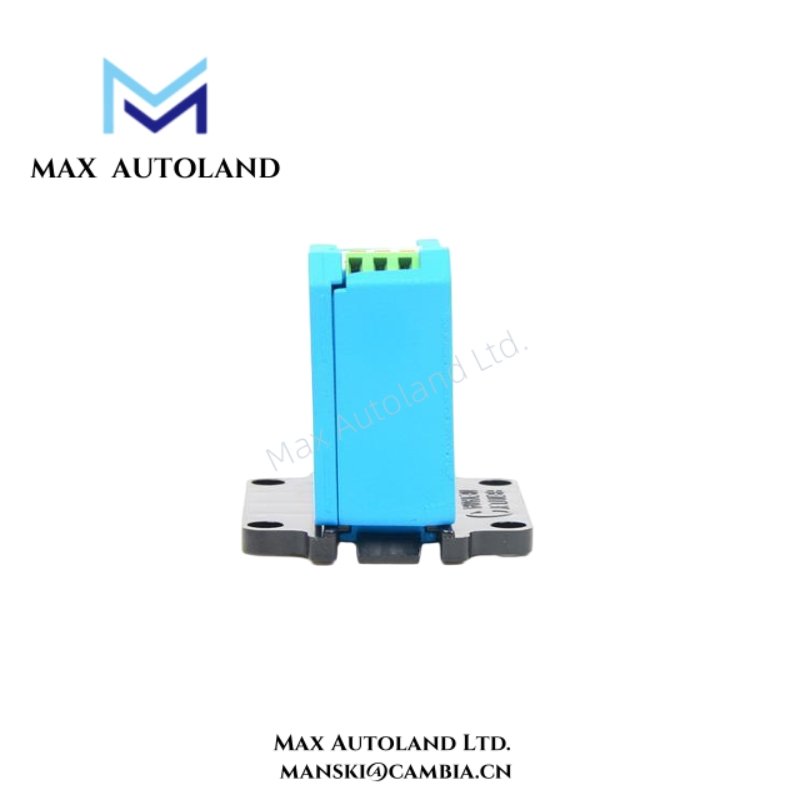

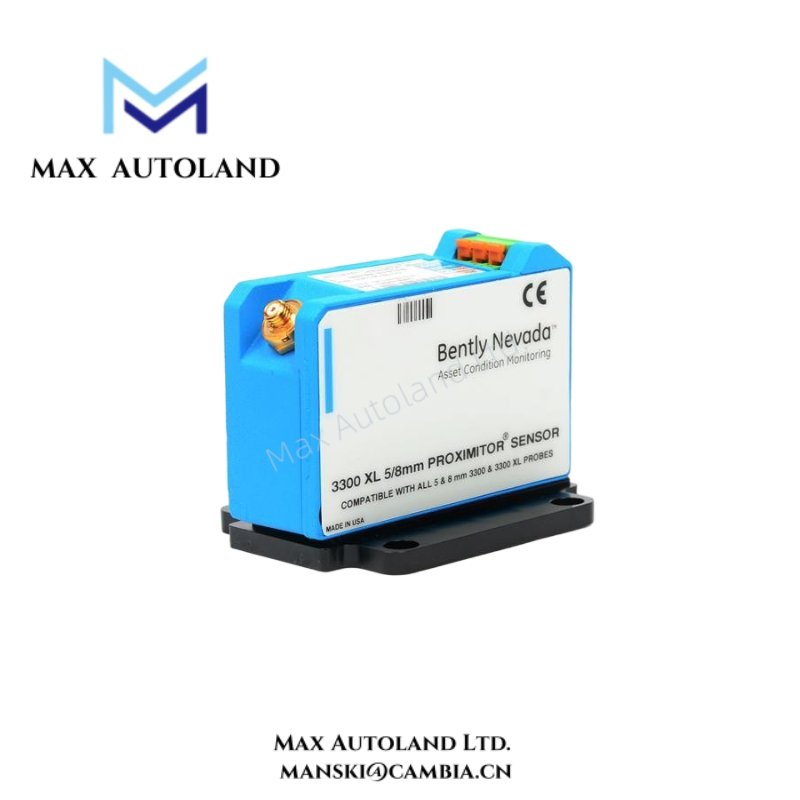

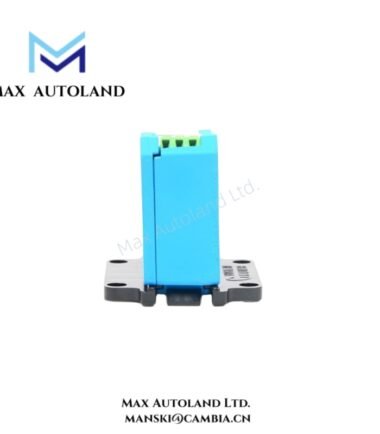

| Product Type | 8 mm Proximity Transducer Sensor |
| Series | 3300 XL Proximity Transducer System |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Measurement Principle | Eddy current non‑contacting displacement sensing |
| Measurement Range | 0 to 8 mm (0 to 0.315 in) |
| Compatible Probes | 3300‑series 5 mm and 8 mm probes, 3300 XL 8 mm probe |
| Power Supply | –17.5 Vdc to –26 Vdc (≤12 mA) without barrier |
| Barrier Power Option | –23 Vdc to –26 Vdc with safety barriers |
| Supply Sensitivity | <2 mV change per 1 V change in input voltage |
| Output Resistance | ~50 Ω |
| Signal Output | Analog voltage proportional to measured displacement |
| Total System Length | 5.0 meters (16.4 ft) including probe and cable |
| Mounting Option | Panel‑mount standard, optional DIN‑rail support |
| Recommended Probe Gap Setting | ~1.27 mm (50 mils) |
| Typical Linear Range | ~0.25–2.3 mm (~10–90 mils) depending on configuration |
| Operating Temperature | –40 °C to +100 °C (–40 °F to +212 °F) standard |
| Extended Probe Cable Temp | –52 °C to +260 °C (–62 °F to +500 °F) for certain cable variants |
| Humidity Resistance | <3 % ASF change at 93 % humidity (IEC standard) |
| Environmental Protection | RFI/EMI immunity, suitable for harsh industrial environments |
| Weight | ~246 g (8.67 oz) |
| Dimensions (Approx.) | ~81 × 61 × 63 mm (~3.2 × 2.4 × 2.5 in) |
| Target Material | Conductive metal surfaces |
| Application Type | Vibration & position monitoring |
| Country of Origin | USA |
| Warranty | Typically 12 months (varies by supplier) |
FAQ
A1: The 330180-50-00 provides an 8 mm linear measurement range for precise shaft displacement monitoring.
Q2: Which systems is this sensor compatible with?
A2: It is fully compatible with Bently Nevada 3300 XL monitoring systems.
Q3: Can this sensor operate in high-temperature environments?
A3: Yes, it operates reliably from –40°C to +120°C (–40°F to +248°F).
Q4: Is it suitable for vibration-prone machinery?
A4: Yes, it is designed for high-vibration industrial environments without signal degradation.
Q5: What type of target materials does it detect?
A5: The sensor is compatible with standard conductive metal targets.
Q6: How durable is the sensor for long-term operation?
A6: Its rugged construction ensures extended reliability and minimal maintenance requirements.
