Overview
Specification
| Specification | Details |
|---|---|
| Model Number | 136711‑01 |

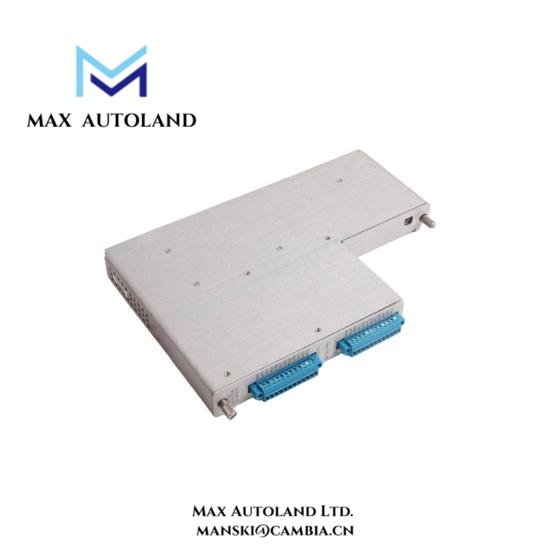

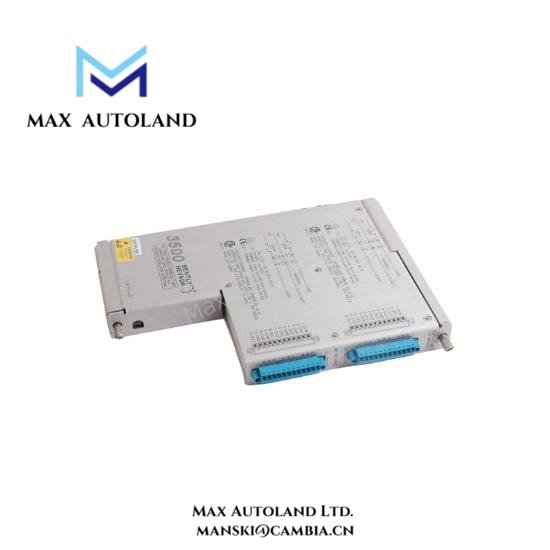

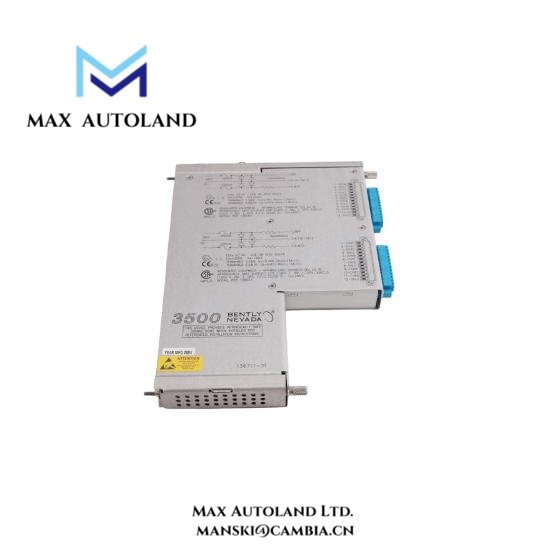

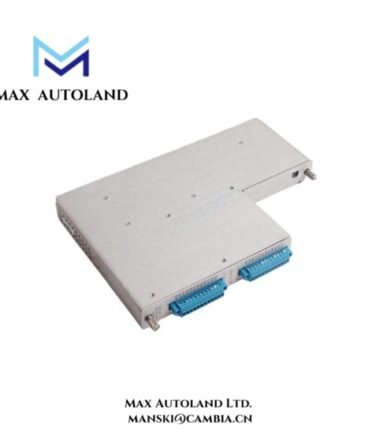

| Module Type | 3500/60 RTD/TC I/O Module with Internal Barriers & Terminations |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Input Types Supported | RTD (Resistance Temperature Detector) and Thermocouple (TC) inputs, including J, K, E, T types |
| Number of Channels | Up to 8 analog inputs, configurable for differential or single‑ended use |
| RTD Input Details | 4‑wire RTD support with excitation current; platinum RTD range −200 °C to +850 °C |
| Thermocouple Input Details | Supports multiple TC types; cold‑junction compensation on board |
| ADC Resolution | 16‑bit delta‑sigma analog‑to‑digital conversion |
| Sampling Rate | Up to ~2 samples per second per channel |
| Input Impedance | ~10 MΩ per lead |
| Internal Terminations | Precision internal termination resistors for RTD and TC |
| Internal Barriers | Intrinsic safety and isolation barriers integrated into module |
| Power Consumption | Approximately 7 W via 3500 backplane |
| Environmental Ratings | Operating −30 °C to +65 °C; internal barriers may affect limit range |
| Isolation | ~500 Vdc system and ~250 Vdc channel‑to‑channel isolation |
| Agency Certifications | CSA/NRTL/C Class 1, Division 2 (optional) |
| Dimensions (Approx.) | ~241 mm × 24 mm × 163 mm (9.5″ × 0.96″ × 6.4″) |
| Weight | ~0.46 kg (1 lb) |
| Mechanical Construction | Rugged metal chassis with internal barriers and terminations |
| Typical Applications | Temperature monitoring for turbines, compressors, and critical machinery in industrial environments |
FAQ
A: The module supports both RTD (Resistance Temperature Detector) and thermocouple inputs.Q2: Can it reduce field wiring requirements?
A: Yes, internal barriers and terminations minimize wiring complexity and installation time.
Q3: Is it compatible with existing 3500 series racks?
A: Yes, it integrates seamlessly with Bently Nevada 3500 series racks.
Q4: Can modules be replaced without system shutdown?
A: Yes, it allows tool-free insertion and removal, reducing system downtime.
Q5: What environmental conditions can the module withstand?
A: It operates reliably under industrial temperature, vibration, and humidity conditions.
Q6: Does Bently Nevada provide technical support for installation?
A: Yes, detailed manuals and technical assistance are available for system integration.
