Overview
Specification
| Parameter | Specification | Notes |
|---|---|---|

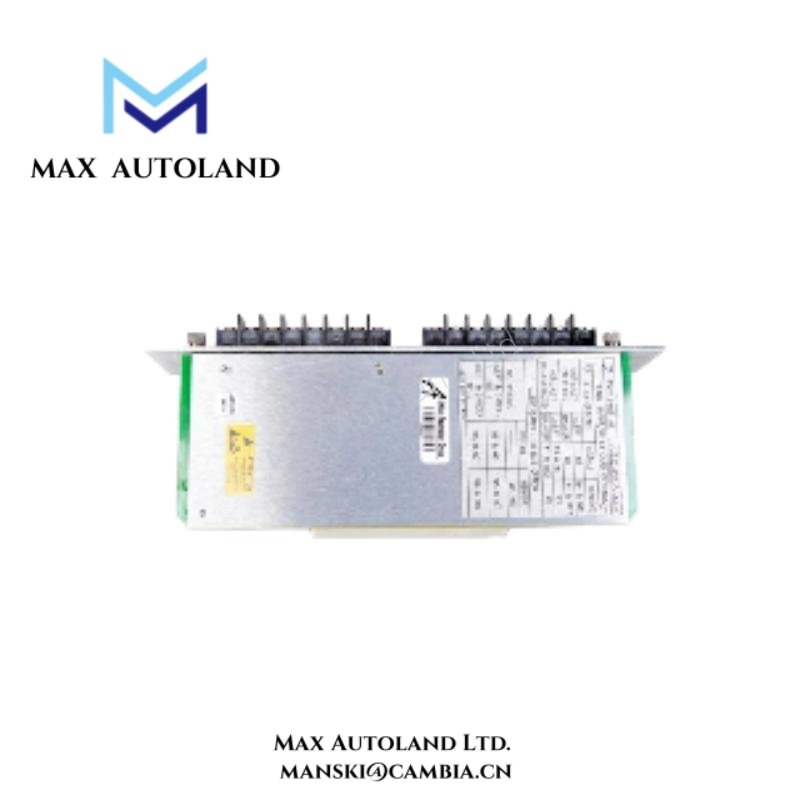

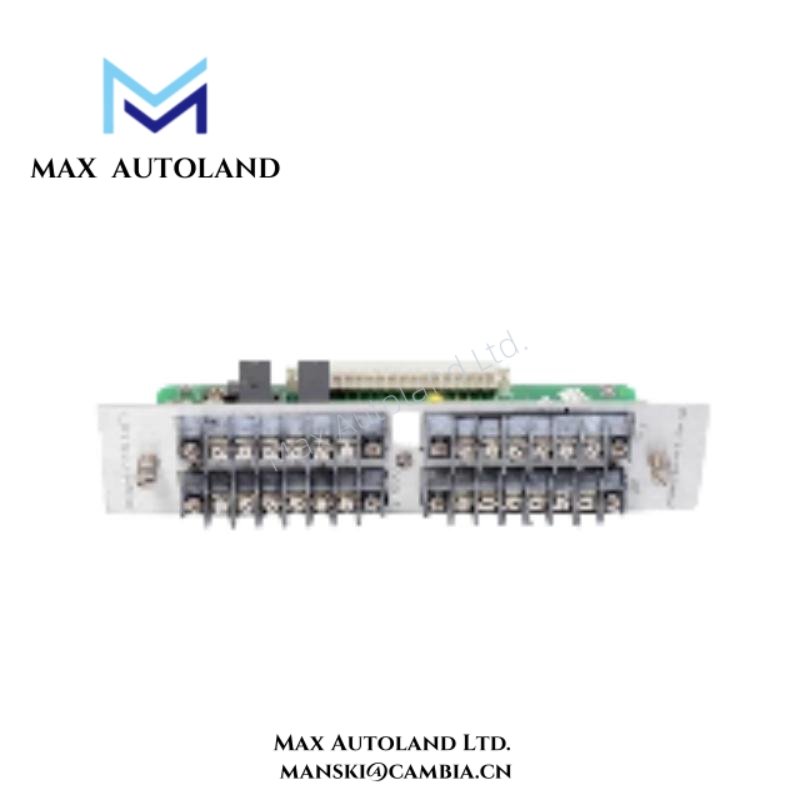

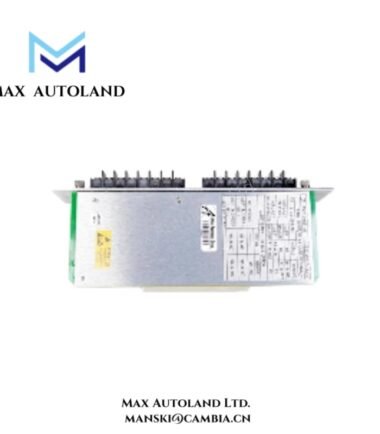

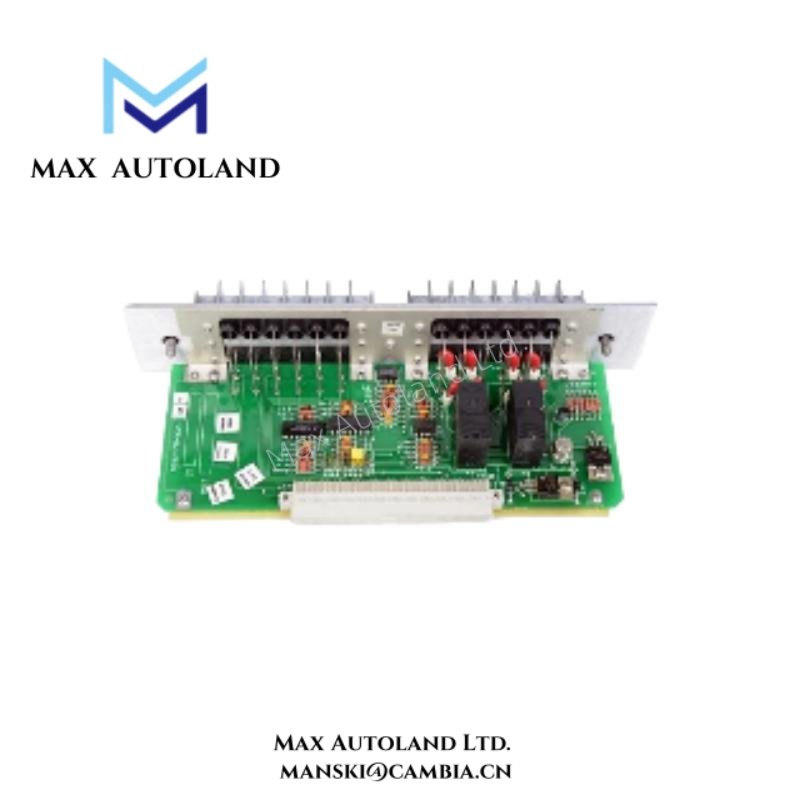

| Model | 122407-01 | RTD Input & Alarm Relay Outputs Module |
| Manufacturer | Bently Nevada | Part of 3500 Machinery Protection Systems |
| Module Type | RTD Input / Alarm Relay | Measures temperature and triggers alarms |
| RTD Input Range | -200°C to +850°C | Compatible with standard 100Ω Pt RTDs |
| Accuracy | ±0.1°C typical | Ensures precise temperature readings |
| Alarm Outputs | SPDT relays, 2 A @ 30 VDC | Supports multiple alert conditions |
| Input Power | 24 VDC | Operational range: 18–30 VDC |
| Response Time | <500 ms | Rapid detection of abnormal conditions |
| Operating Temperature | -20°C to +70°C | Industrial-grade performance |
| Storage Temperature | -40°C to +85°C | Maintains reliability during storage |
| Humidity | 5–95% non-condensing | Standard industrial specification |
| Mounting | DIN rail or panel mount | Flexible integration options |
| Dimensions (L×W×H) | 120 × 60 × 35 mm | Compact for easy system integration |
| Weight | 0.35 kg | Lightweight for installation convenience |
| Protection | Overvoltage, transient, and short-circuit | Ensures module safety and signal integrity |
| Compliance | CE, RoHS | Meets international safety and environmental standards |
FAQ
Q1: Is the 122407-01 module compatible with existing 3500 systems?
A1: Yes, it fully integrates with all standard Bently Nevada 3500 modules for seamless operation.
Q2: What is the typical delivery time for this module?
A2: We usually ship stock within 3–14 days, depending on order size and shipping method.
Q3: Can it handle extreme temperature environments?
A3: Yes, the module operates from -20°C to +70°C and can be stored from -40°C to +85°C.
Q4: What type of alarm outputs does it provide?
A4: The module includes SPDT relays rated 2 A at 30 VDC for multiple alert conditions.
Q5: Does it support standard RTD sensors?
A5: Yes, it is compatible with 100Ω Pt RTDs, supporting accurate industrial temperature measurement.
Q6: What if the product has a quality issue?
A6: We support a 30-day return policy for manufacturing defects or quality issues.
