Overview
Specification
| Specification Category | Details |
|---|---|
| Model Number | 330500-02-00 |

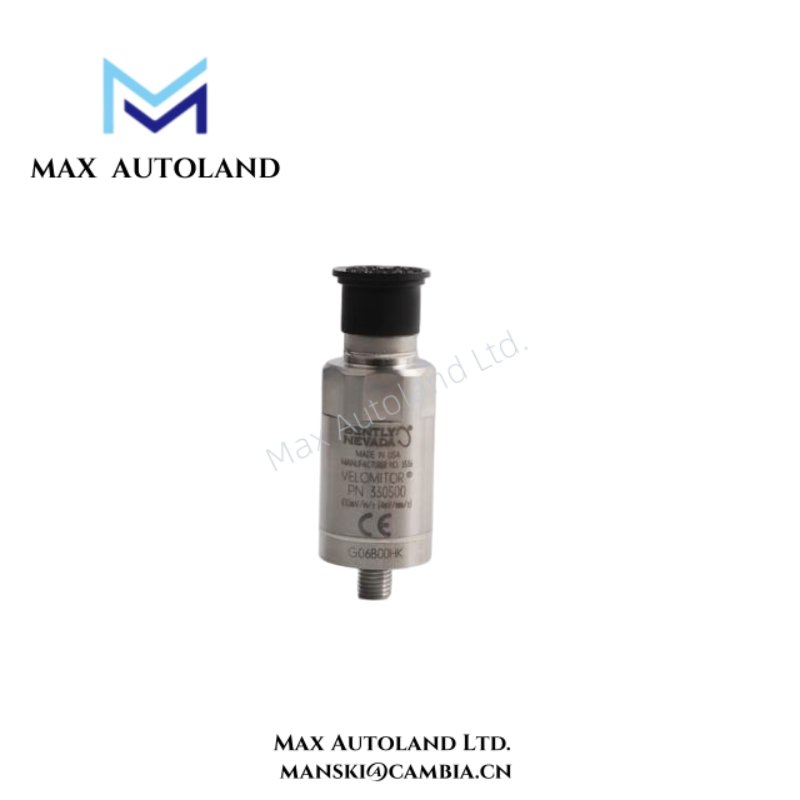

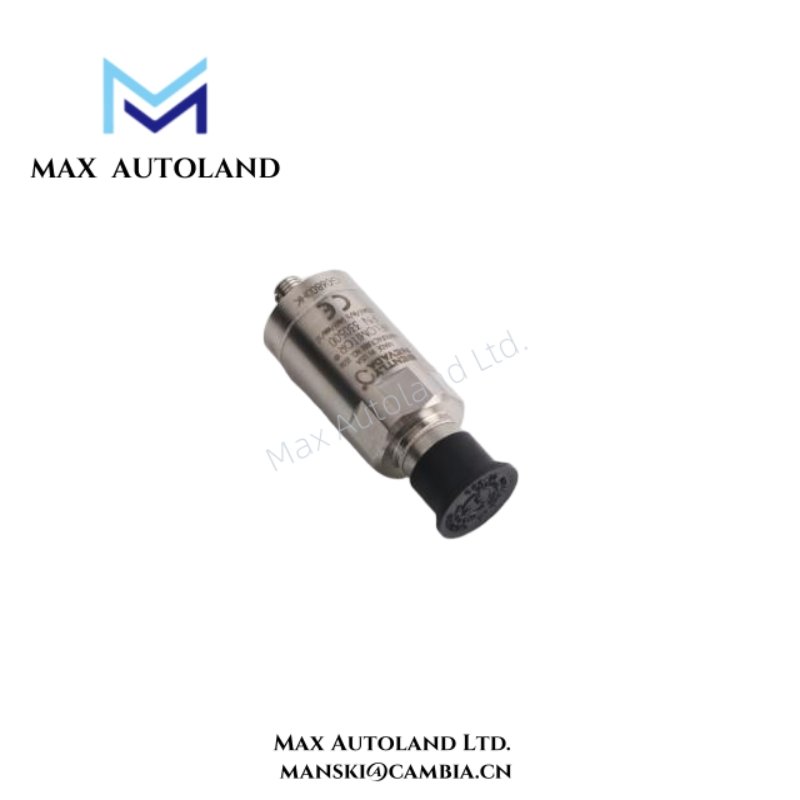

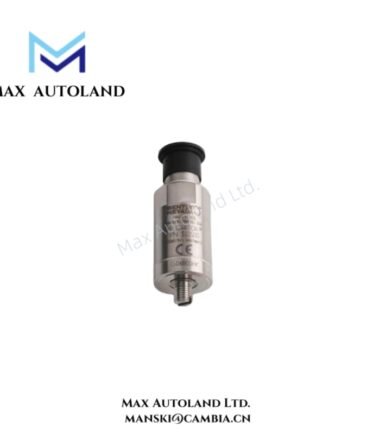

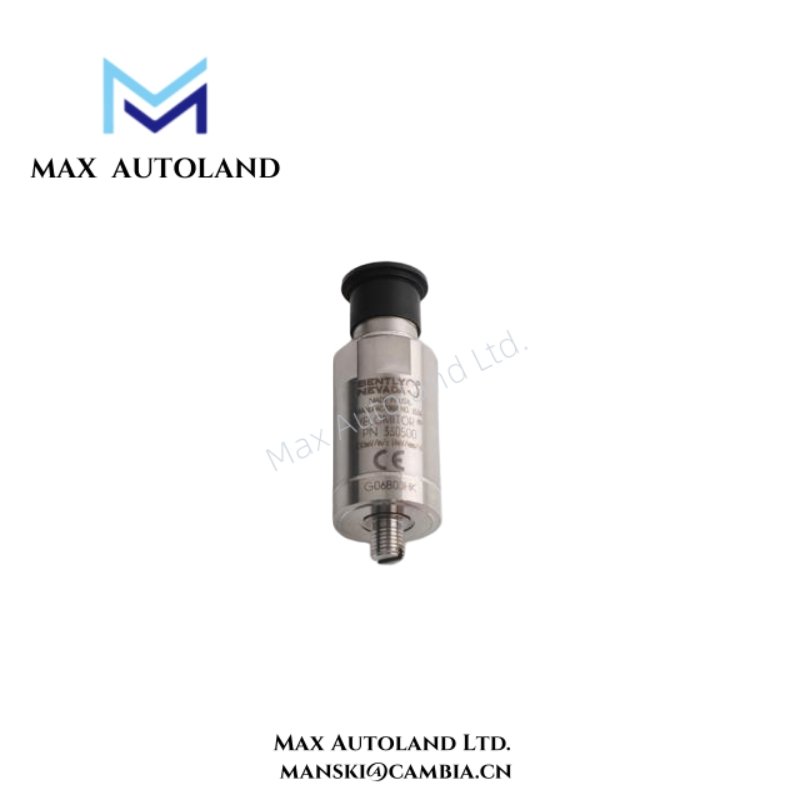

| Sensor Type | Piezoelectric velocity transducer (Velomitor) |
| Measurement Output | 4.5 mV/mm/s nominal (±5%) |
| Frequency Response | 10 Hz to 1,000 Hz (±3 dB) |
| Measurement Range | Up to 127 mm/s peak velocity |
| Sensing Element Material | Piezo-ceramic element with rugged mechanical housing |
| Directional Sensitivity | Axial direction, single-axis |
| Mounting Type | 1/4-28 UNF stud mount (standard) |
| Recommended Mounting Torque | 2.7 to 6.8 N·m |
| Operating Temperature | –40°C to +100°C |
| Storage Temperature | –55°C to +120°C |
| Humidity Rating | Suitable for high-moisture industrial environments |
| Environmental Protection | IP65-equivalent sealed housing |
| Body Material | Stainless steel or industrial-grade alloy |
| Cable Connection | 2-pin connector, compatible with Bently Nevada monitoring systems |
| Electrical Isolation | >10 MΩ insulation resistance |
| Shock Limit | 5,000 g peak |
| Vibration Limit | 500 g peak |
| Power Requirements | 18–30 Vdc supplied by Bently Nevada monitor |
| System Compatibility | Bently Nevada 3300, 3500, and 7200 series racks |
| Weight | Approx. 130 g |
| Compliance | Designed to meet API 670 vibration monitoring requirements |
| Approvals (Options) | ATEX, IECEx, CE (depending on model version) |
| Typical Cable Lengths | 3 m (standard) or extended options available |
FAQ
A1: Yes, it connects directly to both 3300 and 3500 monitoring platforms without signal conditioning modules.
Q2: Can this sensor withstand high vibration levels?
A2: Yes, its piezoelectric construction handles continuous industrial vibration, and it endures high shock loads.
Q3: What frequency range does the Velomitor sensor support?
A3: It typically covers 10 Hz to 1,000 Hz, providing broad coverage for rotating machinery.
Q4: Does the sensor require periodic recalibration?
A4: Not usually, because the solid-state design maintains long-term accuracy under stable installation conditions.
Q5: Can I mount the sensor in any orientation?
A5: Yes, various mounting thread options support flexible installation on horizontal and vertical surfaces.
Q6: Is it suitable for outdoor environments?
A6: Yes, the stainless-steel enclosure and internal shielding ensure reliable operation in harsh plant environments.
