Overview

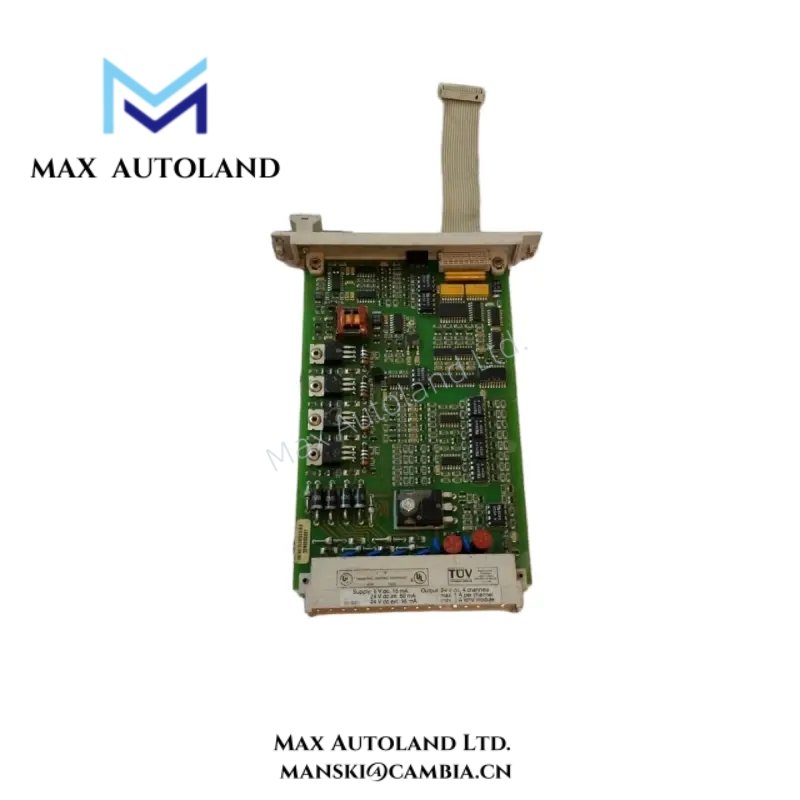

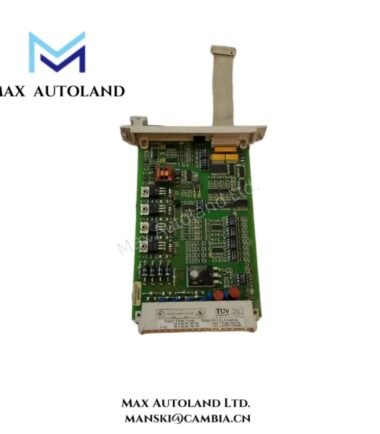

The Honeywell 10216/2/1 12400 is a fail-safe, loop-monitored digital output module for FSC Series safety systems.
It delivers deterministic control signals to safety actuators while continuously monitoring output loop integrity.
Moreover, the module ensures predictable behavior during normal operation and fault conditions.
Therefore, it plays a critical role in maintaining safe shutdown and emergency response strategies.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 10216/2/1 |
| Order Number | 12400 |
| Product Type | Fail-safe loop-monitored digital output module |
| Series | FSC Series |
| Output Channels | 16 digital outputs |
| Output Type | Fail-safe, loop-monitored |
| Nominal Output Voltage | 24 VDC |
| Output Current | Up to 500 mA per channel |
| Diagnostics | Open circuit, short circuit, line monitoring |
| Redundancy Support | Compatible with FSC redundant configurations |
| Hot Swap | Supported |
| Mounting | FSC system rack |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Environmental Protection | Industrial EMC immunity |
| Typical Industries | Oil & Gas, Chemical, Power, Process Automation |
FAQ
Q1: What is the main function of the 10216/2/1 module?
A1: It provides fail-safe, loop-monitored digital outputs for FSC Series safety systems.
Q2: How does loop monitoring improve safety?
A2: Moreover, it detects wiring faults such as open or short circuits before unsafe conditions occur.
Q3: Can this module be used in redundant FSC architectures?
A3: Yes, it fully supports redundant FSC configurations for high system availability.
Q4: Does the module support hot-swap replacement?
A4: Yes, engineers can replace it without interrupting overall FSC system operation.
Q5: Which field devices typically connect to this module?
A5: Shutdown valves, relays, contactors, and other safety-critical actuators commonly connect to it.
Q6: Which industries most frequently use this module?
A6: Oil and gas, chemical processing, power generation, and other safety-critical industries rely on it.
