Overview
Specification
| Parameter | Specification |
|---|---|

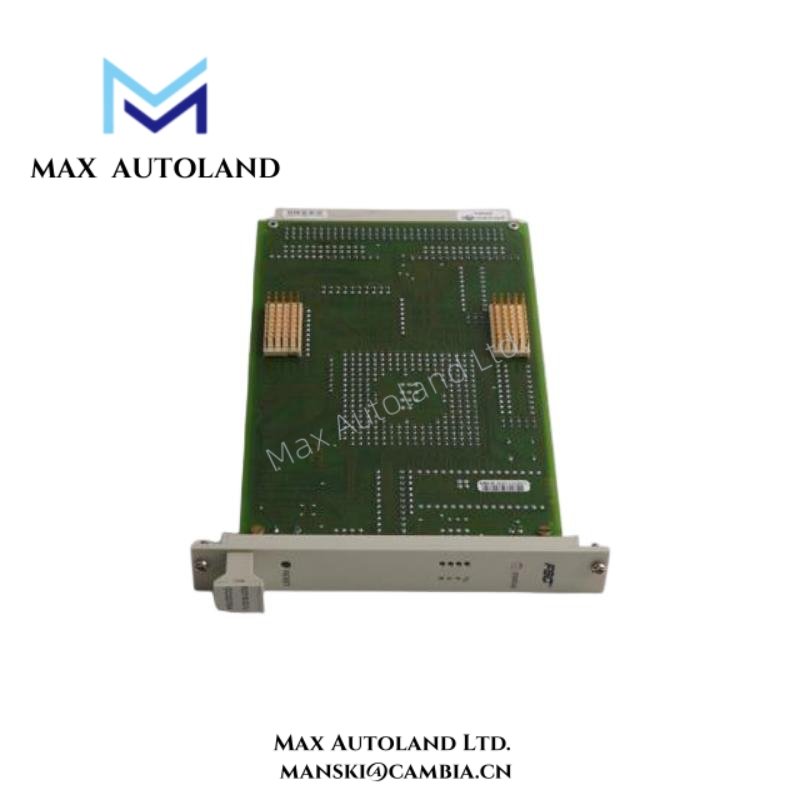

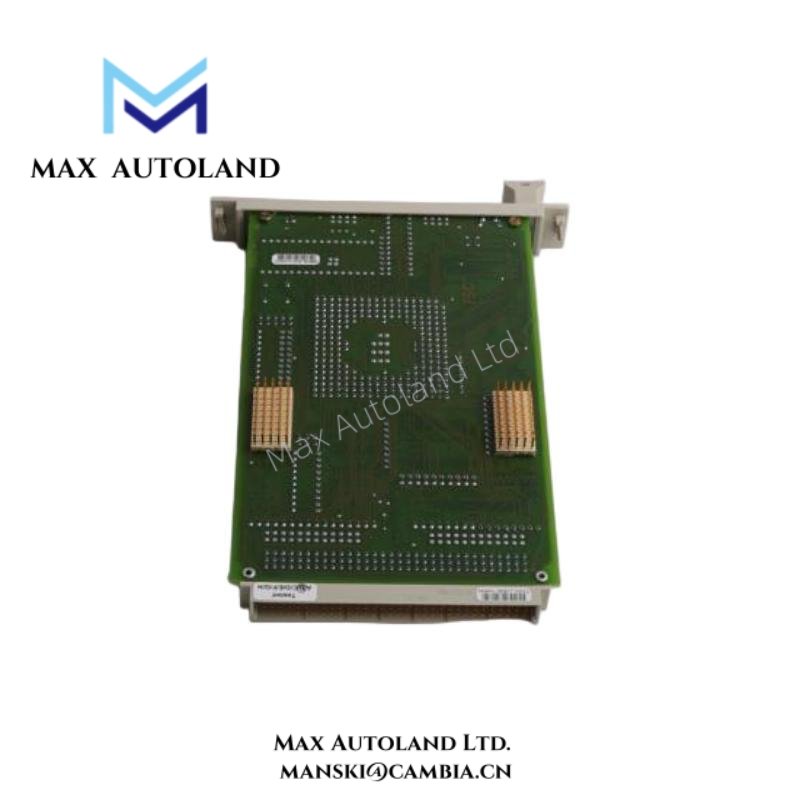

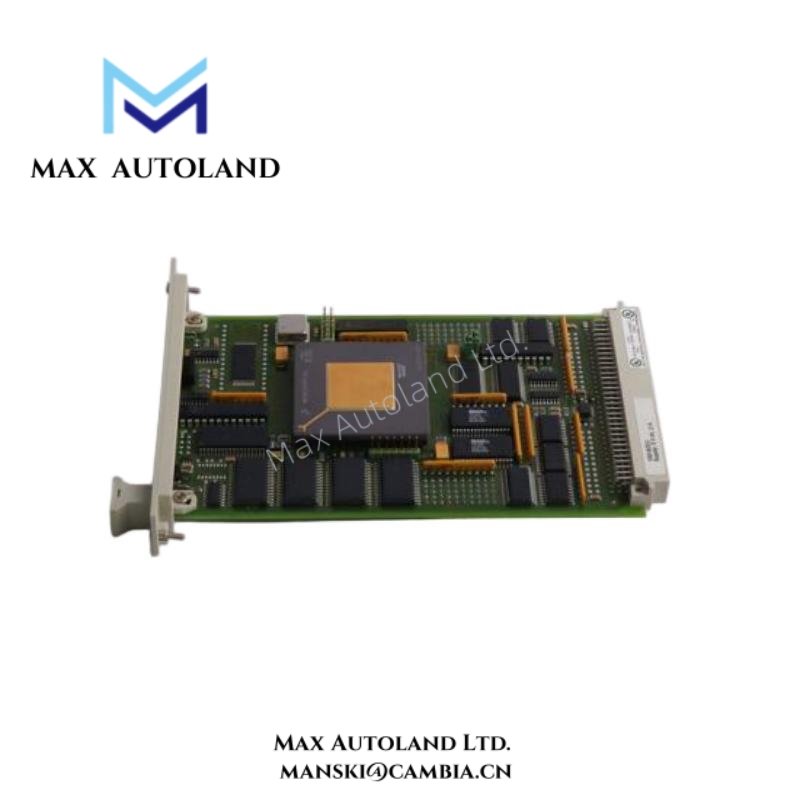

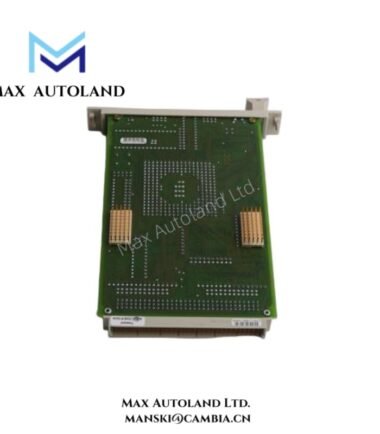

| Model | 10018/2/U |
| Module Type | Communication Module |
| Function | Facilitates FSC module and external system communication |
| Communication Interfaces | FSC bus interface, optional external network interfaces |
| Safety Compliance | SIL 2 / SIL 3 capable |
| Operating Voltage | 24 V DC nominal, 20–30 V DC operational range |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -50°C to +85°C (-58°F to +185°F) |
| Mounting | Standard FSC rack slot |
| Diagnostics | LED indicators for module and communication status |
| Response Time | Deterministic, <5 ms typical |
| Electromagnetic Compatibility | EN 61326-1 compliant |
| Shock & Vibration Resistance | 15 g shock; vibration 5–150 Hz compliant |
| Certifications | CE, SIL, FM approved |
FAQ
Q1: What is the main purpose of the 10018/2/U module?
A1: It enables reliable communication between FSC modules and external systems for safety-critical operations.
Q2: Is the module suitable for SIL-certified applications?
A2: Yes, it is SIL 2 / SIL 3 capable, supporting safety instrumented systems.
Q3: What types of communication interfaces are supported?
A3: The module supports FSC bus interfaces and optional external network connections.
Q4: Does the module provide diagnostics for troubleshooting?
A4: Yes, LED indicators show real-time status of both the module and communications.
Q5: What is the operating voltage range?
A5: The module operates reliably between 20–30 V DC, with a nominal 24 V DC.
Q6: What environmental conditions can the module withstand?
A6: It functions safely between -40°C and +70°C, and 5–95% non-condensing humidity.
