Overview

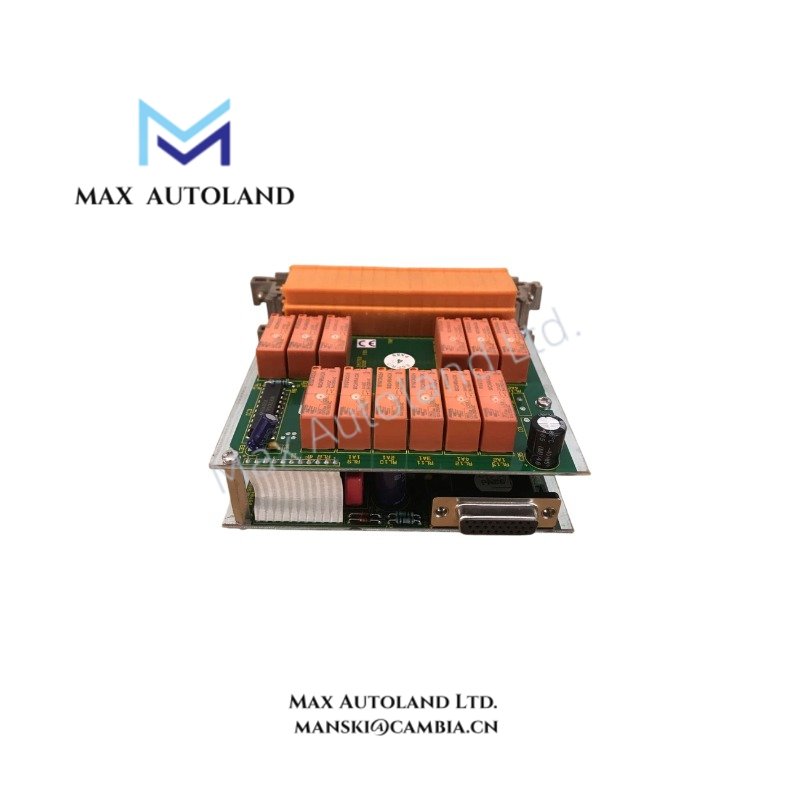

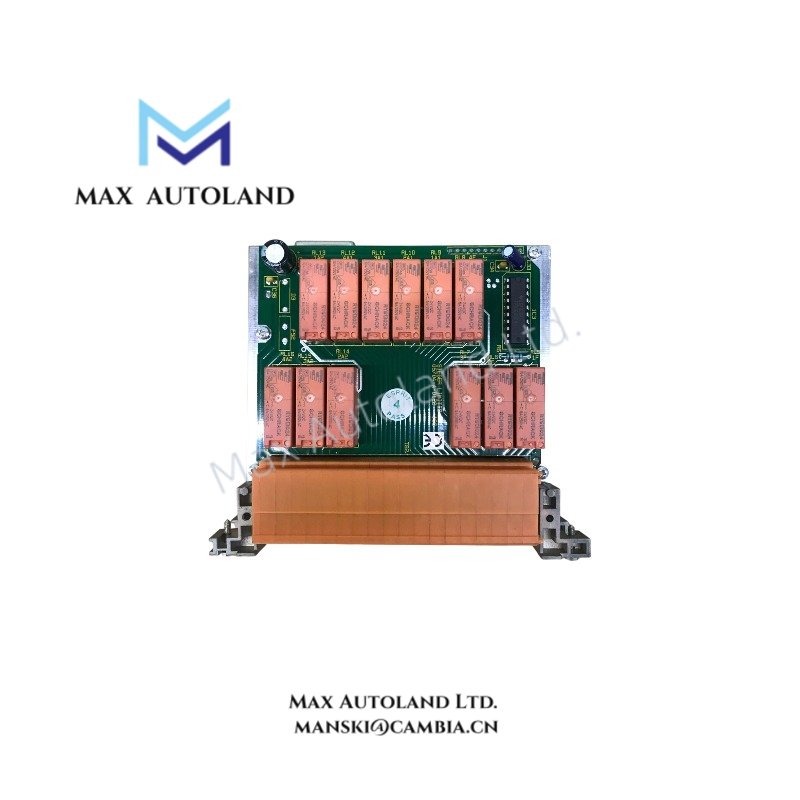

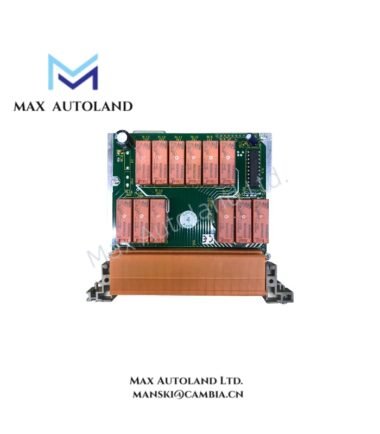

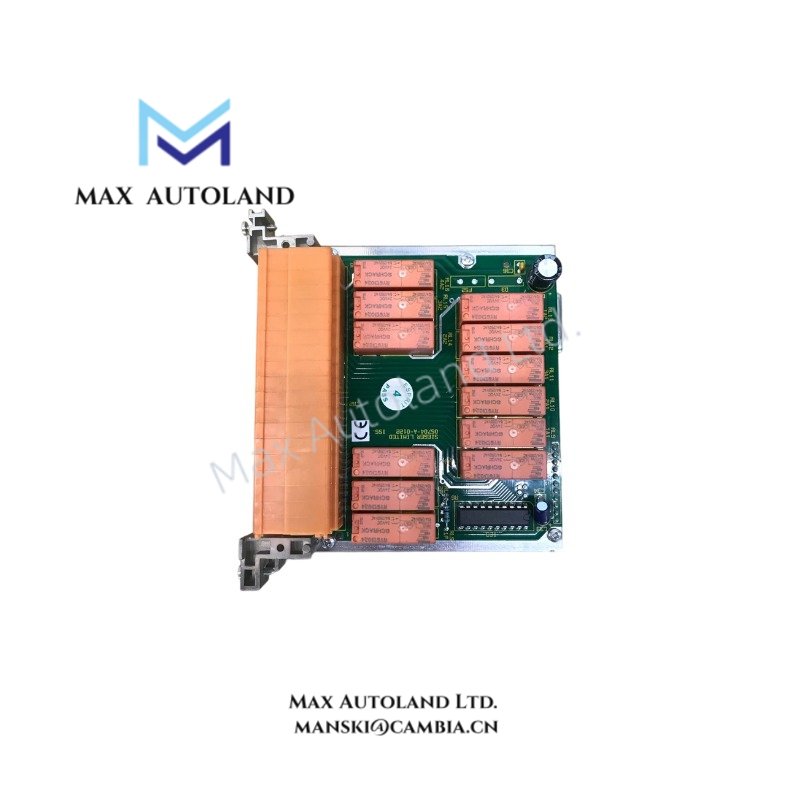

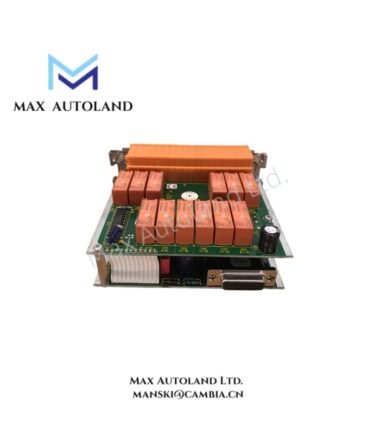

The Honeywell 05704-A-0121 also cataloged as the 05704A0121 Quad Relay Interface Card operates as a dedicated hardware component for relay signal conditioning and discrete output switching within the Honeywell Analytics System 57 rack architecture. Configured for multi-channel digital input-to-output relay execution in System 57 backplane environments, the Honeywell 05704-A-0121 provides direct physical/electrical execution through four independent SPCO relay paths derived from 24 VDC system supply and backplane distribution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| ModelBrand | Honeywell 05704-A-0121 |
| Origin | Honeywell Analytics (System 57 platform) |
| Weight | 0.22 kg |
| Dimensions | 11.8 x 13.1 x 2.4 cm |
| OperatingTemp | Not specified |
| PowerConsumption | Typical 1.0 W / Max 1.7 W |
| Product Type | Quad Relay Interface Card |
| System Compatibility | Honeywell System 57 (5704 series rack) |
| Relay Configuration | 4 x SPCO (Single Pole Change Over) |
| Electrical Supply | 24 VDC backplane derived |
| Contact Rating | 5 A @ 250 VAC / 5 A @ 32 VDC (non-inductive) |
| Wiring Interface | Terminal block, up to 2.5 mm2 conductors |
Channel-to-Channel Relay Isolation and Backplane Execution Behavior
Within the Honeywell System 57 architecture, the 05704-A-0121 implements discrete channel separation through independent relay poles, preventing cross-channel electrical coupling under normal operating conditions. Signal execution is performed via backplane-fed 24 VDC distribution, where each relay coil is driven individually from the rack logic layer. The module does not perform analog signal conditioning; instead it provides hard-contact switching suitable for external shutdown circuits, alarm annunciation, and actuator interfacing. Relay state integrity is maintained through mechanical isolation, with no shared return path between output channels.
Frequently Asked Questions
Q: Does the module support hot-swap insertion during live backplane operation?
A: Hot-swap capability is not specified for this module. Insertion under energized backplane conditions requires system-level isolation per rack design rules.
Q: Are relay outputs electrically isolated between channels?
A: Each SPCO relay is physically isolated; however, coil drive is referenced to the shared 24 VDC backplane supply.
Q: Can the card handle inductive load suppression internally?
A: No internal suppression is specified. External flyback or snubber circuits are required for inductive loads.
Field Installation Guidelines
Installation shall be performed with backplane power fully isolated. The module must be inserted into a compatible Honeywell System 57 rack slot ensuring full edge connector engagement with the Eurocard backplane interface. Field wiring shall use shielded conductors where external interference is possible, with shield termination performed at a single ground point to avoid loop current formation. Relay output terminals shall be tightened according to standard industrial torque practices for 2.5 mm2 conductors. Mechanical seating alignment must be verified to prevent partial connector engagement which may result in intermittent relay actuation.
