Overview

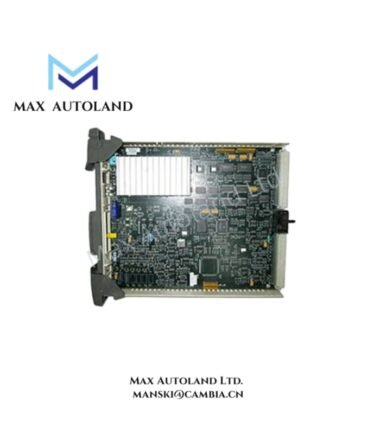

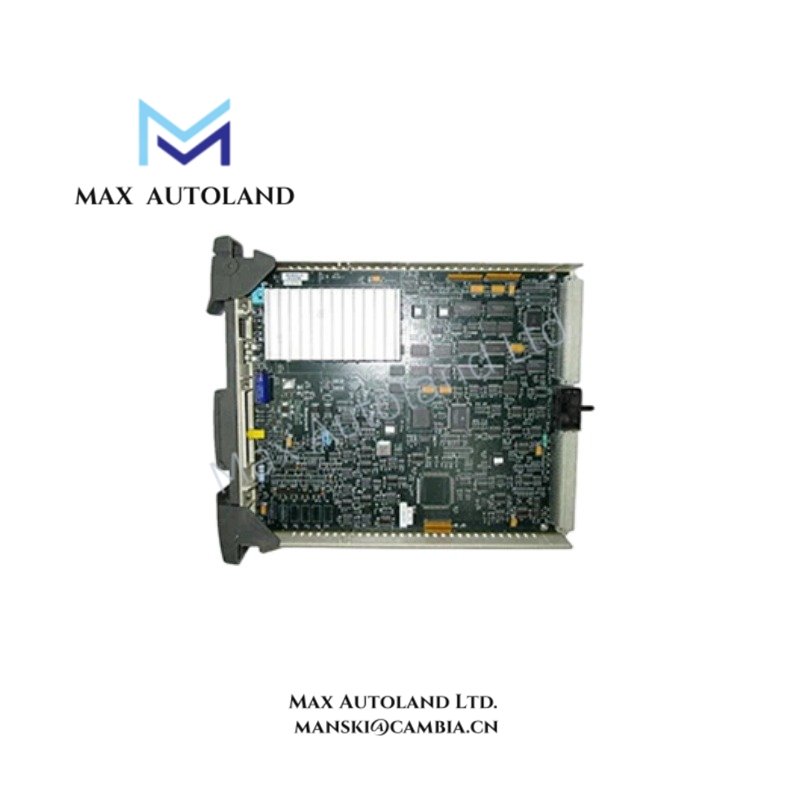

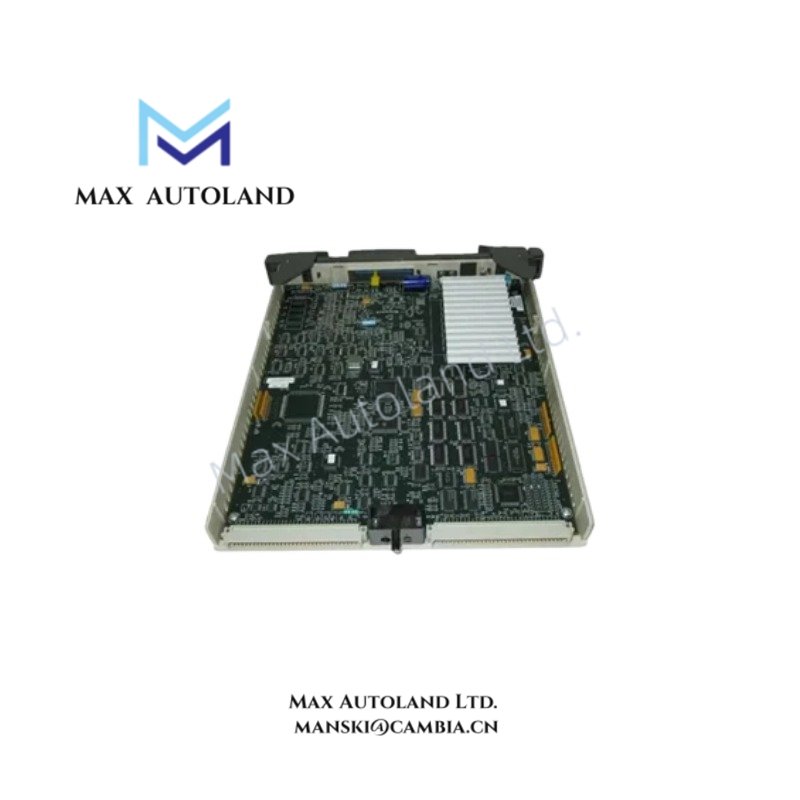

Configured for high-level analog signal acquisition in TDC 3000 / Experion PKS, the Honeywell 51196814-200 (51196814-200 High-Level Analog Input Module) provides direct physical and electrical execution for field signal digitization and backplane data transfer. The module conditions voltage and current inputs from external transmitters and converts them into controller-readable digital values through internal ADC processing and isolated channel interfaces.
Suffix Breakdown & Model Matrix
No validated manufacturer documentation is available for structured suffix decomposition of 51196814-200. The part number is treated as a single, fixed-order identifier within Honeywell legacy HLAI module catalogs.
Hardware Specifications
| Parameter | Specification |
|---|---|
| ModelBrand | Honeywell 51196814-200 |
| Origin | USA |
| Dimensions | Standard Honeywell rack-mounted HLAI module form factor |
| OperatingTemp | 0 degC to 60 degC |
| PowerConsumption | Backplane powered, low power dissipation (exact value not specified) |
| Input Channels | 8 or 16 channels depending on termination assembly |
| Signal Types | 1-5 VDC, 0-5 VDC, 0-10 VDC, 4-20 mA (via external shunt) |
| ADC Resolution | 12-bit to 16-bit class conversion |
| Isolation | Galvanic isolation up to 1500 VAC/DC channel-to-system |
| System Interface | TDC 3000 / Experion PKS backplane communication |
Honeywell Channel-to-Channel Isolation Architecture
The module implements channel isolation and signal separation across analog input paths to reduce cross-channel interference during multi-loop acquisition. In 4-20 mA loop interfacing, external shunt conversion is applied prior to ADC sampling, while internal isolation barriers prevent ground loop propagation into the controller backplane. Signal conditioning stages maintain separation between field wiring and logic-level processing domains, consistent with distributed control system (DCS) input design practices.
Frequently Asked Questions
Q1: Does the 51196814-200 support hot-swap replacement under load?
A1: Hot-swap capability depends on chassis implementation. The module itself is designed for rack insertion/removal, but system-level power and backplane architecture determine live replacement tolerance.
Q2: What backplane load characteristics apply to this module?
A2: The module is powered via system backplane supply. Current draw is distributed across internal logic and ADC stages, and is managed by the host I/O subsystem.
Q3: Are mixed voltage and current inputs supported simultaneously?
A3: Yes, provided external termination hardware is configured correctly. Voltage and 4-20 mA inputs are processed through separate conditioning paths before ADC conversion.
Field Installation Guidelines
Install the module only in a compatible Honeywell rack chassis designed for TDC 3000 / Experion PKS I/O subsystems. Ensure all field wiring is shielded and terminated according to analog signal grounding standards. Maintain separation between high-energy conductors and low-level analog input cabling to reduce inductive coupling.
For 4-20 mA loops, verify correct shunt resistor placement at the termination assembly prior to insertion. Ensure backplane connectors are fully seated to avoid intermittent ADC sampling faults. Grounding shall be implemented at a single point to prevent ground loop formation across channel isolation barriers.
