Overview
Specification
| Parameter | Specification |
|---|---|

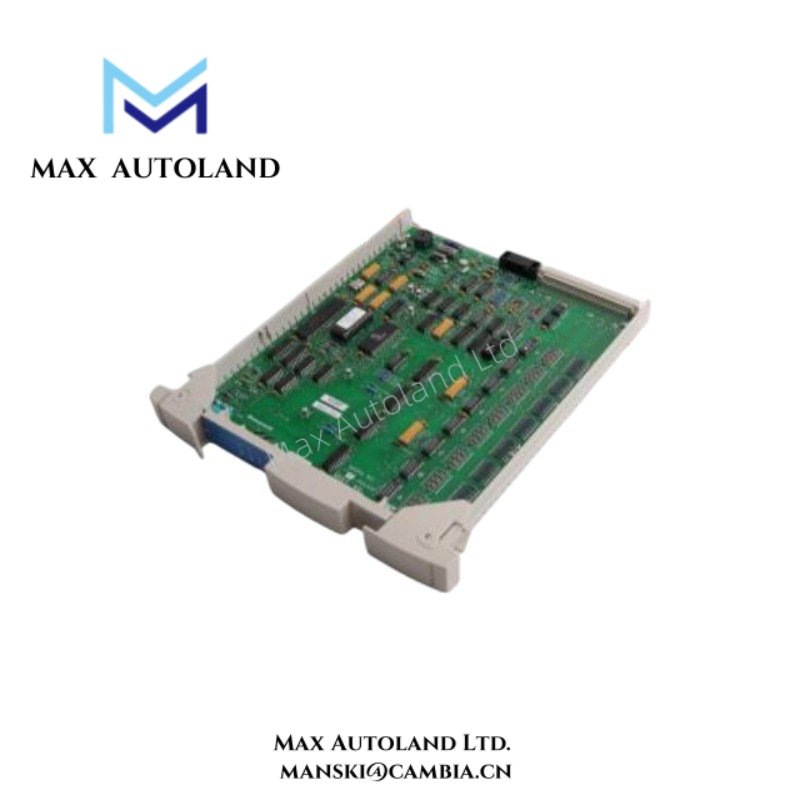

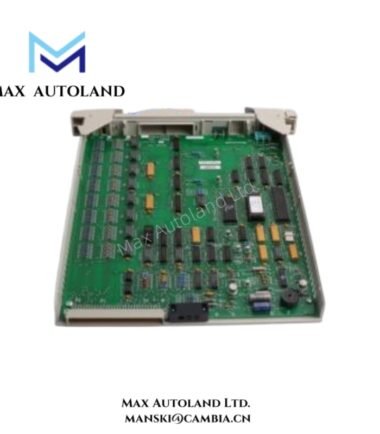

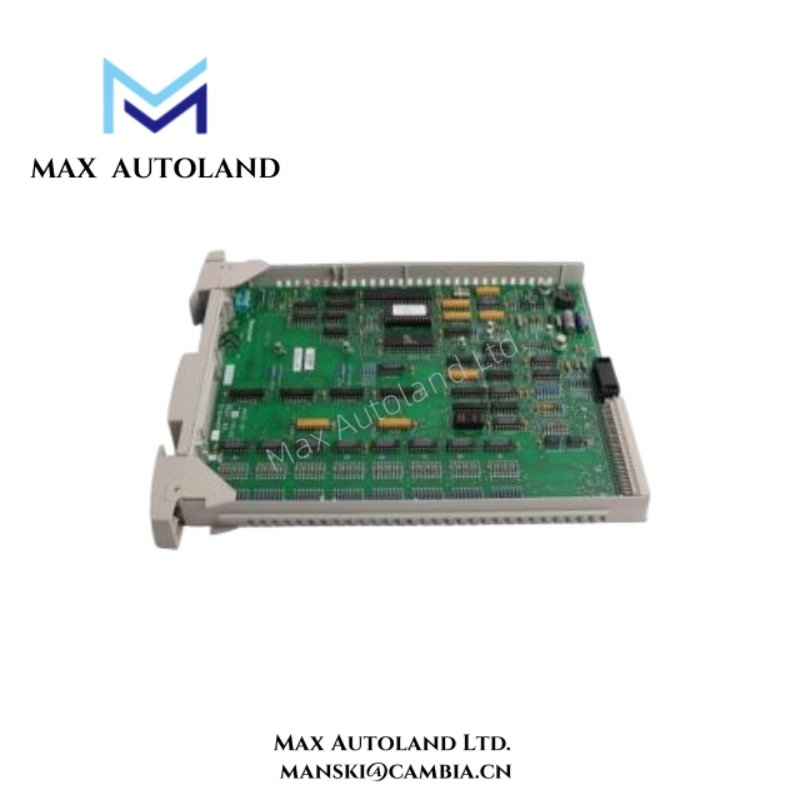

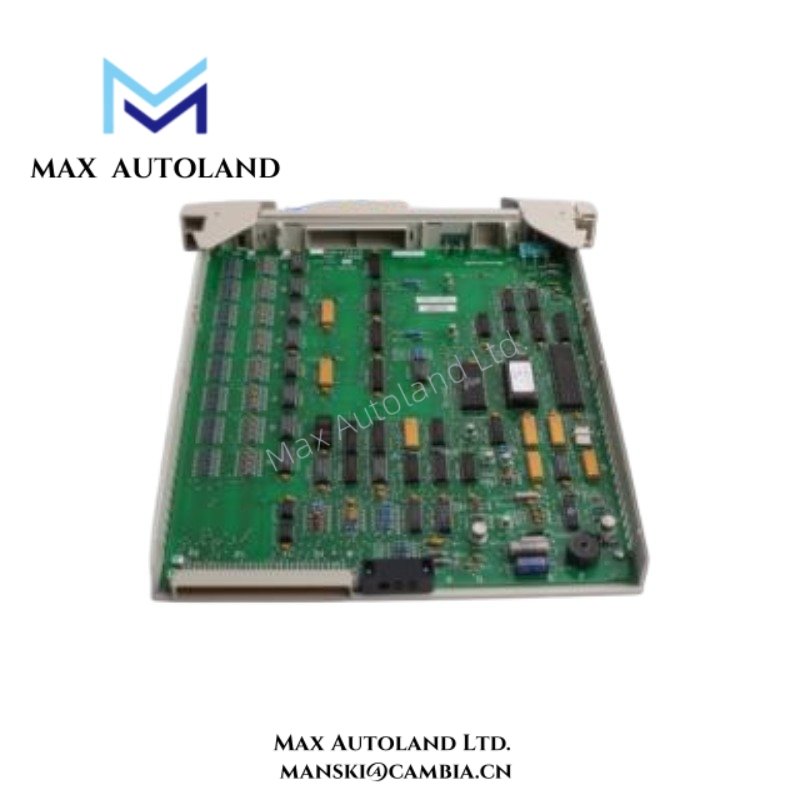

| Model | MC-PDIX02 51304485-150 |
| Manufacturer | Honeywell |
| Product Type | Digital Input Module |
| Series | Honeywell UCN (Universal Control Network) |
| Input Channels | 16 isolated digital input channels |
| Input Signal Type | Discrete (ON/OFF) signals |
| Rated Input Voltage | 24V DC |
| Input Voltage Range | 18V DC to 30V DC |
| Input Current per Channel | Approx. 5–10 mA |
| Signal Threshold (ON State) | ≥ 15V DC |
| Signal Threshold (OFF State) | ≤ 5V DC |
| Isolation Type | Channel-to-system electrical isolation |
| Isolation Voltage | Up to 1500V AC |
| Interface Protocol | UCN communication interface |
| Connector Type | Industrial terminal block / backplane connector |
| Data Update Rate | Real-time signal acquisition with millisecond response |
| Response Time | ≤ 10 ms per channel |
| Power Supply | Backplane powered |
| Power Consumption | ≤ 5W typical |
| Heat Dissipation | Low thermal output design |
| Dimensions (L × W × H) | Approx. 160 × 120 × 50 mm |
| Weight | Approx. 0.5 kg |
| Mounting Method | Rack-mounted in control system chassis |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Meets industrial IEC standards |
| EMC Compliance | Industrial electromagnetic compatibility compliant |
| Protection Features | Overvoltage protection and noise filtering |
| LED Indicators | Channel status LEDs for each input point |
| Wiring Configuration | Field wiring via terminal block |
| Redundancy Support | Compatible with system-level redundancy configurations |
FAQ
Q1: What input signal type does the module support?
The MC-PDIX02 51304485-150 supports 24V DC digital input signals across 16 independent channels.
Q2: Is the module compatible with Honeywell UCN systems?
Yes, the MC-PDIX02 51304485-150 integrates directly with Honeywell Universal Control Network systems.
Q3: What is the typical delivery time?
We keep MC-PDIX02 51304485-150 in stock, and we ship within 3 days to 2 weeks depending on order size.
Q4: Which logistics services do you use?
We usually ship MC-PDIX02 51304485-150 via DHL and other reliable international logistics providers.
Q5: Do you support returns if quality issues occur?
Yes, we support returns within 30 days if any quality problem appears after delivery.
Q6: Is the product new and original?
We supply MC-PDIX02 51304485-150 as brand new, original, and factory-sealed inventory.
