Overview

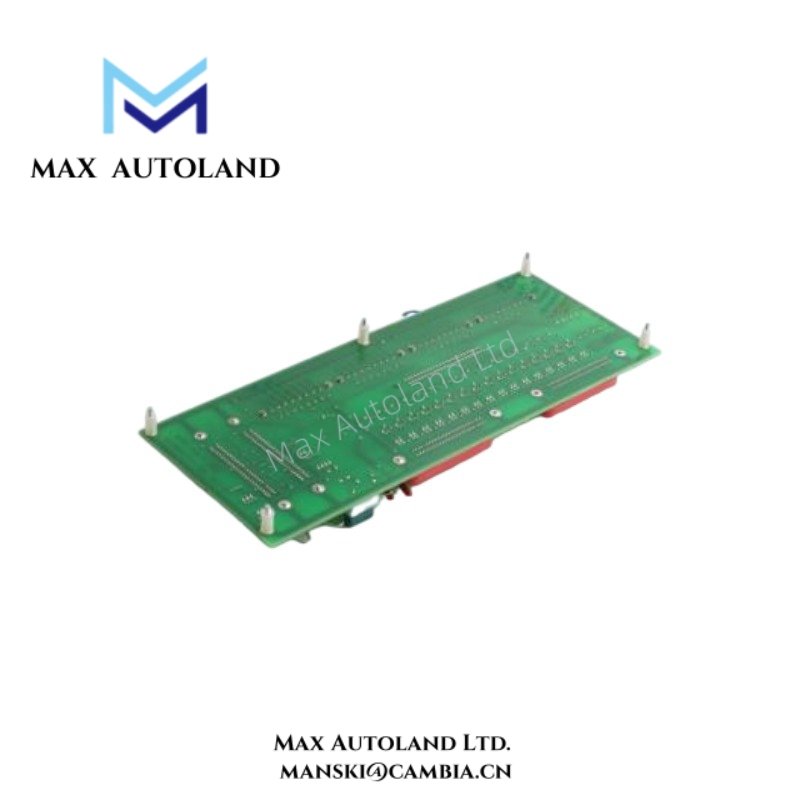

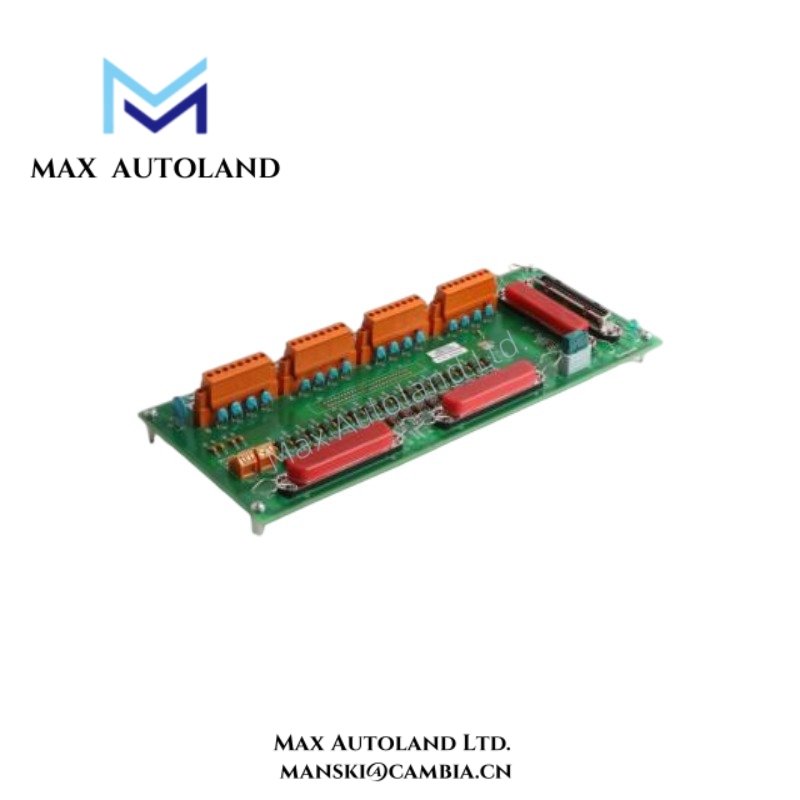

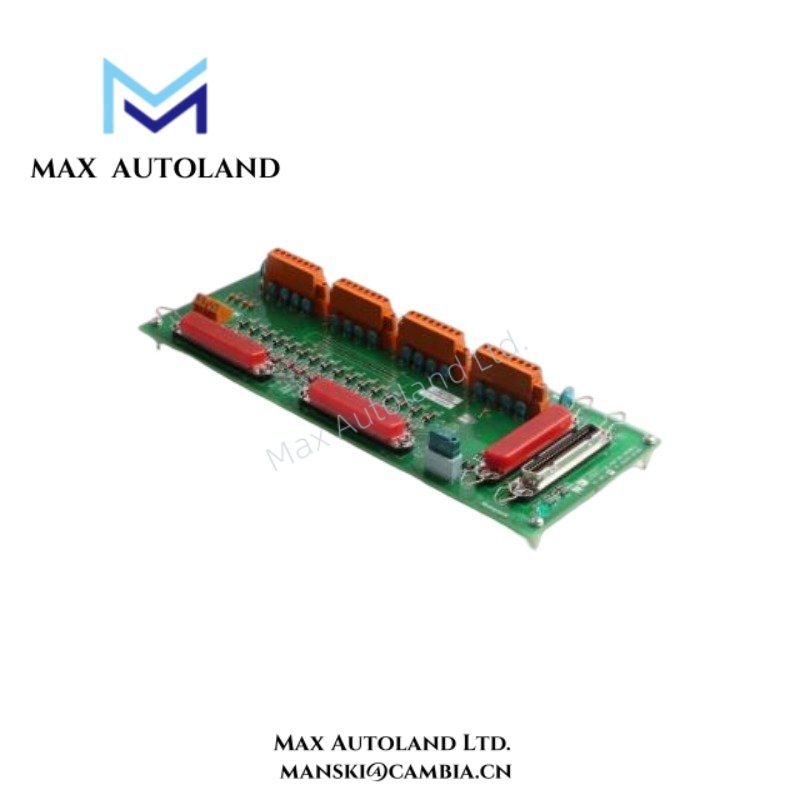

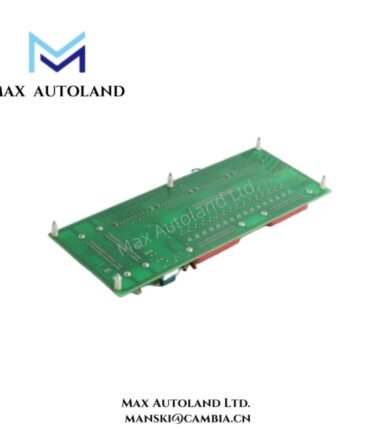

MU-TAOY22 51204172-125 delivers precise analog signal output for industrial control systems and demanding automation environments.
This module belongs to Honeywell’s trusted DCS platform, so it ensures stable communication and consistent performance.
Moreover, engineers choose MU-TAOY22 51204172-125 because it supports accurate signal conversion and efficient process control.
It integrates easily with Honeywell systems, while it maintains high reliability under continuous industrial operation.
Key Features and Functional Advantages
MU-TAOY22 51204172-125 provides multiple analog output channels, so it supports flexible control configurations.
Additionally, the module ensures high resolution output, which improves control precision across industrial processes.
It uses advanced internal circuitry, therefore it reduces signal noise and enhances transmission stability.
Furthermore, the compact housing design allows easy installation in limited cabinet space.
Operators also benefit from fast response time, which improves system efficiency and real-time control accuracy.
Specification
Technical Specifications
| Parameter | Detailed Specification |
|---|---|
| Model Number | MU-TAOY22 51204172-125 |
| Manufacturer | Honeywell |
| Product Type | Analog Output Module for Distributed Control Systems (DCS) |
| Series | Honeywell DCS I/O Series |
| Output Channels | 8 independent channels, each supports individual signal configuration |
| Output Signal Types | 4–20 mA current output and 0–10 V voltage output |
| Signal Resolution | 12–16 bit digital-to-analog conversion for high precision control |
| Output Accuracy | ±0.1% of full scale, ensuring consistent and stable signal output |
| Output Load Capacity | Up to 500 Ω for current output, typical industrial load compatibility |
| Response Time | ≤10 ms for rapid signal update and control response |
| Update Rate | High-speed refresh rate suitable for real-time process automation |
| Signal Isolation | Channel-to-channel and channel-to-system isolation for noise protection |
| Isolation Voltage | Typically 500 V AC isolation between channels and system |
| Power Supply | 24 V DC nominal input voltage |
| Power Consumption | Approx. 5–8 W depending on load and operating conditions |
| Backplane Interface | Standard Honeywell rack-mounted backplane connector |
| Connector Type | Industrial-grade edge connector for secure module installation |
| Dimensions (W×H×D) | Approx. 220 × 150 × 50 mm, compact design for cabinet integration |
| Weight | Approx. 0.8–1.2 kg, lightweight for easy handling and installation |
| Operating Temperature | 0°C to 60°C, suitable for industrial indoor environments |
| Storage Temperature | -40°C to 85°C for safe transportation and storage |
| Humidity Range | 5% to 95% non-condensing, ensuring stable operation in varying conditions |
| Mounting Method | Rack-mounted installation within Honeywell DCS chassis |
| Compliance | Meets industrial EMC and safety standards for automation equipment |
| Protection Features | Built-in overcurrent protection and signal fault detection capability |
FAQ
Q1: Is the product new and original?
Yes, MU-TAOY22 51204172-125 comes as brand new original equipment with guaranteed authenticity.
Q2: Do you have stock available?
We keep MU-TAOY22 51204172-125 in stock, so we can process orders quickly.
Q3: How fast can you ship the product?
We usually ship MU-TAOY22 51204172-125 within 3 days to 2 weeks, depending on order size.
Q4: Which logistics services do you use?
We commonly use reliable carriers such as DHL, so delivery remains fast and trackable.
Q5: What should I do if there is a quality issue?
We support returns for MU-TAOY22 51204172-125 within 30 days if any quality issue occurs.
Q6: What output signals does the module support?
MU-TAOY22 51204172-125 supports standard 4–20 mA and 0–10 V outputs for industrial control systems.
