Overview

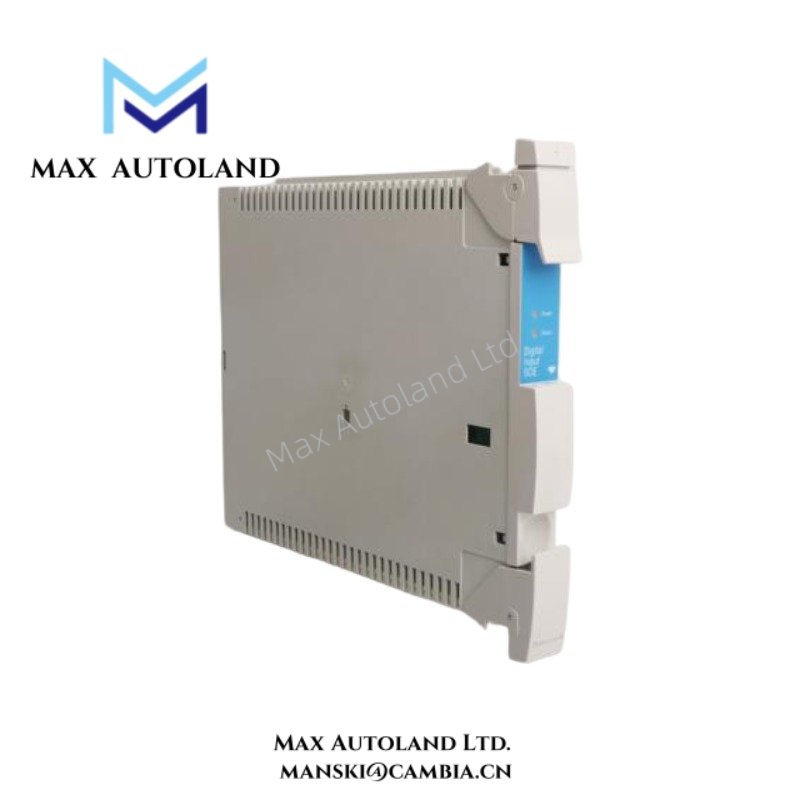

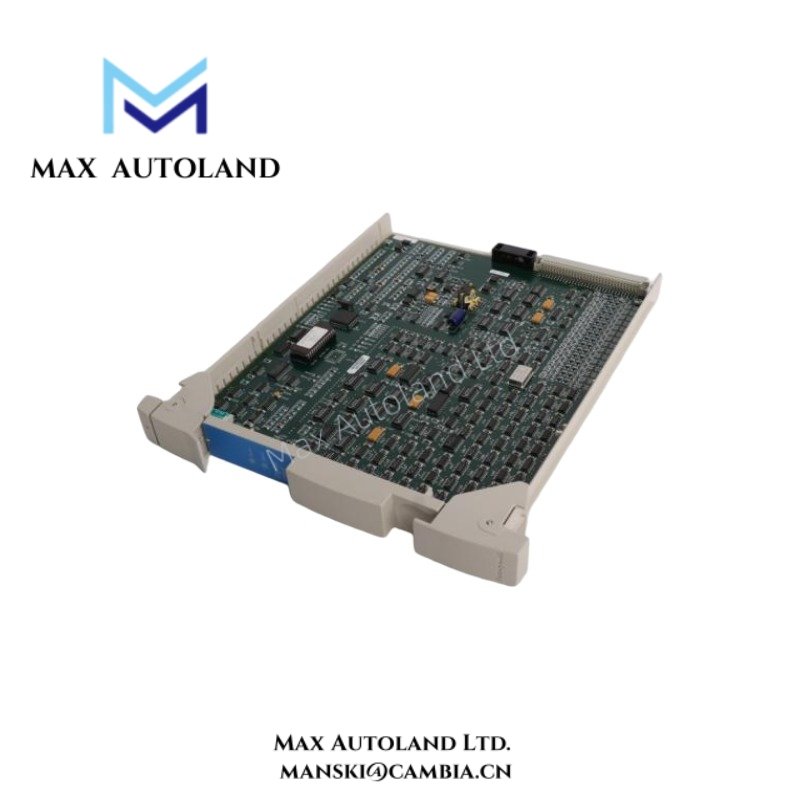

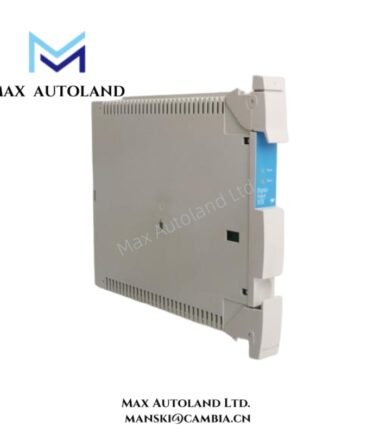

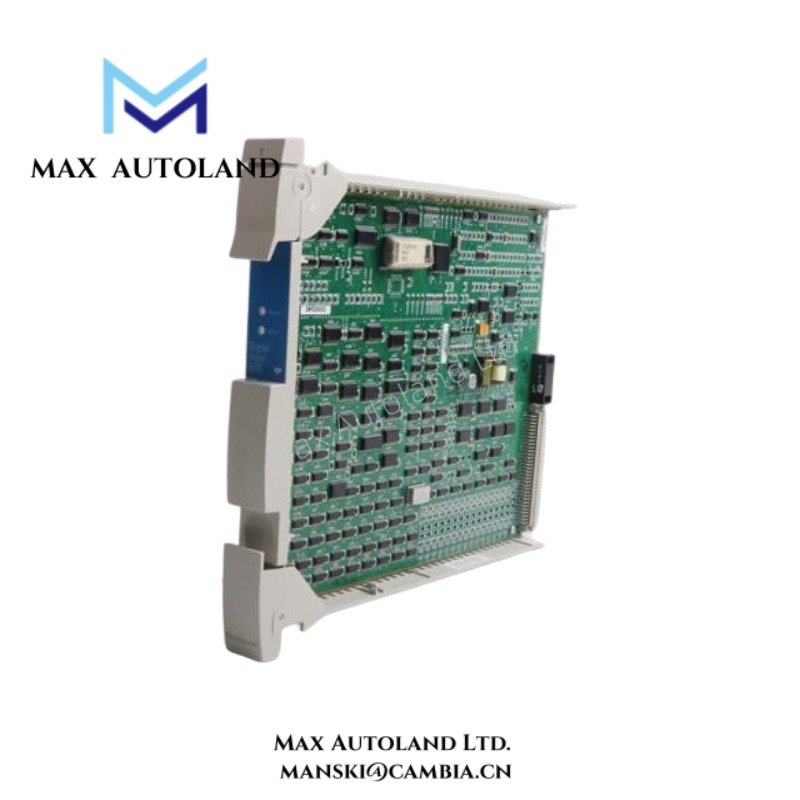

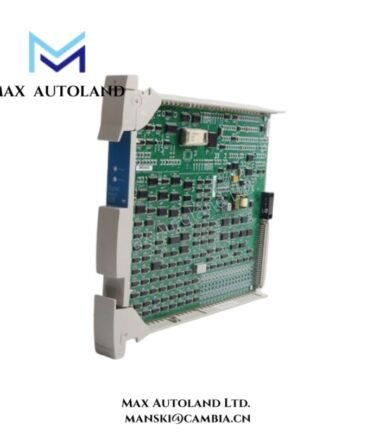

MU-PDIS12 51402625-125 provides reliable digital signal acquisition for industrial automation and process control systems.
This module belongs to the Honeywell FSC series, so it ensures stable integration with safety and control platforms.
Moreover, MU-PDIS12 51402625-125 processes multiple digital inputs efficiently, which improves monitoring accuracy and system responsiveness.
It supports continuous operation, while it maintains signal integrity across complex industrial environments.
Key Features and Functional Benefits
MU-PDIS12 51402625-125 supports multiple digital input channels, so it handles various field signals simultaneously.
Additionally, the processor ensures fast signal detection, which enhances real-time control and safety response capabilities.
It uses advanced filtering circuits, therefore it minimizes noise interference and improves signal stability.
Furthermore, the module design allows quick installation, while it simplifies maintenance procedures in control cabinets.
Engineers also benefit from robust isolation protection, which prevents electrical faults from affecting system performance.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model Number | MU-PDIS12 51402625-125 |
| Manufacturer | Honeywell |
| Product Type | Digital Input Processor Module |
| Series | Honeywell FSC (Fail Safe Controller) Series |
| Input Channels | 16 digital input channels for flexible signal acquisition |
| Input Voltage Range | 24 V DC nominal input for industrial field devices |
| Input Signal Type | Dry contact and voltage input compatible |
| Input Current | Approx. 5–10 mA per channel |
| Signal Processing | High-speed digital signal processing with filtering capability |
| Response Time | ≤5 ms for rapid input detection and system feedback |
| Isolation Type | Channel-to-channel and system isolation for noise protection |
| Isolation Voltage | Up to 500 V AC isolation capability |
| Power Supply | 24 V DC operating voltage |
| Power Consumption | Approx. 6–10 W during standard operation |
| Interface Type | Backplane communication interface for secure data transfer |
| Connector Type | Industrial-grade terminal and edge connectors |
| Dimensions (W×H×D) | Approx. 220 × 150 × 50 mm for compact cabinet installation |
| Weight | Approx. 1.0–1.3 kg for easy handling and mounting |
| Operating Temperature | 0°C to 60°C for stable industrial operation |
| Storage Temperature | -40°C to 85°C for safe storage and transport |
| Humidity Range | 5% to 95% non-condensing environment compatibility |
| Mounting Method | Rack-mounted installation within Honeywell control systems |
| Protection Features | Built-in surge protection and signal fault detection |
FAQ
Q1: Is this product brand new and original?
Yes, MU-PDIS12 51402625-125 comes as brand new original equipment with guaranteed authenticity.
Q2: Do you have stock available?
We keep MU-PDIS12 51402625-125 in stock, so we can respond to orders quickly.
Q3: How fast can you ship the product?
We ship MU-PDIS12 51402625-125 within 3 days to 2 weeks, depending on order quantity.
Q4: Which logistics services do you use?
We use reliable carriers such as DHL, so delivery remains fast and traceable worldwide.
Q5: What should I do if there is a quality issue?
We support returns for MU-PDIS12 51402625-125 within 30 days if any quality issue occurs.
Q6: What input types does the module support?
MU-PDIS12 51402625-125 supports dry contact and 24 V DC digital input signals for industrial applications.
