Overview

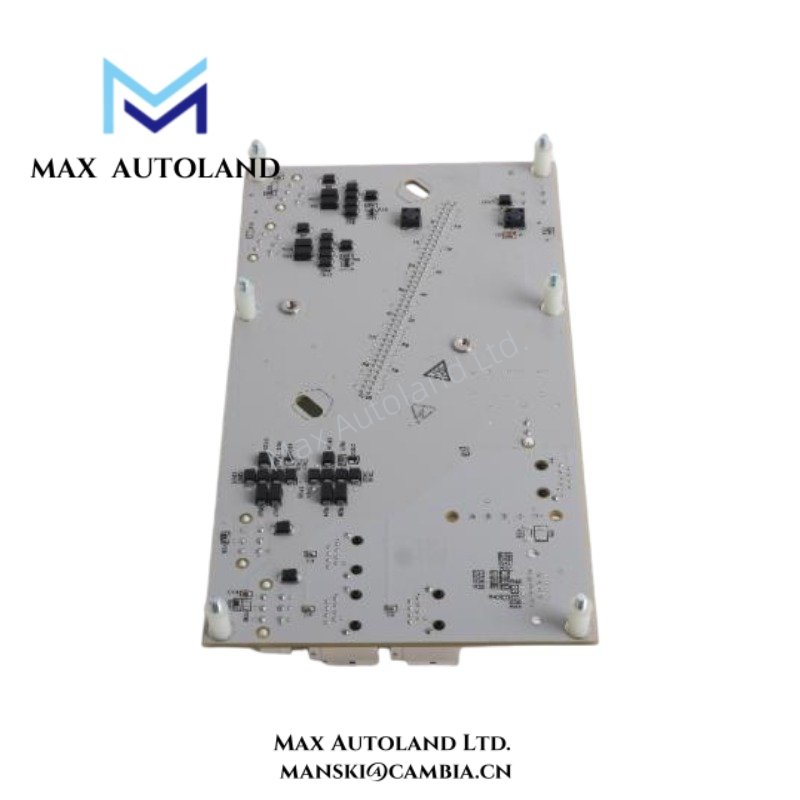

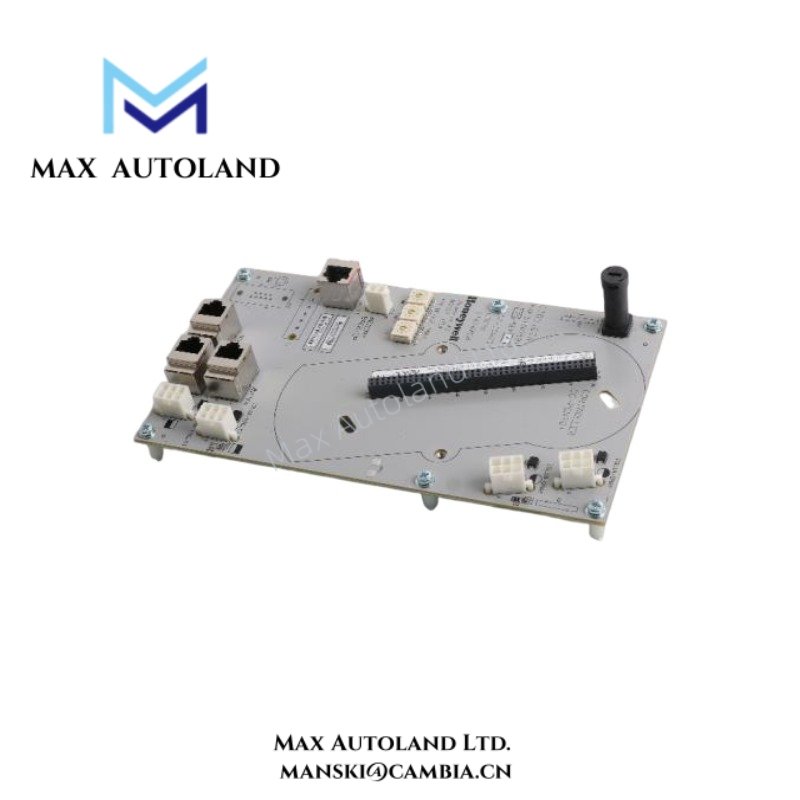

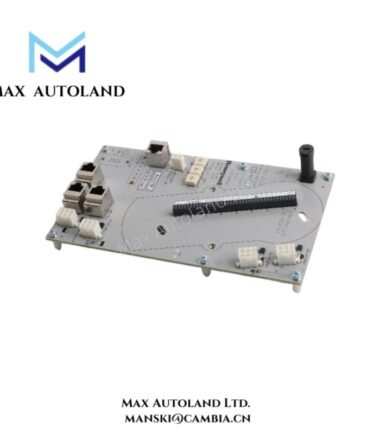

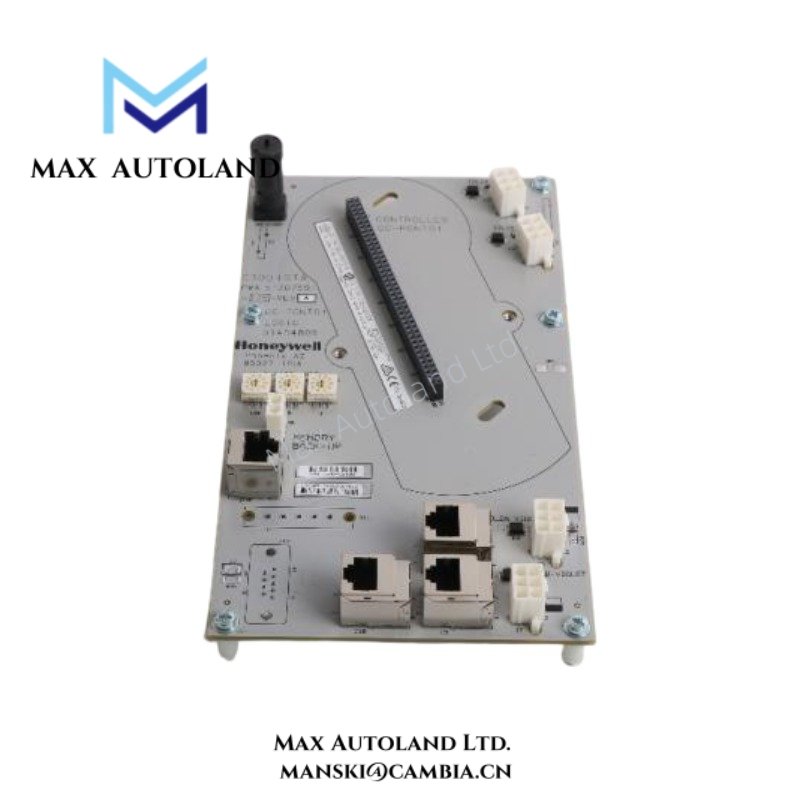

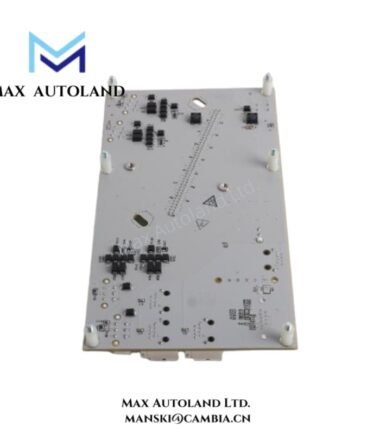

The DC-TCNT01 51307591-175 I/O termination module provides stable field wiring connectivity for Honeywell C300 controller systems.
Moreover, Honeywell designs the DC-TCNT01 51307591-175 to ensure reliable signal termination within Experion PKS architectures.
Additionally, the module supports secure data transfer between field devices and controller I/O points.
Therefore, engineers rely on DC-TCNT01 51307591-175 for consistent system connectivity and operational stability.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | DC-TCNT01 51307591-175 |
| Manufacturer | Honeywell |
| Product Type | C300 Controller I/O Termination Module |
| Series | Honeywell Experion PKS / C300 system |
| Application | Field I/O wiring termination and controller connectivity |
| Input Channels | Multi-channel I/O termination support (system dependent) |
| Output Channels | Multi-channel field signal termination support |
| Interface Type | Terminal block and backplane interface |
| Wiring Method | Screw-type industrial terminal connections |
| Signal Type | Digital and analog field signals |
| Voltage Rating | 24V DC industrial control voltage |
| Current Rating | Up to 1–2A per channel (configuration dependent) |
| Connection Type | Controller-to-field wiring interface |
| Signal Integrity | Low-noise industrial signal transmission design |
| Isolation | Electrical isolation for system protection |
| Power Supply | Backplane powered module |
| Power Consumption | Approx. 5–9 W |
| Energy Storage | None (passive termination module) |
| Dimensions | Approx. 220 mm × 150 mm × 60 mm |
| Weight | Approx. 0.85 kg |
| Mounting Type | Rack or panel-mounted installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Features | Surge protection and signal filtering |
FAQ
A1: The DC-TCNT01 51307591-175 provides I/O termination and field wiring connectivity for C300 controller systems.
Q2: What system is it compatible with?
A2: The DC-TCNT01 51307591-175 is compatible with Honeywell C300 and Experion PKS systems.
Q3: Does it support both input and output signals?
A3: Yes, the DC-TCNT01 51307591-175 supports multi-channel input and output termination.
Q4: Is the product available in stock and how fast is shipping?
A4: The DC-TCNT01 51307591-175 is brand new original with stock available, and shipping takes 3 days to 2 weeks.
Q5: Which logistics services do you use?
A5: We commonly use DHL and similar carriers to deliver the DC-TCNT01 51307591-175 quickly and safely.
Q6: What if there is a quality issue after purchase?
A6: The DC-TCNT01 51307591-175 supports a 30-day return policy if any quality issue occurs after delivery.
Reviews
There are no reviews yet.
