Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

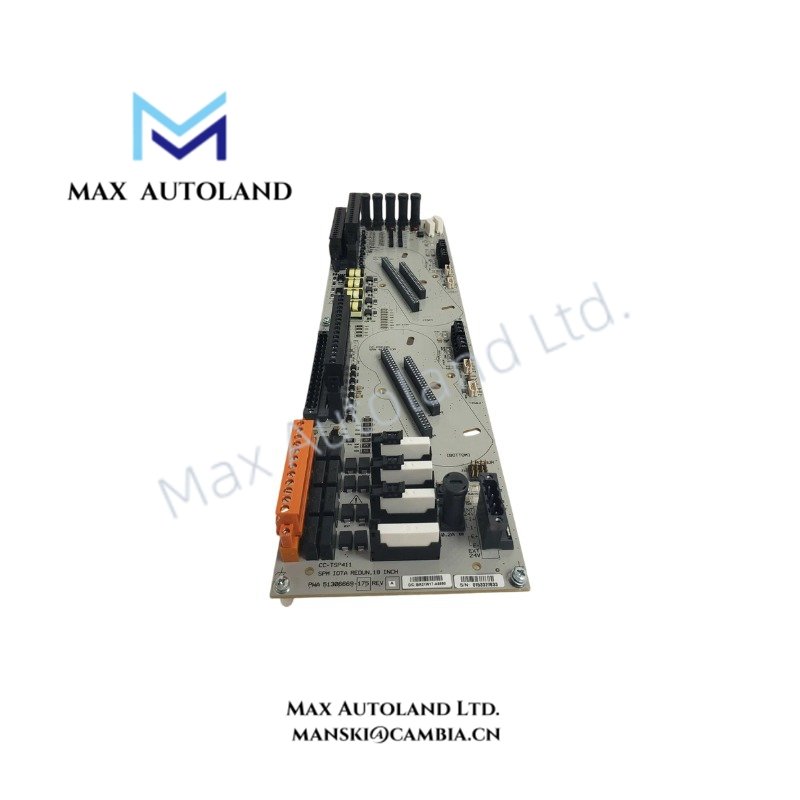

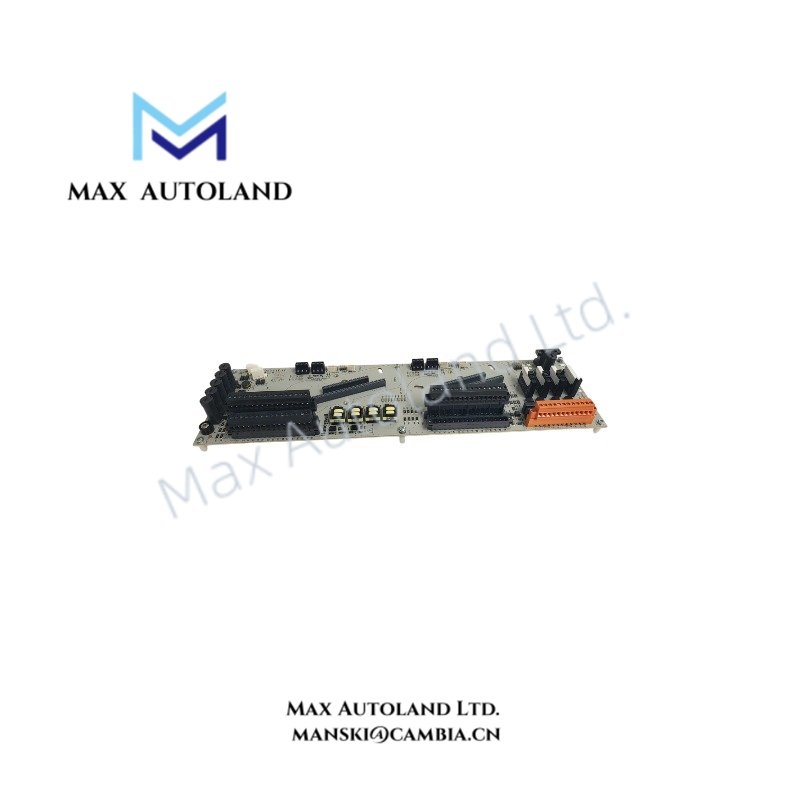

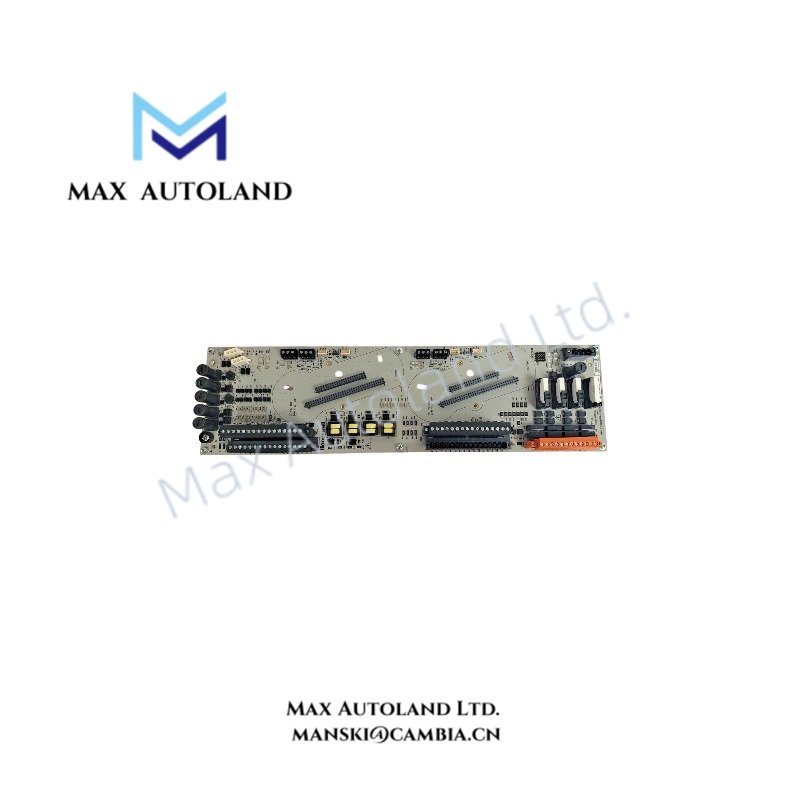

| Model | CC-TSP411-3 / CC-TSP411 |
| Brand | Honeywell |
| Origin | USA |
| Product Type | Speed Protection Modules |
| Part Number | 51306669-175 |
| System Compatibility | Honeywell Experion PKS / C300 Controller platform |
| Module Function | Multi-channel speed supervision and overspeed trip control |
| Mounting Type | Series C IOTA carrier / DIN Rail mounting |
| Input Channels | 4 speed input channels |
| Input Signal Types | Passive Magnetic Pickup (MPU), Active Hall-effect sensor, Eddy current probe |
| Speed Input Range | 0 to 10 kHz |
| Trip Output | Configurable dry-contact trip relays |
| Trip Response Time | Less than 20 ms for emergency overspeed trip execution |
| Operating Voltage | 24 VDC nominal |
| Operating Temp | 0 deg C to +60 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Weight | Approximately 0.35 kg |
| Protection Feature | Conformal coated board for industrial environments |
Process Control Signal Processing and Channel Isolation
The CC-TSP411-3 processes rotating equipment speed signals from MPU, Hall-effect, and eddy current sensor inputs. Furthermore, it executes independent speed supervision logic and provides trip relay outputs when configured speed limits are exceeded.
Honeywell Series C turbomachinery I/O modules integrate with process control architectures through dedicated IOTA assemblies. Therefore, the CC-TSP411-3 maintains direct electrical signal routing between speed sensors, protection logic, and shutdown circuits.
The module supports channel-to-channel signal management for multi-input speed monitoring applications. Additionally, the design allows integration of high-frequency speed feedback signals required for turbine and compressor protection functions.
Frequently Asked Questions
Q: What type of sensors can connect to the CC-TSP411-3 speed inputs?
A: The module supports passive magnetic pickups, active Hall-effect sensors, and eddy current probe speed signals.
Q: How does the CC-TSP411-3 execute overspeed protection?
A: The module monitors speed input channels and activates configured dry-contact trip outputs when programmed overspeed conditions occur.
Q: Can the CC-TSP411-3 operate with the Honeywell C300 Controller platform?
A: Yes. The module mounts on the Series C IOTA carrier and interfaces with the Honeywell Experion PKS / C300 Controller system.
Field Installation Guidelines
- Install the CC-TSP411-3 on the specified Honeywell Series C IOTA carrier according to the system hardware configuration.
- Verify the 24 VDC supply wiring before applying power to the module.
- Use shielded cables for MPU, Hall-effect sensor, and proximity probe signal connections.
- Separate speed sensor wiring from high-current power cables to reduce electromagnetic interference.
- Connect cable shields according to the cabinet grounding design and plant electrical standards.
- Confirm sensor polarity, signal type, and input configuration before commissioning.
- Verify trip relay wiring continuity before enabling machinery protection functions.
