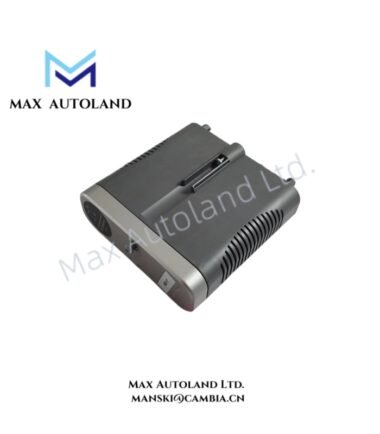

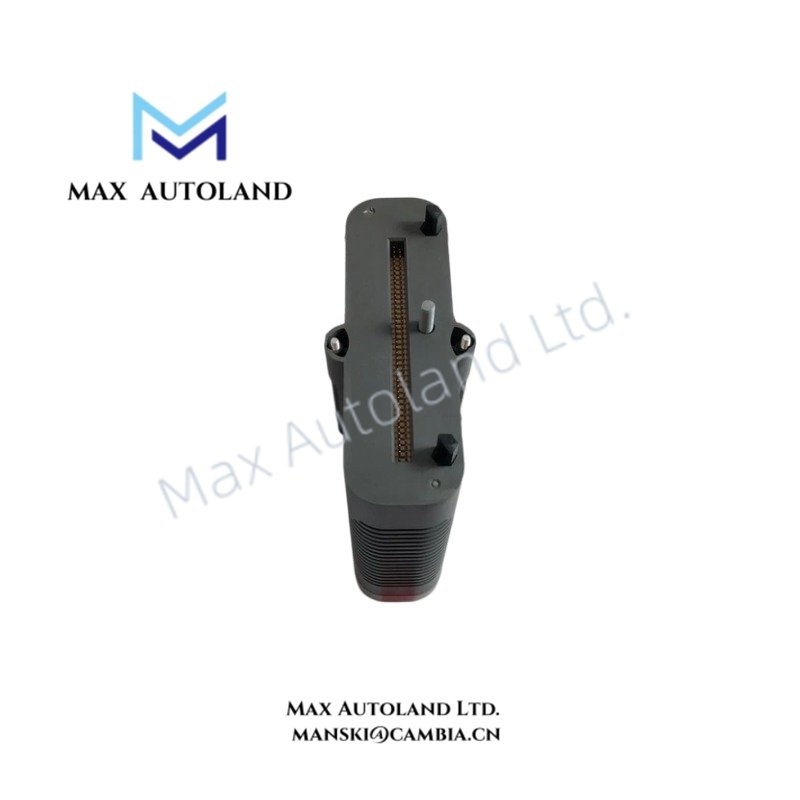

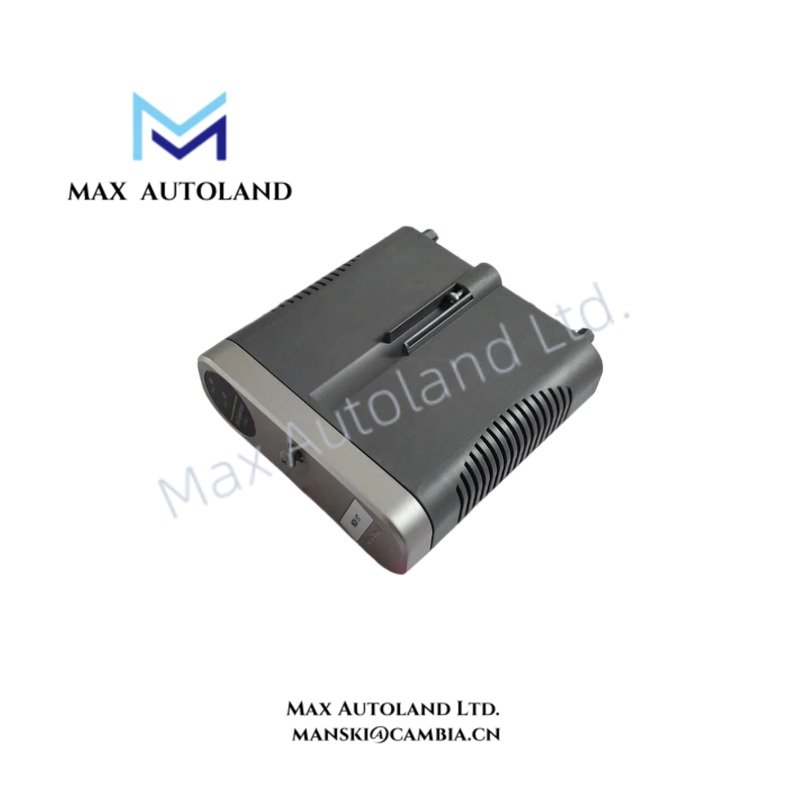

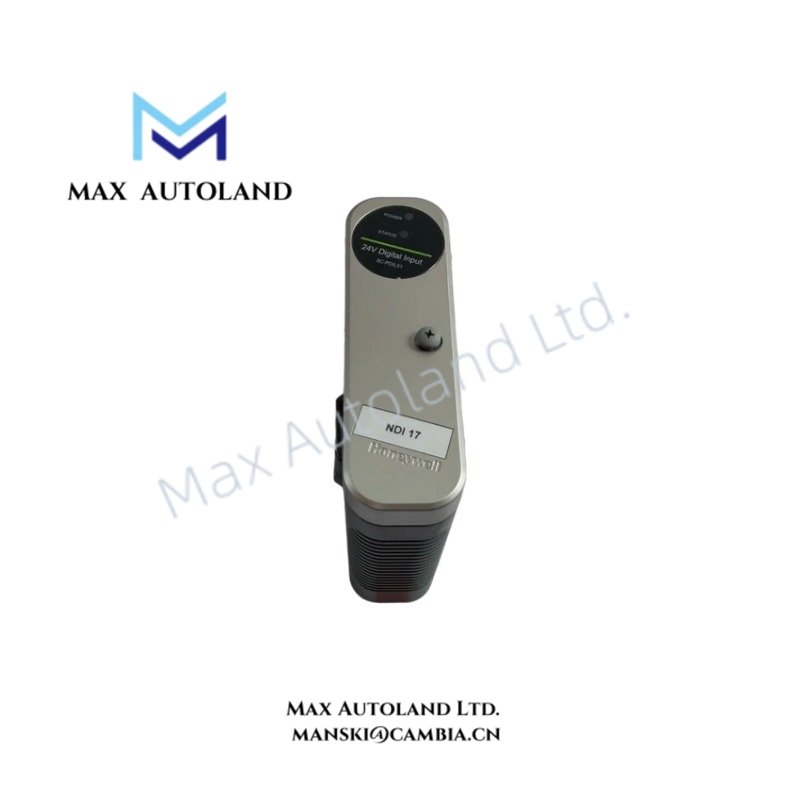

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 8C-PDIL51 51454359-175 |
| Brand | Honeywell |
| Product Type | Digital Input Module |
| Origin | USA |
| Weight | 0.3 kg |
| Dimensions | 6 x 15.2 x 14.3 cm |
| Input Channels | 32 channels |
| Input Type | 24 VDC Digital Input |
| Galvanic Isolation | 1000 VAC RMS |
| Isolation Technique | Optical isolation in IOM |
| DI Power Voltage Range | 18 to 30 VDC |
| ON Sense Voltage / Current | 13 VDC minimum or 3 mA minimum |
| OFF Sense Voltage / Current | 5 VDC maximum or 1.2 mA maximum |
| Input Impedance | 4.2 KΩ |
| Absolute Delay Across Input Filter and Isolation | 5 ms ± 20% |
| Field Resistance for Guaranteed ON Condition | 300 Ω max at 15 VDC |
| Open Wire Detection | Not supported |
Channel Isolation and Process Signal Handling
The Honeywell 8C-PDIL51 51454359-175 applies optical isolation within the I/O module to separate field discrete circuits from internal electronics. Therefore, the module supports 32-channel 24 VDC signal acquisition while maintaining electrical separation between field wiring and the controller interface.
In addition, the module provides defined ON and OFF sensing thresholds. The input circuit detects an ON state at 13 VDC minimum or 3 mA minimum, while it recognizes an OFF state at 5 VDC maximum or 1.2 mA maximum. This threshold design allows direct processing of industrial switch and contact-based signals.
Frequently Asked Questions
Q: Does the 8C-PDIL51 support open wire detection?
A: No. The 8C-PDIL51 51454359-175 Digital Input Module does not include open wire detection functionality.
Q: What isolation method does this digital input module use?
A: The module uses optical isolation inside the I/O module and provides 1000 VAC RMS galvanic isolation between field signals and internal circuits.
Q: What field voltage range can the input channels accept?
A: The module accepts DI power voltage from 18 to 30 VDC and uses defined ON/OFF sensing thresholds for discrete signal evaluation.
Field Installation Guidelines
- Install the 8C-PDIL51 51454359-175 module according to Honeywell Series 8 I/O cabinet and terminal assembly requirements.
- Verify field wiring polarity before applying 24 VDC input power to the discrete channels.
- Separate digital input wiring from high-voltage AC cables and high-current switching circuits to reduce electrical interference.
- Connect cable shields according to the plant grounding standard and avoid multiple grounding points that may create ground loops.
- Confirm that connected field devices operate within the specified 18 to 30 VDC input range before commissioning.
- Check terminal connections and insulation conditions during maintenance activities to prevent signal instability.
