Overview

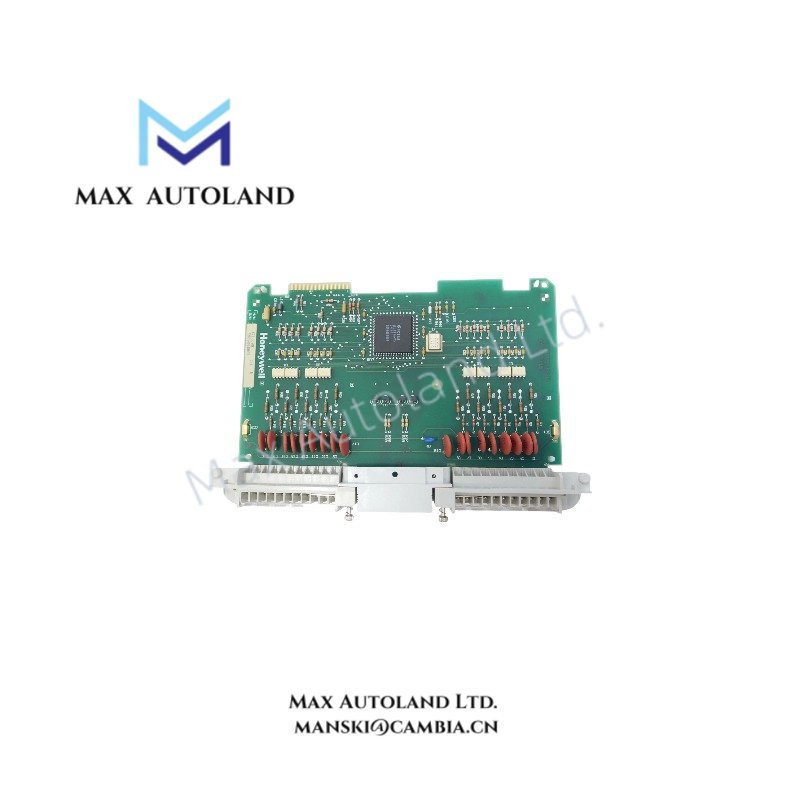

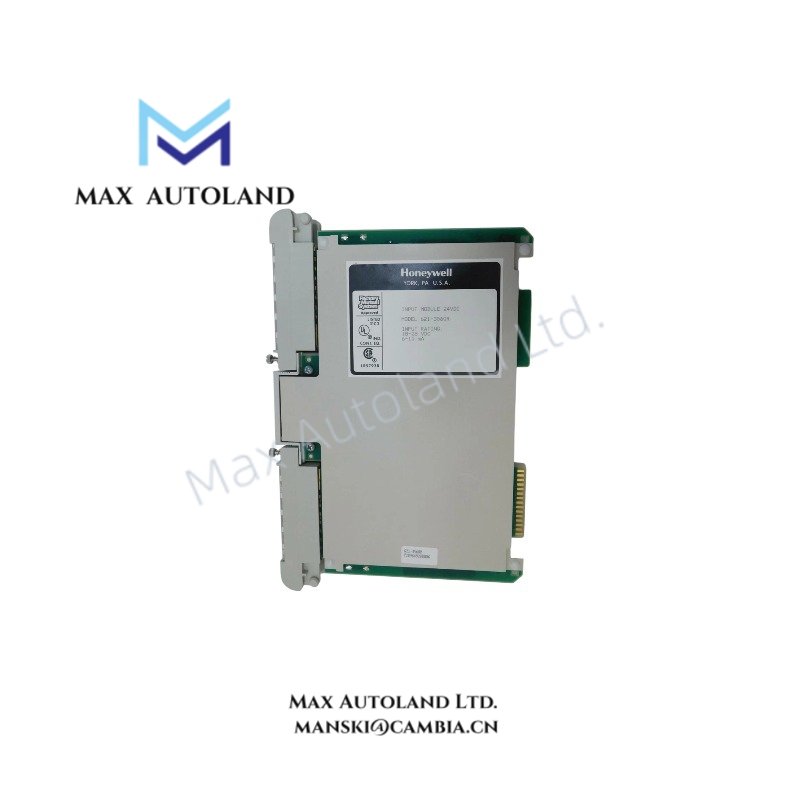

The Honeywell 621-3560R, also cataloged as the 621-3560 Input Module, operates as a dedicated hardware component for process variable signal acquisition within UCN network platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 621-3560R |
| Brand | Honeywell |
| Origin | United States |
| Weight | 0.2 kg |
| Dimensions | 5.1 cm x 24.1 cm x 19.1 cm |
| Operating Temp | 0 to 60 degC |
| Power Consumption | 5 VDC via backplane |
| Module Type | Input Module |
Process Control and DCS Instrumentation
This module incorporates channel-to-channel isolation to prevent ground loop currents from degrading signal integrity across the Universal Control Network (UCN). Built-in analog-to-digital conversion circuitry processes field inputs with continuous cold junction compensation (CJC) executed at the terminal block interface for thermocouple inputs, ensuring precise temperature tracking without external reference junctions.
Frequently Asked Questions
Q: What is the mechanical difference between the 621-3560R and the 621-3560 base model?
A: The “R” suffix designates a conformance certified or conformal coated revision optimized for corrosion resistance in harsh industrial environments, sharing identical electrical and backplane form factors with the base model.
Q: Does this module support hot-swapping under active backplane power?
A: No, the rack power must be isolated prior to insertion or removal of the module to prevent transient voltage spikes and potential corruption of the UCN communication bus.
Field Installation Guidelines
- Enclosure and Mounting: Install the assembly vertically within an IP54-rated metal enclosure to mitigate particulate contamination and maintain specified convection cooling paths.
- Wiring and Shielding: Direct field wiring must use twisted-pair shielded cables. Ground the shield at the control cabinet marshaling panel only; do not ground both ends to prevent circulating currents.
- Terminal Torque: Tighten all terminal block screws to the manufacturer-specified torque rating of 0.5 Nm to ensure stable electrical contact under high-vibration conditions.
