Overview

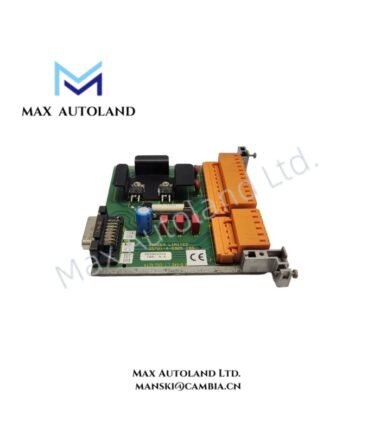

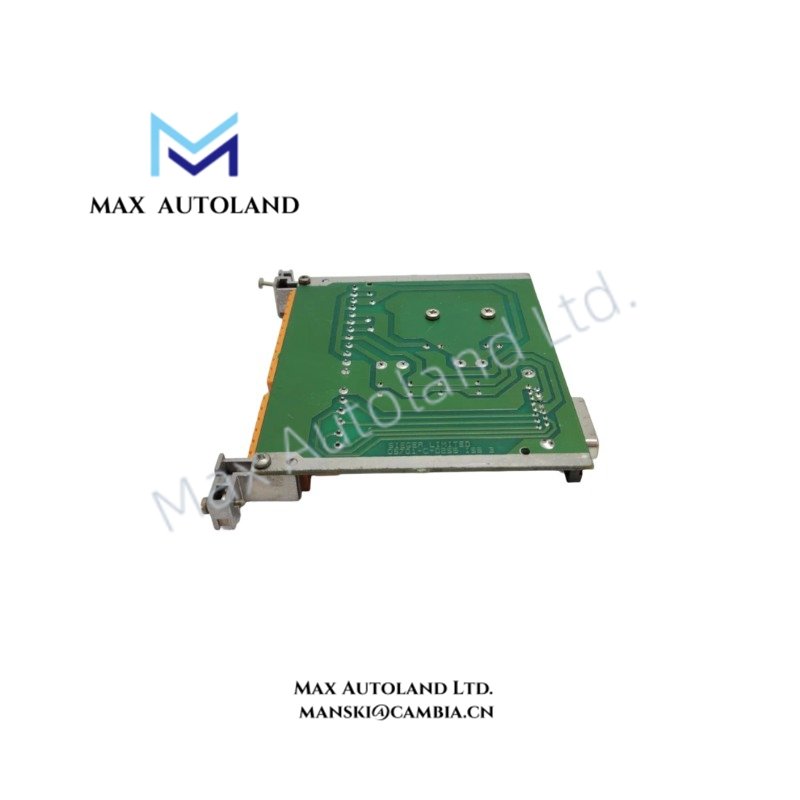

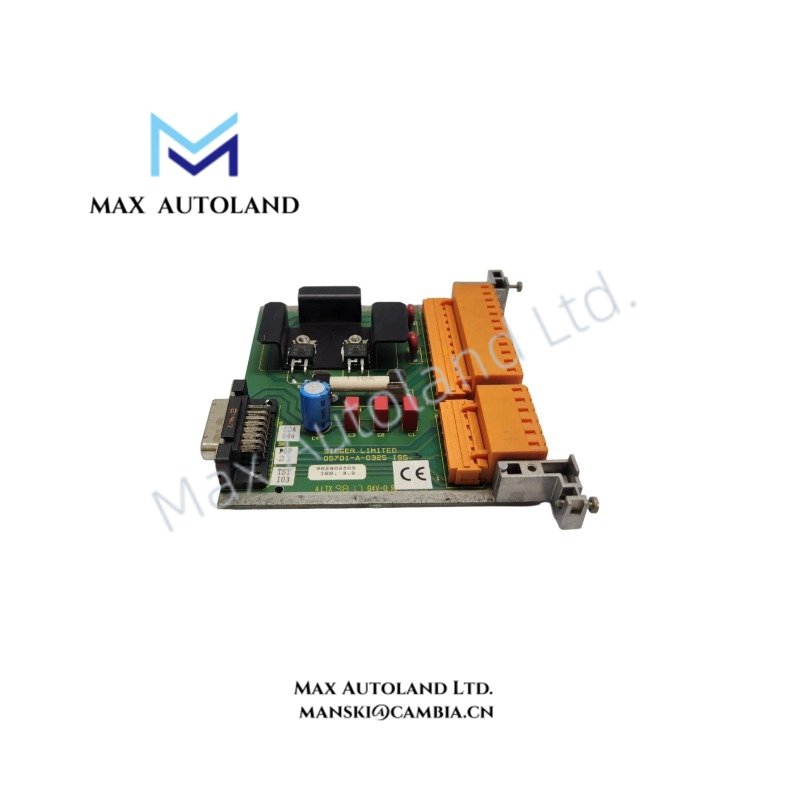

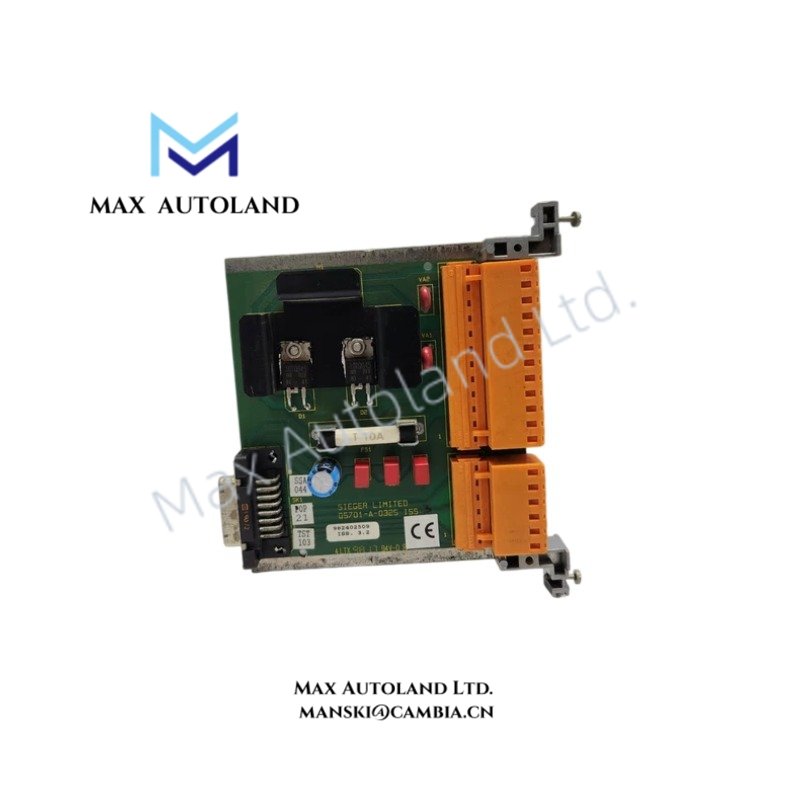

Configured for isolated DC signal acquisition in the Honeywell System 57 monitoring platform, the Honeywell 05701-A-0325 (05701-A-0325 DC Input Card) provides direct physical/electrical execution for discrete DC input monitoring.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 05701-A-0325 |
| Brand | Honeywell |
| Product Type | DC Input Card |
| System Platform | System 57 |
| Origin | USA |
| Weight | 0.16 kg |
| Dimensions | 11.8 x 13.1 x 2 cm |
| Operating Temp | -10 deg C to +60 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Humidity | 5% to 95% non-condensing |
| Power Consumption | Not specified |
| Input Voltage Range | 12 VDC to 48 VDC |
| Input Channels | 8 to 16 isolated input channels |
| Low State Threshold | <= 5 VDC |
| High State Threshold | >= 10 VDC |
| Isolation Type | Channel isolated DC inputs |
Channel Isolation and Process Signal Interface
The Honeywell 05701-A-0325 DC Input Card provides isolated digital signal acquisition for System 57 rack-based monitoring applications. The input design supports multiple DC field signal channels with defined voltage threshold recognition, allowing connected devices to be evaluated through discrete electrical states.
The module uses channel-to-channel isolation to reduce electrical interference between field wiring points and the monitoring electronics. This configuration is suitable for applications requiring separation between external DC circuits and internal rack signal processing paths.
For Honeywell process monitoring architectures, isolated input modules are commonly integrated with field devices using discrete status signals, alarm contacts, and DC-powered switching circuits. The card operates with defined low and high voltage recognition levels rather than analog measurement scaling.
Frequently Asked Questions
Q: What type of signals can the 05701-A-0325 process?
A: The module processes isolated DC input signals within the 12 VDC to 48 VDC input range and identifies electrical states according to the specified low and high voltage thresholds.
Q: Does the module provide channel isolation?
A: Yes. The 05701-A-0325 is specified as providing 8 to 16 isolated input channels for separation between individual field input circuits.
Q: What environmental conditions are supported by this input card?
A: The operating temperature range is -10 deg C to +60 deg C, with storage capability from -40 deg C to +85 deg C and humidity operation from 5% to 95% non-condensing.
Field Installation Guidelines
- Install the DC Input Card only in the compatible Honeywell System 57 rack assembly.
- Verify the field input voltage level before connecting external DC circuits.
- Maintain separation between low-level signal wiring and high-voltage power conductors to reduce electrical noise coupling.
- Connect cable shields according to the system grounding design and site electrical standards.
- Confirm terminal assignments and polarity before energizing the module.
- Inspect rack connectors and backplane interfaces for contamination or mechanical damage before installation.
- Ensure the module is installed in an environment within the specified temperature and humidity limits.
