Overview

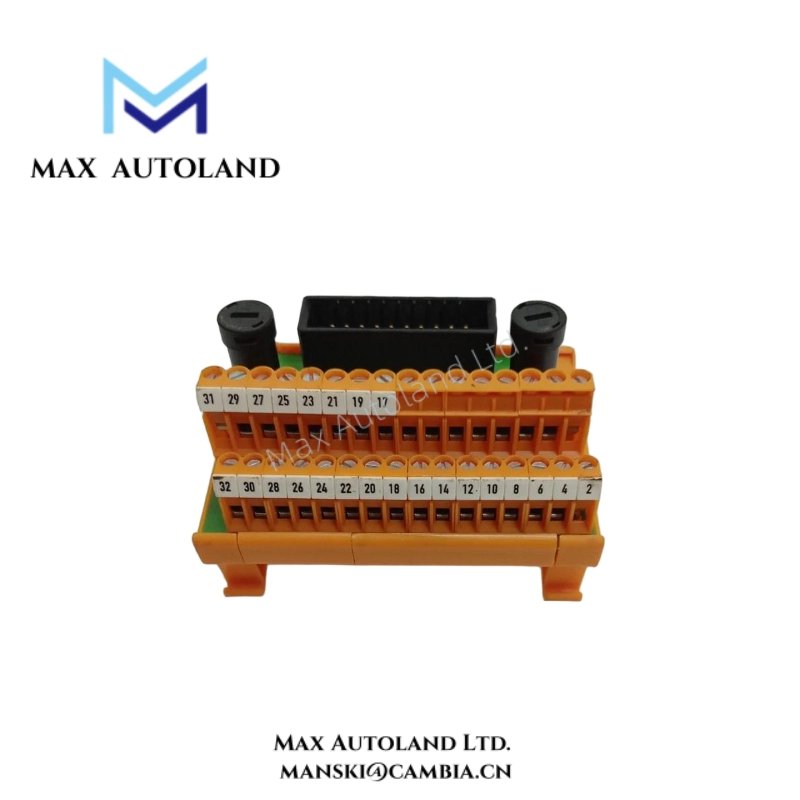

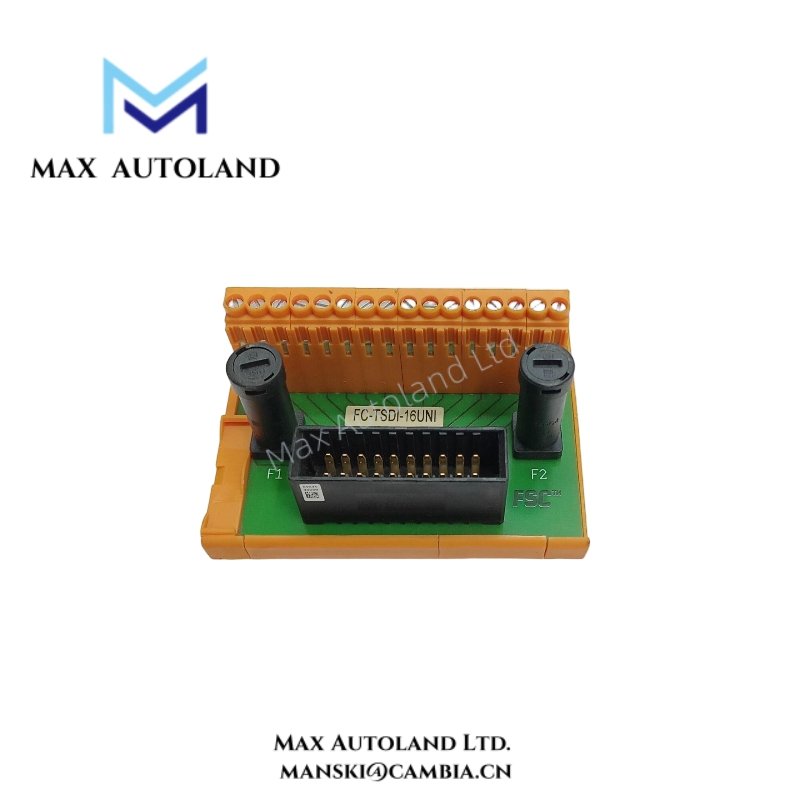

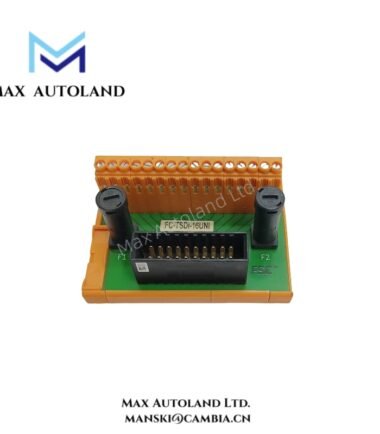

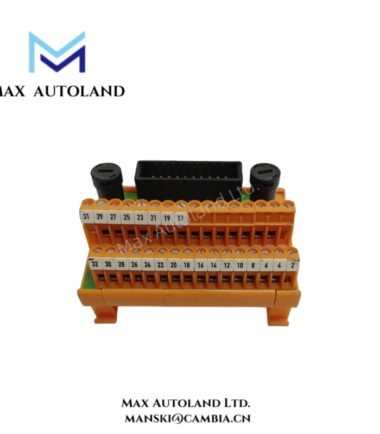

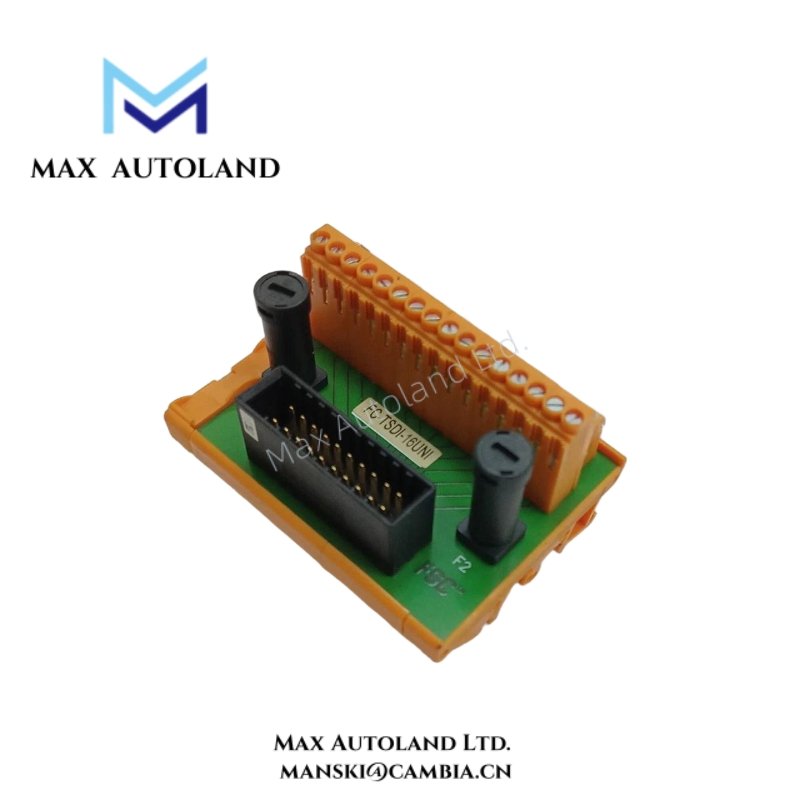

The Honeywell FS-TSDI-16UNI Field Termination Assembly (FTA) provides safe and reliable digital input integration for FSC Series safety systems. Designed for industrial environments, it ensures secure signal transmission from field devices to the control system. Moreover, its modular construction simplifies installation and maintenance, reducing system downtime. Engineers trust this module for precise monitoring and dependable safety performance in demanding applications.
Specification
| Parameter / Feature | Specification / Detail |
|---|---|
| Model Number | FS-TSDI-16UNI |
| Product Type | Field Termination Assembly (FTA) for Digital Inputs |
| Number of Channels | 16 |
| Input Signal Type | Discrete / Digital |
| Input Voltage | 24 V DC nominal |
| Input Current | 3–10 mA per channel |
| Isolation | Safe-rated galvanic isolation between channels |
| Diagnostic Indicators | LED status indicators per channel |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Wiring Terminals | Screw-type terminals, accommodates 16–24 AWG |
| Safety Standards Compliance | SIL2 / FSC Series certified |
| Typical Power Consumption | 2 W nominal |
| Dimensions / Form Factor | 150 mm x 80 mm x 40 mm |
| Weight | 0.4 kg |
FAQ
Q1: How many digital inputs does the FS-TSDI-16UNI support?
A1: The module supports 16 safe-rated digital input channels.
Q2: Is the module compatible with Honeywell FSC Series controllers?
A2: Yes, it is fully compatible with FSC Series safety control systems.
Q3: What is the operating temperature range?
A3: The module operates reliably from 0 °C to 60 °C.
Q4: Does it provide diagnostic indicators?
A4: Yes, each channel has LED indicators for status and fault detection.
