Overview
The Honeywell FC-TSDI-1624 is a 16-channel safe digital input FTA (Field Termination Assembly) module in the FSC / Safety Manager series. It accepts 24 VDC digital input signals and functions across a wide operating voltage range. Honeywell designs this terminal board for signal routing between the system interconnect cable and external field wiring.
Field termination assembly module TSDI-1624 is the interface between system interconnection cable SICC-0001/Lx and the external field wiring (screw terminals). The SICC cable interconnects the SIC connector on the FTA module and a (redundant pair of) SDI-1624 modules.
The TSDI-1624 module can interface with digital input signals from ‘Class I, Division 2 Hazardous Locations’.
Specification
| General | Type numbers: | FS-TSDI-1624C |
| FC-TSDI-1624C | ||
| Approvals: | CE,TUV,UL,CSA,FM | |
| Input | Number of input channels: | 16(2 groups of 8) |
| Input voltage: | 24V DC,-15%-+30% | |
| Input current: | ≤15 mA at 24V DC(with a redundant pair of safe digital input modules SDI-1624 as load) | |
| Igniting current per channel: | <100 mA at 24VDC+30% | |
| Physical | Module dimensions: | 170×70×60 mm (L×W×H) |
| 6.69×2.76×2.36 in(L×W×H) | ||
| DIN EN rails: | TS32/TS35×7.5 | |
| Used rail length: | 171 mm | |
| Fuse | Fuse rating: | 250 mA |
| Fuse dimensions: | 5×20 mm | |
| Voltage rating AC: | 400V | |
| Voltage rating DC: | 400V | |
| Manufacturer: | SOC | |
| Manufacturer PN: | SHV12250 mA | |
| Maximum output current per fuse: | 175 mA |
Manual/Datasheet PDF

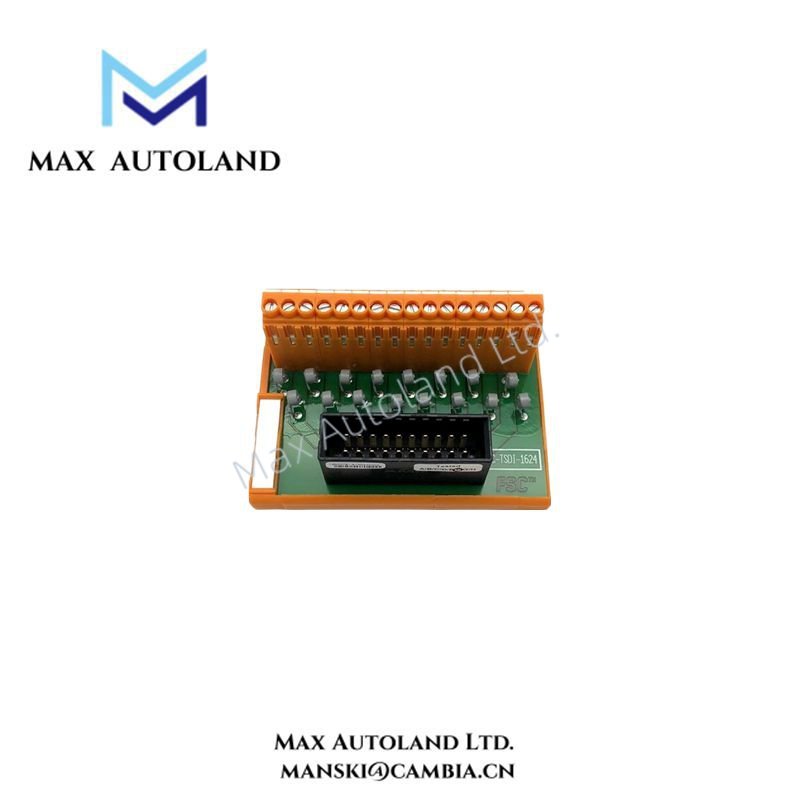

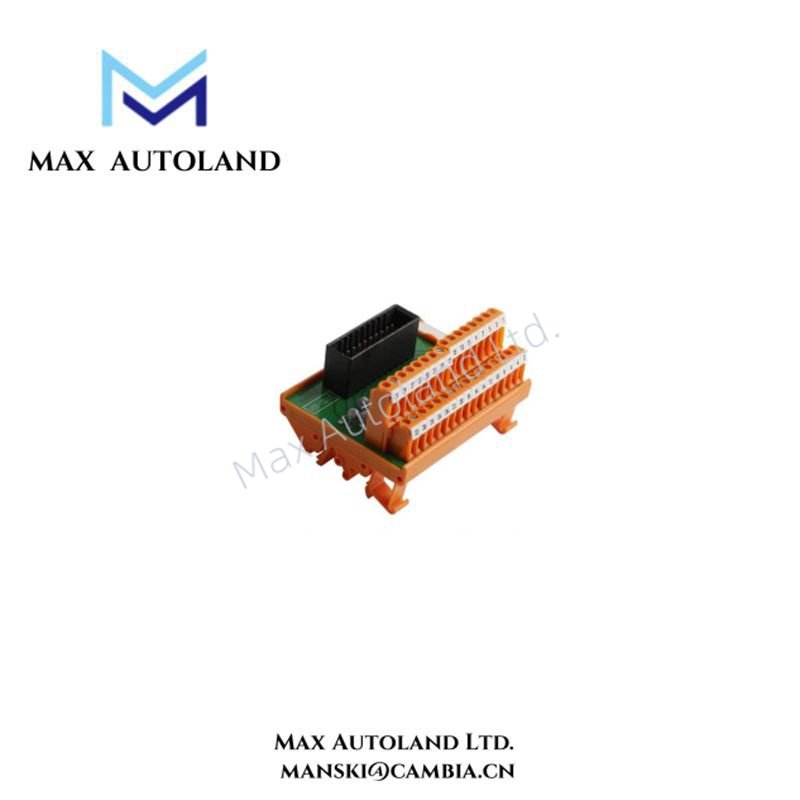

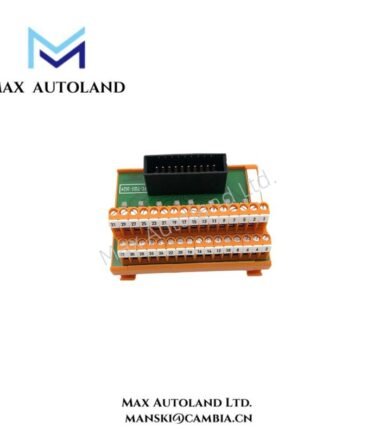

FC-TSDI-1624 Honeywell FSC Safe digital input FTA
