Overview

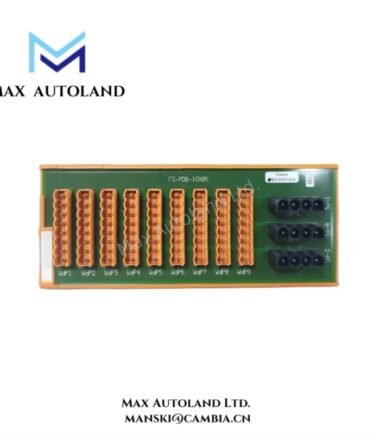

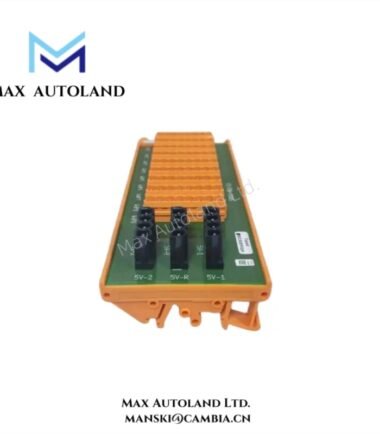

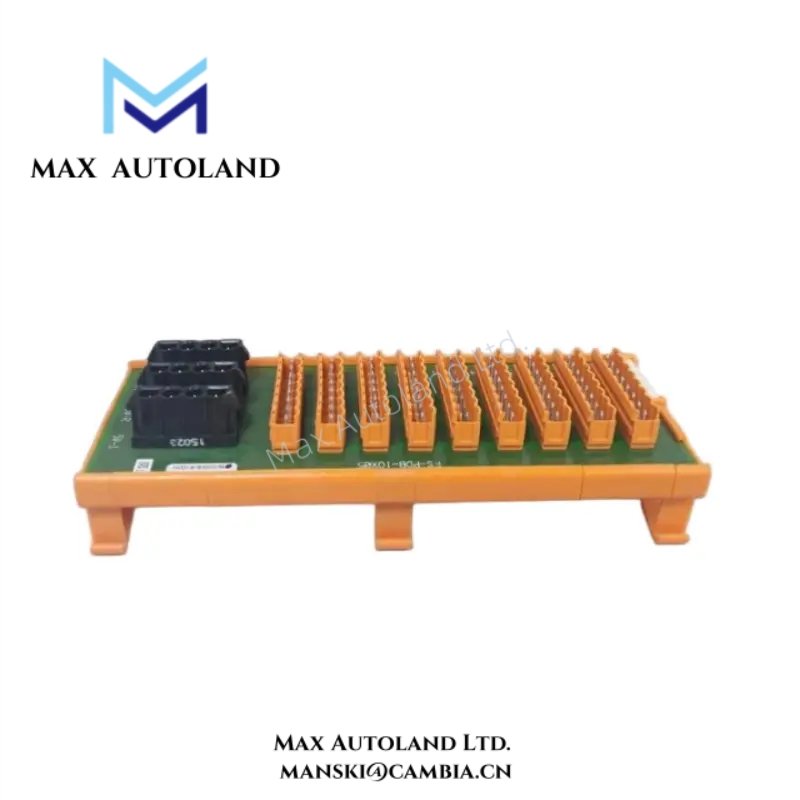

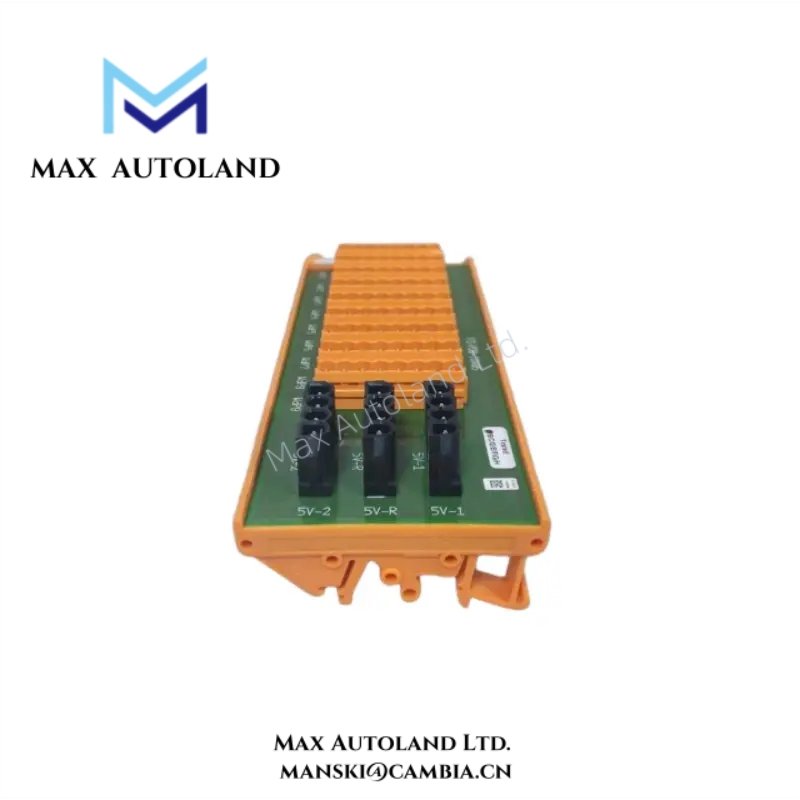

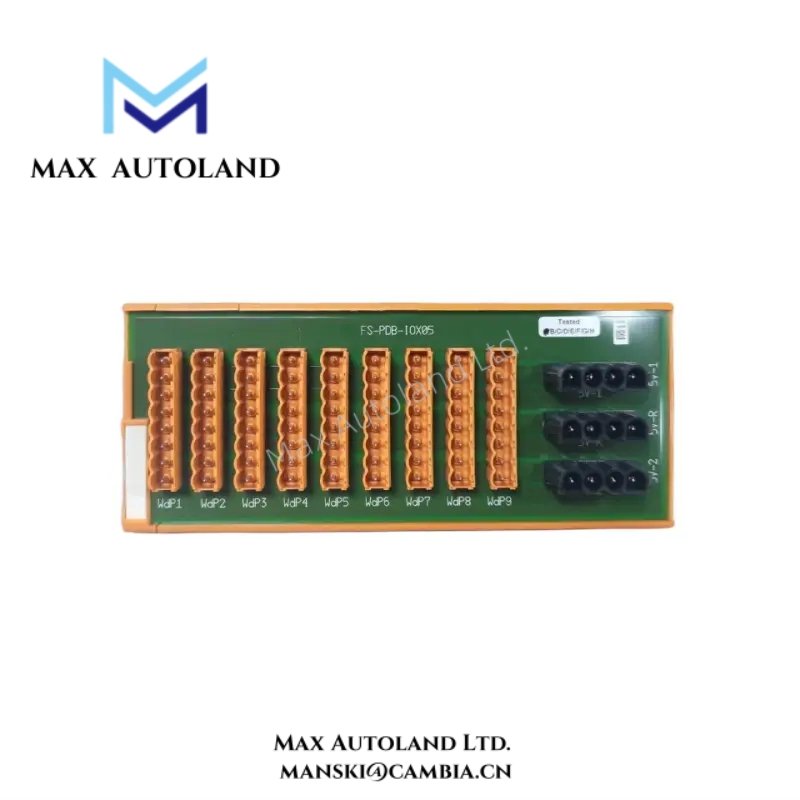

The FS-PDB-IOX05 is a high-performance power distribution board designed for Honeywell FSC Series safety and control systems.
It delivers reliable 24 VDC power to multiple digital I/O modules, ensuring stable operation across critical industrial applications.
Moreover, the module supports both standard and redundant FSC architectures, providing uninterrupted power for essential control functions.
Therefore, engineers choose the FS-PDB-IOX05 to maintain high system availability and minimize the risk of power-related failures.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | FS-PDB-IOX05 |
| Product Type | Power Distribution Board |
| Series | Honeywell FSC Series |
| System Category | Safety Instrumented System (SIS) |
| Function | Distributes 24 VDC power to FSC digital I/O modules |
| Output Voltage | Nominal 24 VDC |
| Output Current | Industrial-rated per connected module |
| Redundancy Support | Yes, supports system-level redundant power configurations |
| Diagnostics | Integrated monitoring and fault detection |
| Mounting Type | FSC system rack |
| Form Factor | Modular plug-in design |
| Hot Swap Capability | Supported in compatible FSC systems |
| Communication Interface | Backplane connection to FSC modules |
| Environmental Rating | Industrial control cabinet environment |
| EMC Immunity | Designed for harsh electromagnetic conditions |
| Lifecycle Support | Long-term Honeywell platform availability |
| Typical Industries | Oil & Gas, Chemical, Power, Process Industries |
FAQ
Q1: What is the primary function of the FS-PDB-IOX05 module?
A1: The module actively distributes 24 VDC power to Honeywell FSC digital I/O modules for reliable industrial operation.
Q2: Does the module support redundant power configurations?
A2: Yes, it supports system-level redundancy to maintain continuous operation during component or power failures.
Q3: Can it operate in harsh industrial environments?
A3: Absolutely, it withstands temperature variations, vibration, and electromagnetic interference for stable operation.
Q4: Is hot-swap replacement supported?
A4: Yes, engineers can replace the module without interrupting connected FSC digital I/O systems.
Q5: Which industries typically use this module?
A5: For instance, oil and gas, chemical processing, power generation, and other process-critical industries rely on it.
Q6: How does the FS-PDB-IOX05 improve overall system reliability?
A6: Moreover, integrated diagnostics detect anomalies early, preventing unexpected downtime and ensuring safe operations.
