Overview

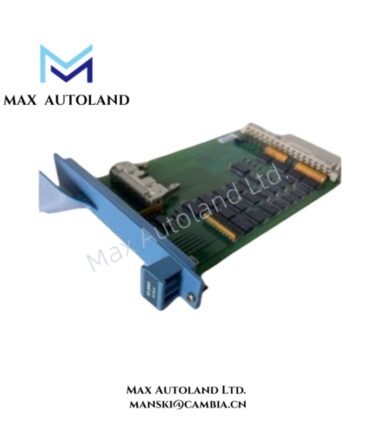

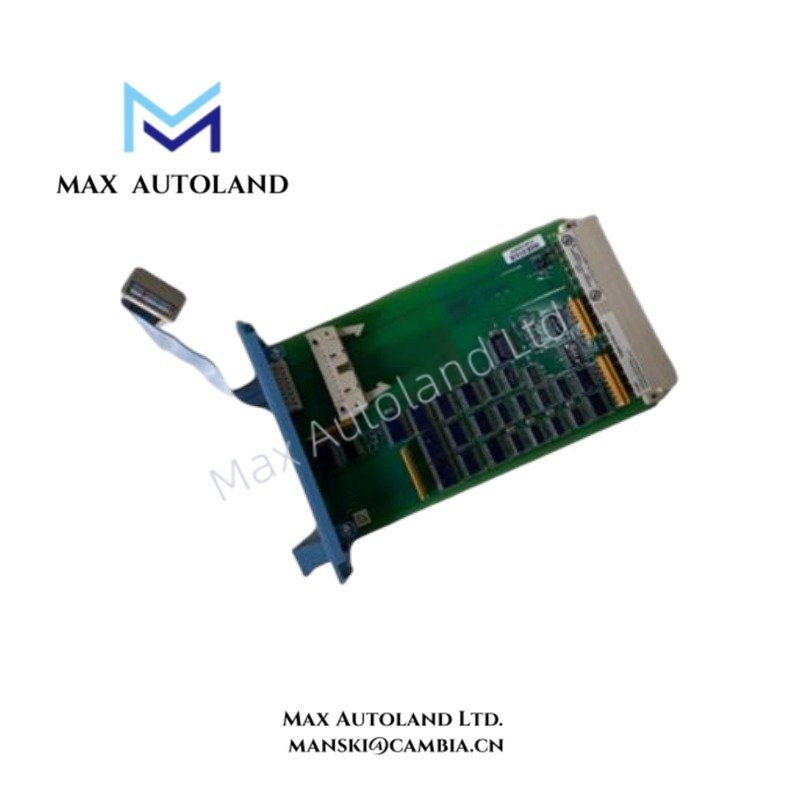

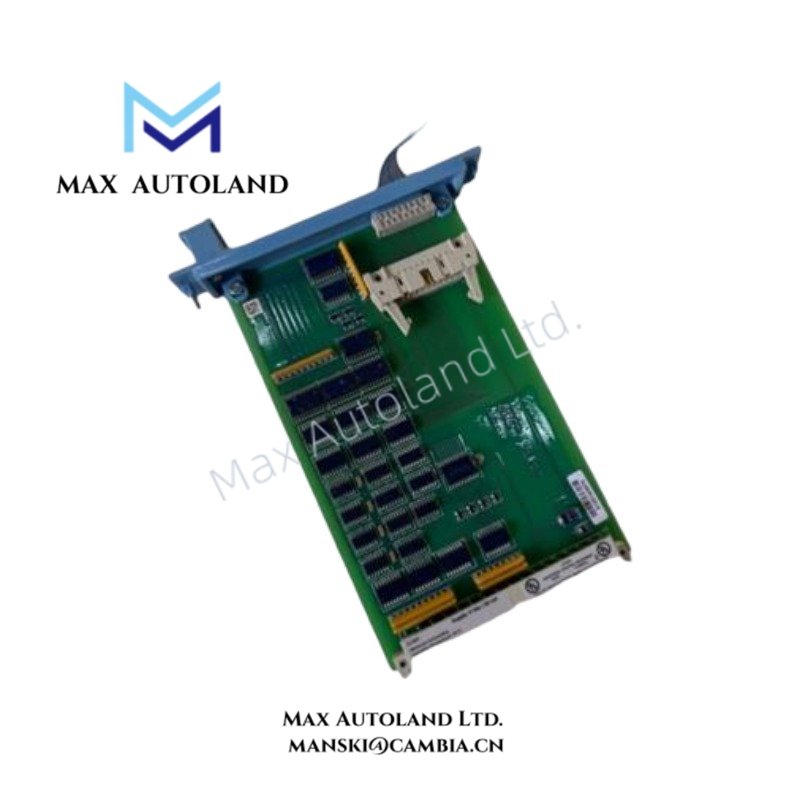

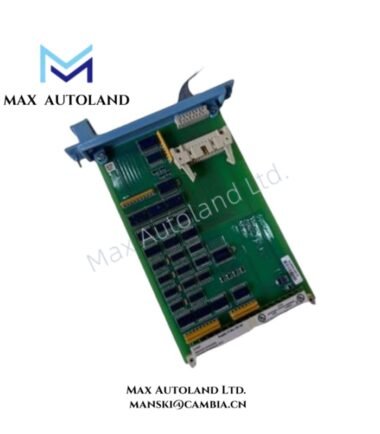

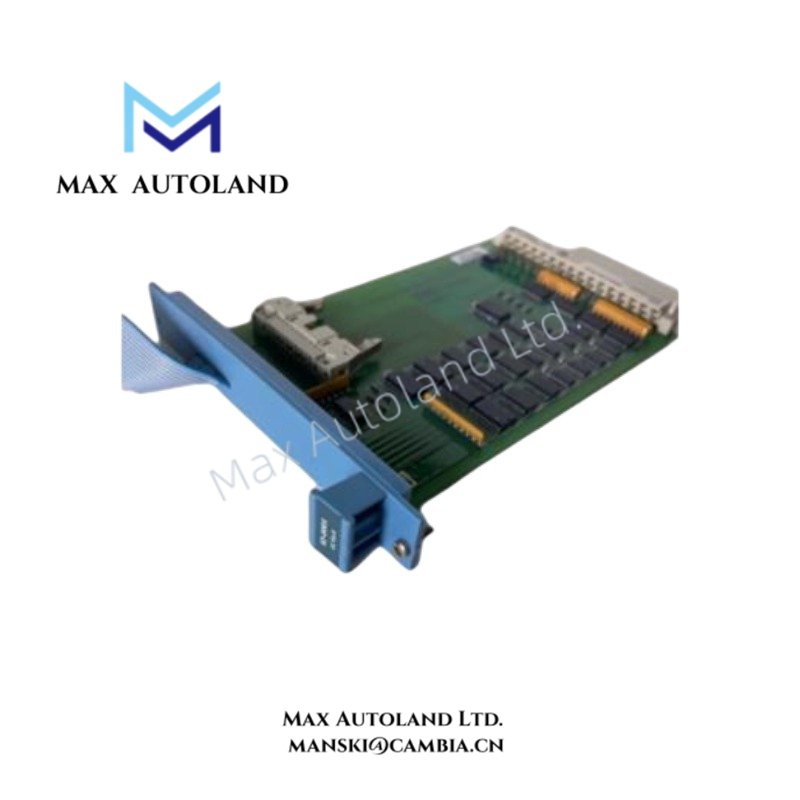

Configured for 16-point signal extension within an industrial I/O architecture, the Honeywell FC-TERM-0001 (TERM-0001 IO Extender Module) provides direct electrical interfacing for DI, DO, AI, and AO signal channels. The module accepts a 24 VDC supply and specifies 1500 V AC isolation between electrical domains.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FC-TERM-0001 |
| Spare Model | TERM-0001 |
| Brand | Honeywell |
| Product Type | IO Extender Module |
| Origin | USA |
| Dimensions | 3.7 x 1.9 x 0.7 cm estimated shipping size |
| Weight | Not specified |
| Input Voltage | 24 VDC (18-36 V) |
| Power Consumption | 2.5 W typical |
| Power Requirement | 50 mA |
| Isolation | 1500 V AC |
| Channel Capacity | 16 points |
| Signal Types | DI, DO, AI, AO |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -50 deg C to +85 deg C |
| Humidity | 5-95% RH, condensing |
| Vibration | 5 g at 10-500 Hz |
| Approvals | CE, TUV, UL, CSA, FM |
| Tariff Code | 8537101190 |
| Place of Shipment | Xiamen, China |
Honeywell I/O Signal Interface and Isolation
The FC-TERM-0001 supports a 16-point channel capacity across DI, DO, AI, and AO signal types. The specified 1500 V AC isolation separates electrical domains and limits direct coupling between isolated circuits.
The module operates from a 24 VDC supply with an allowable input range of 18-36 V. The supplied specifications state a typical power consumption of 2.5 W and a power requirement of 50 mA. These values are listed separately because the source data does not define their measurement conditions.
The input data does not specify a particular HART, FOUNDATION Fieldbus, Profibus PA, or other field communication protocol. Therefore, no protocol capability is assigned to the FC-TERM-0001.
Frequently Asked Questions
Q: What signal types does the FC-TERM-0001 support?
A: The specified signal types are DI, DO, AI, and AO, with a total channel capacity of 16 points.
Q: What supply voltage does the module require?
A: The module accepts 24 VDC with an input range of 18-36 V. The supplied data also lists a 50 mA power requirement.
Q: What environmental conditions does the module support?
A: The specified operating temperature is -40 deg C to +70 deg C. Storage temperature is -50 deg C to +85 deg C, with 5-95% RH condensing humidity and vibration of 5 g at 10-500 Hz.
Field Installation Guidelines
Install the FC-TERM-0001 according to the applicable Honeywell system installation documentation and the equipment cabinet wiring design.
- Verify the 24 VDC supply before connecting the module.
- Keep supply and signal wiring within the cabinet wiring scheme specified for the host system.
- Separate signal wiring from high-voltage and high-current conductors where practical.
- Maintain the specified isolation boundaries when routing conductors between electrical domains.
- Terminate cable shields according to the system grounding design and avoid unintended ground loops.
- Confirm DI, DO, AI, and AO channel assignments before field wiring.
- Check terminal polarity and conductor identification before energizing the circuit.
- Verify cabinet grounding and protective bonding before system startup.
- Keep the module within the specified temperature, humidity, and vibration limits during operation.
