Overview

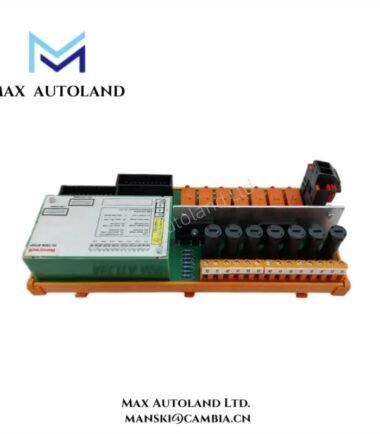

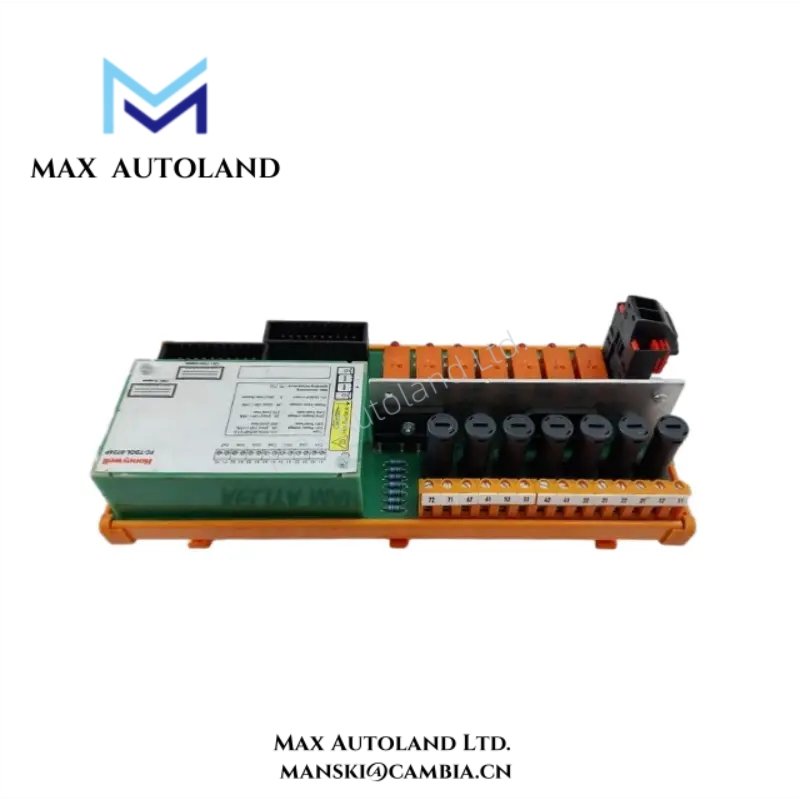

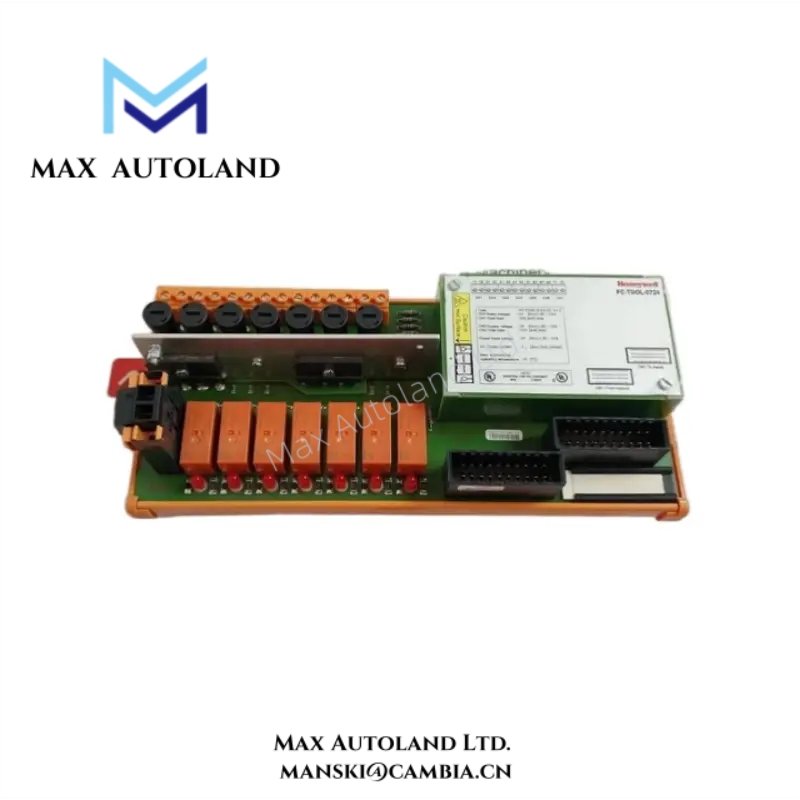

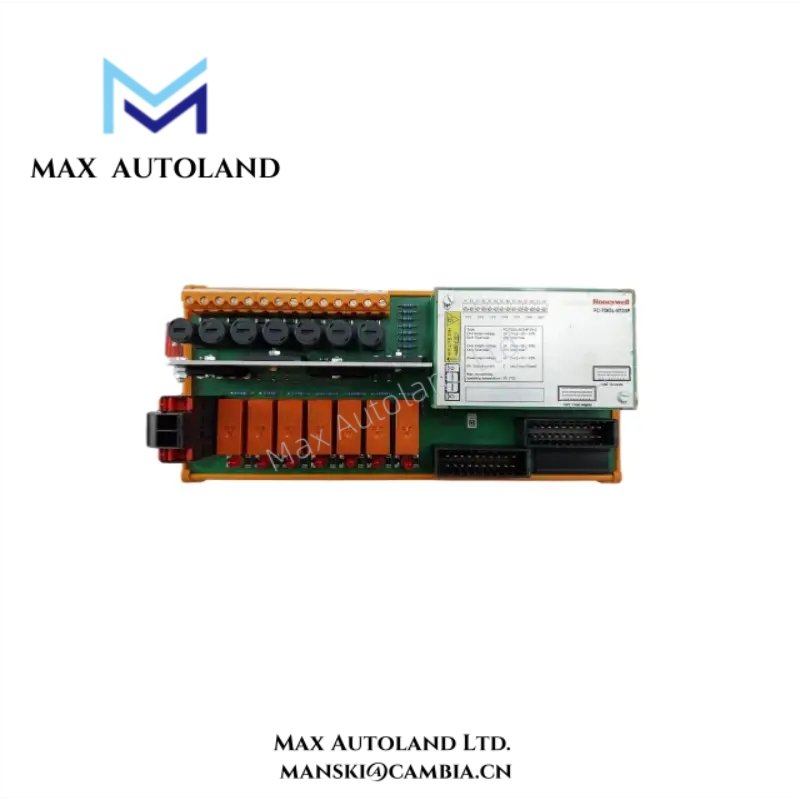

The FC-TDOL-0724 is a precision analog input module designed for Honeywell FSC Series safety and control systems.
It captures and processes analog signals from field devices with high accuracy and deterministic timing.
Moreover, the module integrates seamlessly with FSC controllers, providing reliable signal acquisition across industrial safety environments.
Therefore, engineers choose the FC-TDOL-0724 to ensure consistent measurement, fast system response, and predictable operation.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | FC-TDOL-0724 |
| Product Type | Analog Input Module |
| Series | Honeywell FSC Series |
| System Category | Safety Instrumented System (SIS) |
| Input Type | Analog voltage and current |
| Channel Count | 8–16 configurable input channels (depending on system configuration) |
| Input Range | 0–10 V, 4–20 mA (software-configurable) |
| Resolution | High-precision 16-bit signal processing |
| Accuracy | ±0.1% of full scale typical |
| Redundancy Support | Supported at system-level configuration |
| Communication Interface | FSC system backplane |
| Controller Compatibility | Honeywell FSC controllers |
| Diagnostics | Channel monitoring, health checks, and fault reporting |
| Response Time | Deterministic, real-time acquisition |
| Mounting Type | FSC system rack or cabinet |
| Form Factor | Modular plug-in design |
| Hot Swap Capability | Supported in compatible system architectures |
| Environmental Rating | Industrial control cabinet environment |
| EMC Immunity | Designed for harsh electromagnetic conditions |
| Typical Lifecycle | Long-term Honeywell platform support |
| Primary Industries | Oil & Gas, Chemical, Power, Process Industries |
FAQ
Q1: What is the main function of the FC-TDOL-0724 module?
A1: It acquires analog signals from field devices for Honeywell FSC safety and control systems.
Q2: How many input channels does the FC-TDOL-0724 support?
A2: It supports 8–16 configurable analog input channels depending on system configuration.
Q3: Can the module handle both voltage and current signals?
A3: Yes, it supports 0–10 V and 4–20 mA signals, configurable via FSC engineering tools.
Q4: Does the module support redundancy?
A4: Yes, system-level redundancy is supported to maintain continuous signal acquisition.
Q5: Can the module be replaced without rewiring field connections?
A5: Yes, hot-swap capability allows replacement while preserving existing wiring.
