Overview

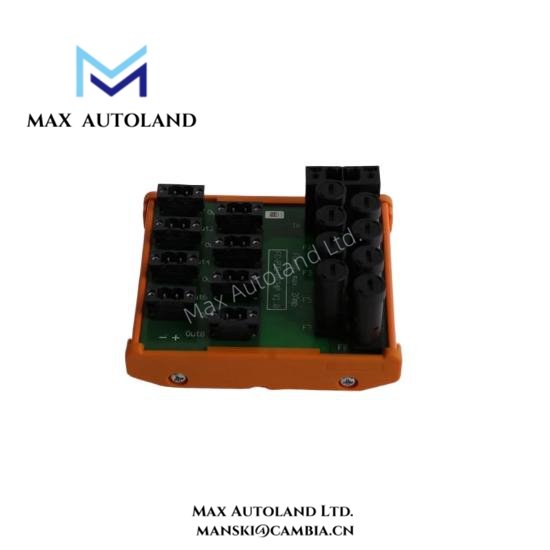

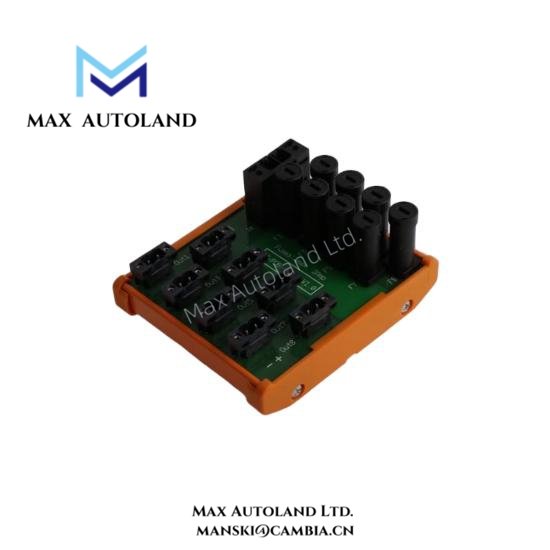

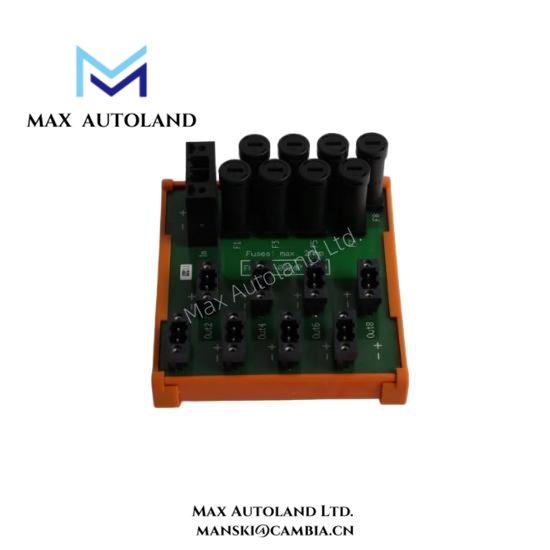

The FC-PDB-0824 from Honeywell serves as a centralized power distribution board for FSC Series control systems.
It delivers regulated 24 VDC power to controller modules, I/O modules, and auxiliary components.
Moreover, the board ensures stable operation under varying load conditions while protecting modules from overcurrent events.
As an integral FSC Series component, FC-PDB-0824 integrates directly with Honeywell controller racks and safety I/O modules.
Specification
| Specification Item | Details |
|---|---|
| Model Number | FC-PDB-0824 |
| Manufacturer | Honeywell |
| Product Series | FSC Series |
| Product Type | Power Distribution Board |
| Output Voltage | 24 VDC nominal |
| Number of Power Channels | 8 distribution outputs |
| Current Rating per Channel | Up to 5 A per output |
| Input Voltage | 24 VDC nominal from FSC power module |
| Status Indicators | Front-panel LEDs for each output |
| Overcurrent Protection | Integrated fuses per channel |
| Backplane Interface | FSC Series rack connector |
| Module Slot Requirement | 1 FSC rack slot |
| Power Consumption | Approximately 2 W for board operation |
| Energy Storage Components | Integrated capacitors for voltage stabilization |
| Mechanical Construction | Industrial-grade PCB assembly |
| Cooling Method | Passive convection cooling |
| Approximate Dimensions (W×H×D) | 40 × 130 × 150 mm |
| Approximate Weight | 0.55 kg |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Installation Location | FSC Series control rack |
| Typical Applications | Module power distribution, industrial control, redundant control systems |
FAQ
Q1: Is the FC-PDB-0824 a brand-new original Honeywell product?
A1: Yes, every FC-PDB-0824 we supply is brand-new, factory original, and manufactured by Honeywell.
Q2: Do you have the FC-PDB-0824 in stock?
A2: Yes, we maintain ready stock of FC-PDB-0824 boards for immediate shipment.
Q3: How fast is shipping after order confirmation?
A3: We ship FC-PDB-0824 within three days to two weeks depending on order quantity.
Q4: Which shipping carriers are commonly used?
A4: We typically ship FC-PDB-0824 using DHL and other trusted international couriers.
Q5: How many power outputs does the FC-PDB-0824 support?
A5: The FC-PDB-0824 supports 8 individual 24 VDC power channels for FSC Series modules.
Q6: What return policy applies if quality issues occur?
A6: We support returns for FC-PDB-0824 within 30 days if any verified quality issues arise.
