Overview

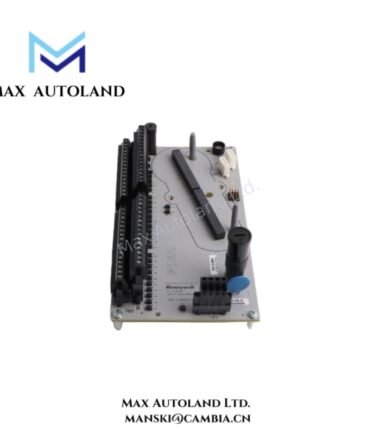

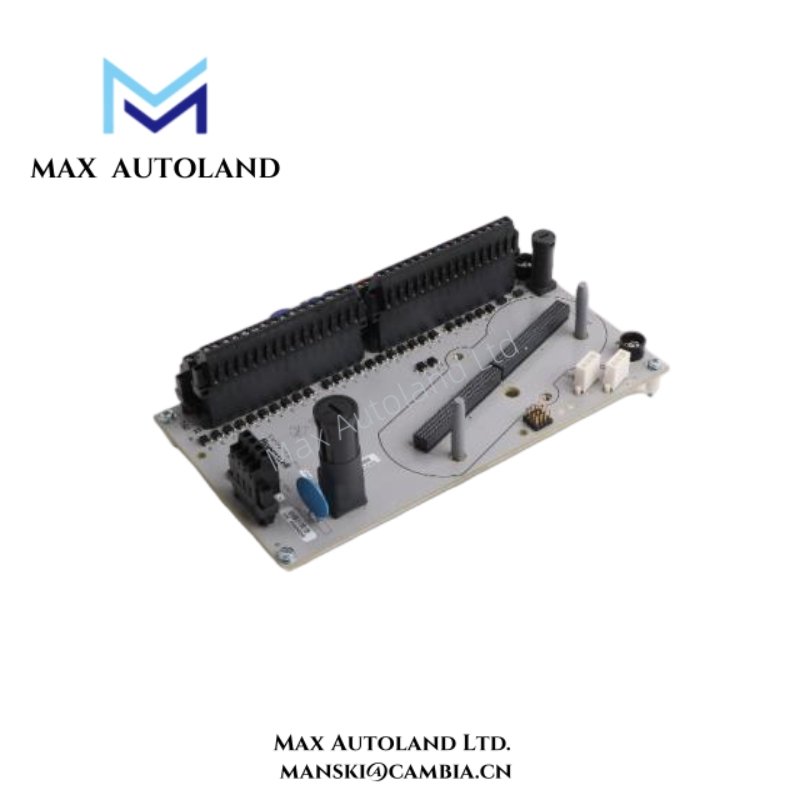

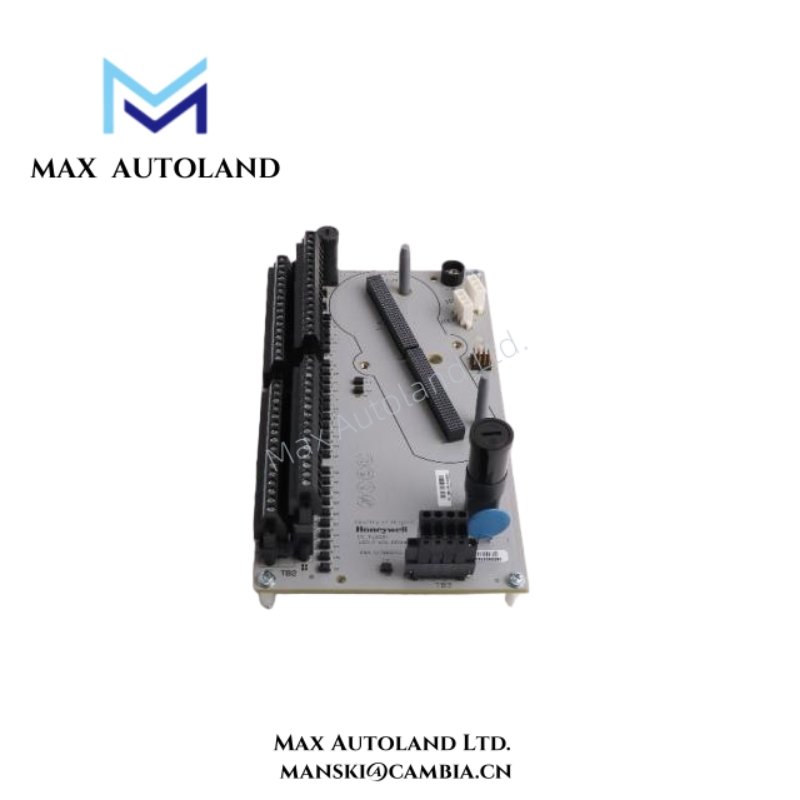

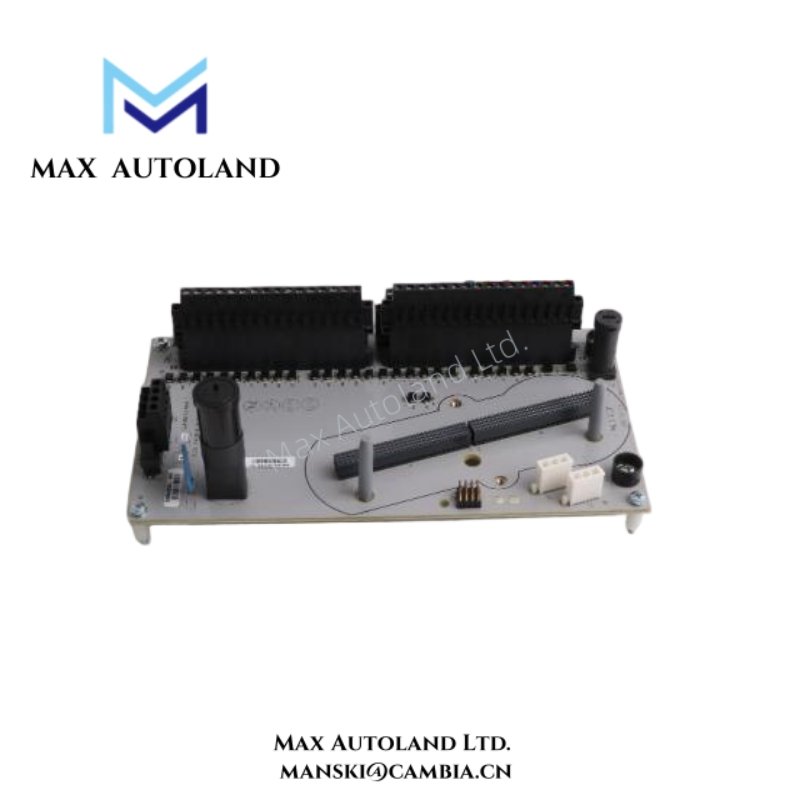

The Honeywell CC-TUIO31 Universal Input/Output IOTA offers versatile signal acquisition for Experion PKSC 300 automation systems. Moreover, it provides reliable analog and digital I/O processing, ensuring accurate measurement and control. Its industrial-grade construction supports demanding operational environments, while modular design enables seamless integration into control racks. Therefore, engineers can deploy this IOTA to enhance system reliability and simplify maintenance procedures.
Specification
| Parameter | Specification |
|---|---|
| Product Model | CC-TUIO31 |
| Manufacturer | Honeywell |
| Series | Experion PKSC 300 |
| Module Type | Universal Input/Output IOTA |
| Analog Input Channels | 8 |
| Analog Input Types | 0–20 mA, 4–20 mA, 0–10 V, RTD/PT100 support |
| Analog Input Accuracy | ±0.1% of full scale |
| Analog Input Resolution | 16-bit |
| Analog Output Channels | 4 |
| Analog Output Types | 0–20 mA, 4–20 mA |
| Analog Output Accuracy | ±0.1% of full scale |
| Analog Output Resolution | 16-bit |
| Digital Input Channels | 8 |
| Digital Input Types | Dry contact, logic voltage |
| Digital Input Voltage | 24 VDC nominal |
| Digital Output Channels | 4 |
| Digital Output Types | Relay / transistor output |
| Digital Output Current Rating | 0.5 A max per channel |
| Digital Output Voltage | 24 VDC / 250 VAC max (relay) |
| Power Supply | 24 VDC nominal |
| Power Consumption | < 10 W typical |
| Communication Interface | PKSC 300 backplane / bus |
| Module Mounting | Rack-mounted |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | –40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Electrical Isolation | 500 VDC between analog and digital circuits |
| Signal Update Rate | 10–50 ms (configurable per signal type) |
| LED Indicators | Status, communication, module health |
| Diagnostics Features | Remote diagnostics, error logging, module health monitoring |
| Maintenance | Hot-swappable, minimal maintenance required |
| Compliance / Standards | CE, UL, FCC, RoHS |
FAQ
Q1: What is the main function of the CC-TUIO31 module?
A1: It collects and processes universal analog and digital signals for Experion PKSC 300 systems.
Q2: How many input and output channels does it support?
A2: It supports 8 analog/digital inputs and 4 analog/digital outputs per module.
Q3: Is it compatible with other Honeywell PKSC modules?
A3: Yes. It integrates seamlessly with Experion PKSC 300 series modules.
Q4: Can it operate in harsh industrial environments?
A4: Yes. It is designed to withstand high temperature, humidity, and electrical noise.
Q5: Is maintenance complex for this IOTA module?
A5: No. Its modular and robust design ensures minimal maintenance requirements.
