Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

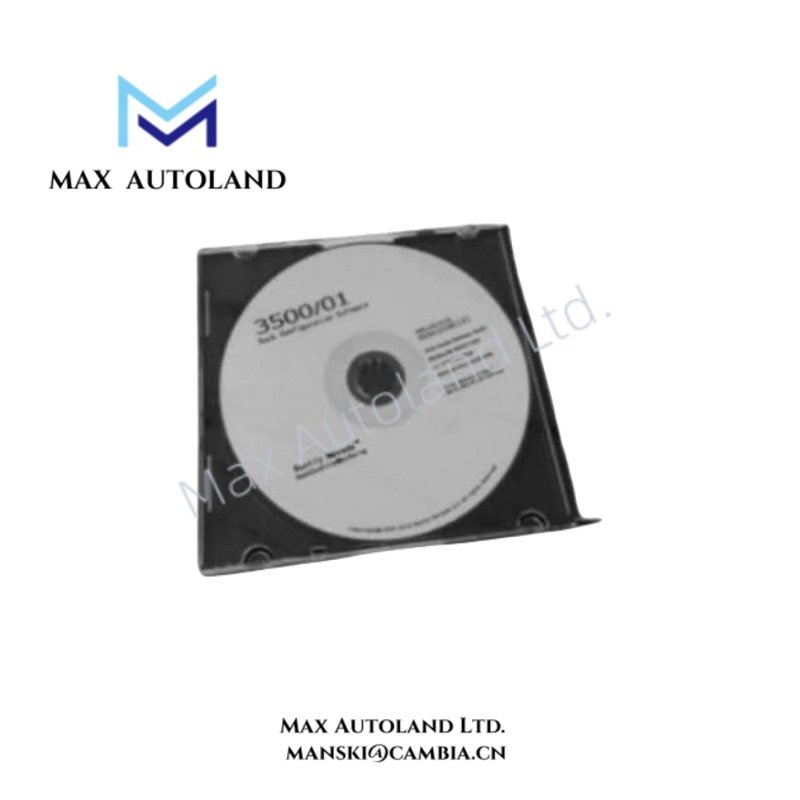

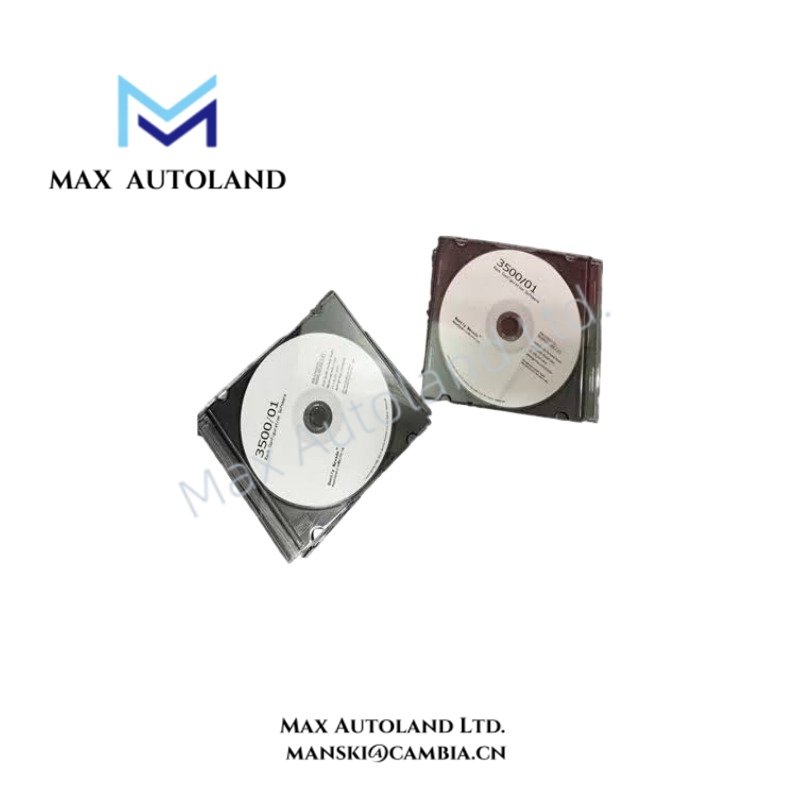

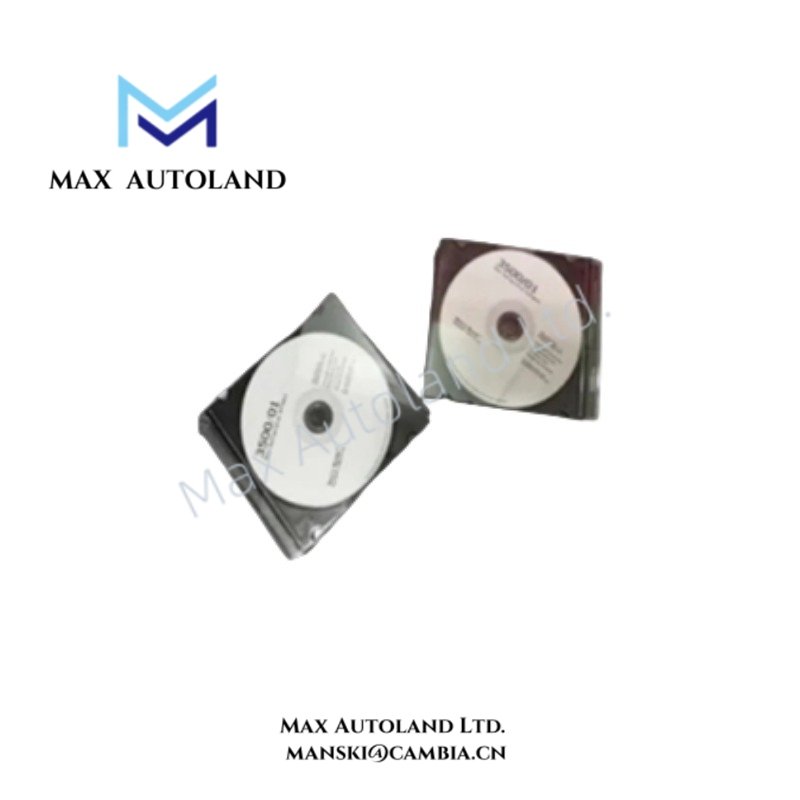

| Model | 3500/01 129133-01 |
| Brand | Bently Nevada (Baker Hughes) |
| Product Type | Rack Configuration Software |
| Series Compatibility | Bently Nevada 3500 Series Machinery Protection System |
| Origin | USA |
| Operating Temp | Dependent on host computer operating environment |
| Power Consumption | Supplied by host computer system; no direct rack power requirement |
| Supported Modules | 3500 Series I/O, Prox/Seismic, Position, Relay, and monitoring modules |
| Operating System | Windows-based platform, including Windows 7 and Windows Server environments |
| Hardware Requirement | Intel Pentium processor or equivalent, 128 MB RAM minimum, 35 MB available storage |
| Communication Interface | RS232 serial communication, USB adapter connection, and compatible 3500 rack communication interfaces |
| Configuration Functions | Channel setup, alarm limits, relay logic, module parameters, and rack settings |
Eddy-Current Probe Scaling and Machinery Monitoring Configuration
The 3500/01 software provides configuration functions for machinery protection modules that process eddy-current probe signals. Therefore, engineers can define probe scaling parameters, channel measurement ranges, and monitoring thresholds according to installed transducer characteristics.
The configuration workflow supports validation of proximity measurement settings, including gap voltage reference management. For Bently Nevada proximity systems, engineers commonly verify probe operating conditions around the -10 VDC gap voltage target to maintain correct shaft displacement measurement behavior.
The software also supports configuration tasks related to rotor dynamics monitoring. Additionally, technicians can adjust channel parameters for vibration, position, and speed measurements while maintaining signal processing consistency across the 3500 rack architecture.
Frequently Asked Questions
Q: Does the 3500/01 software communicate directly with all 3500 rack modules?
A: The software communicates with supported 3500 Series modules through compatible rack communication interfaces. Module availability depends on the installed rack configuration.
Q: Can the 3500/01 modify alarm and relay parameters?
A: Yes. The software allows authorized users to configure alarm thresholds, relay logic parameters, and channel settings within supported 3500 system configurations.
Q: Does the 3500/01 require dedicated rack power?
A: No. The software runs on a Windows-based host computer and does not consume power directly from the 3500 rack.
Field Installation Guidelines
Install the configuration software on a dedicated engineering workstation that meets the required operating system and hardware conditions.
Use approved communication cables or adapters when connecting the workstation to the 3500 rack interface. Keep communication wiring separated from high-voltage power cables to reduce electrical interference.
Verify serial communication settings, rack addressing, and module status before transferring configuration data. Maintain proper grounding practices for connected equipment and follow site-specific shielding requirements.
Before changing protection parameters, record the existing configuration file. Confirm channel assignments, sensor types, alarm limits, and relay actions after completing software configuration.
