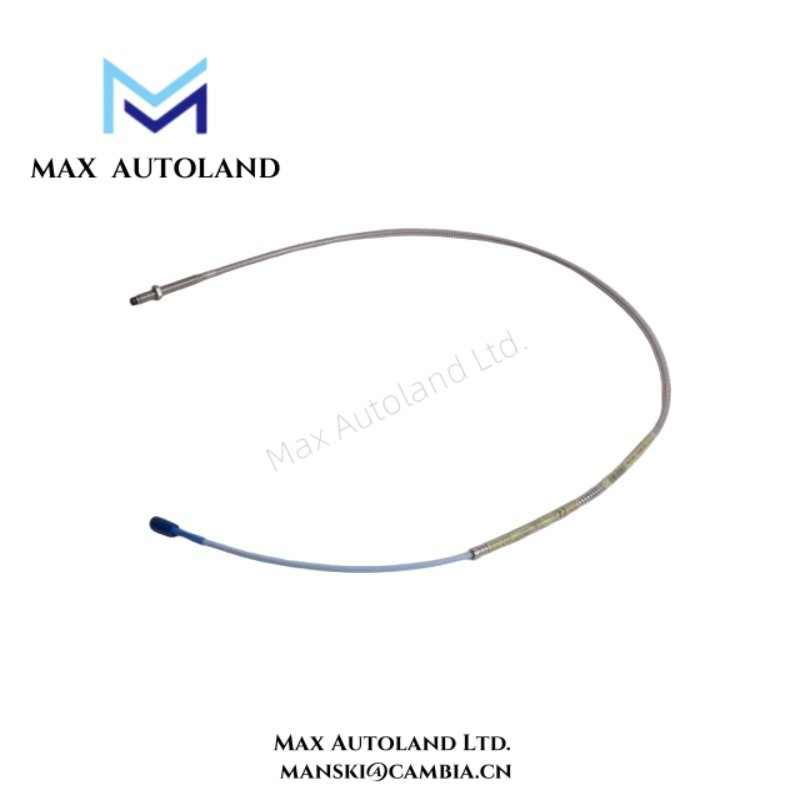

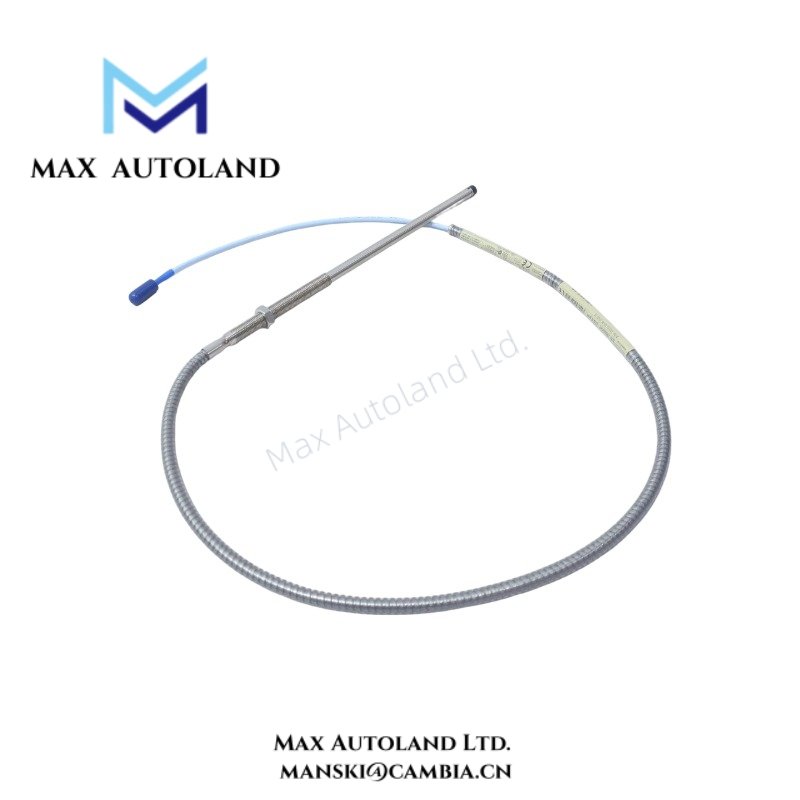

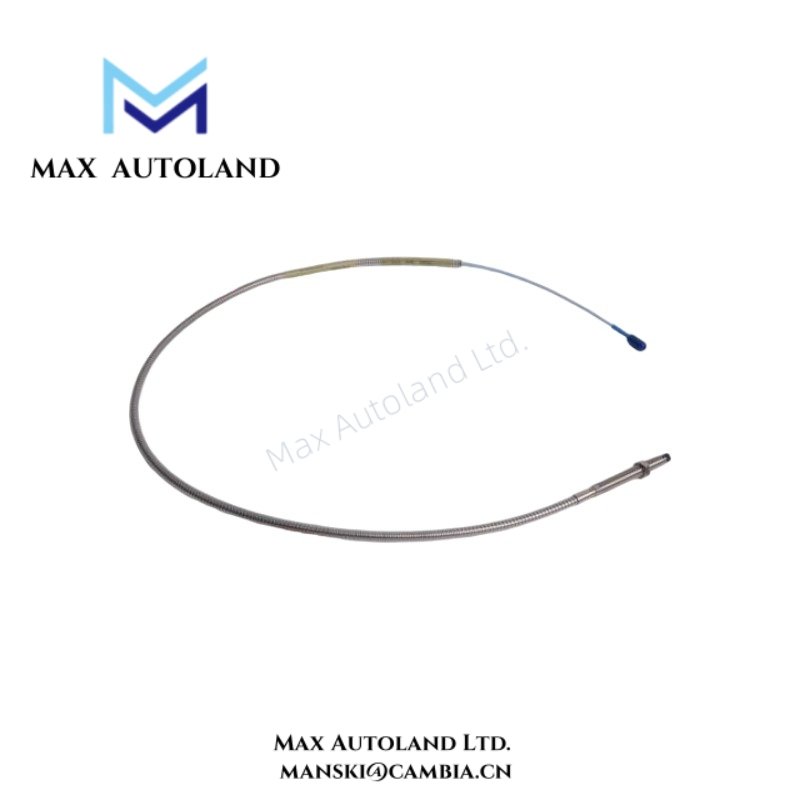

Bently Nevada 3300 XL 8 mm Proximity Transducer Proximity Sensors 330101-00-08-10-02-05

Eddy-Current Scaling and Gap Voltage Validation

The 3300 XL 8 mm transducer family operates as part of a calibrated probe-extension cable-driver chain. System scaling accuracy depends on matched component configuration and controlled cable length selection.

During commissioning, static gap voltage verification is typically used to confirm probe-to-target geometry. For conductive shaft targets, installers commonly validate bias behavior against expected negative DC operating regions associated with proximity probe systems. Deviations from expected gap response can indicate incorrect target metallurgy, mounting eccentricity, cable mismatch, or excessive mechanical runout.

Signal routing practices should minimize cross-talk coupling between adjacent probe channels, particularly where multiple radial vibration probes are installed around high-speed rotor assemblies.

Frequently Asked Questions

Q: Does this transducer support standalone operation without associated signal conditioning electronics?

A: No. The sensing probe operates as part of a complete transducer chain that includes compatible extension cable and driver or Proximitor electronics.

Q: Can the probe cable be shortened or field-spliced during installation?

A: Cable modification is not recommended unless explicitly permitted by manufacturer documentation. Electrical length changes alter calibration behavior and displacement scaling.

Q: Are hot-swap procedures applicable to ins

talled proximity probe assemblies?

A: Probe replacement procedures depend on the monitoring rack and connected electronics. Mechanical removal near operating rotating equipment normally requires site isolation and machine safety procedures.
