Overview
Moreover, the 3300 XL 8 mm system meets API 670 standards for linearity, temperature stability, and mechanical configuration. In addition, it ensures full interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for component matching or bench calibration. Backward compatibility with other 3300 series components further enhances installation flexibility in diverse machinery applications.
The system is suitable for both continuous monitoring and diagnostic measurements. With high reliability and robust performance, the 3300 XL 8 mm system supports Keyphasor reference and speed measurements, delivering accurate and repeatable results across industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Model | 330101-00-08-05-02-00 |

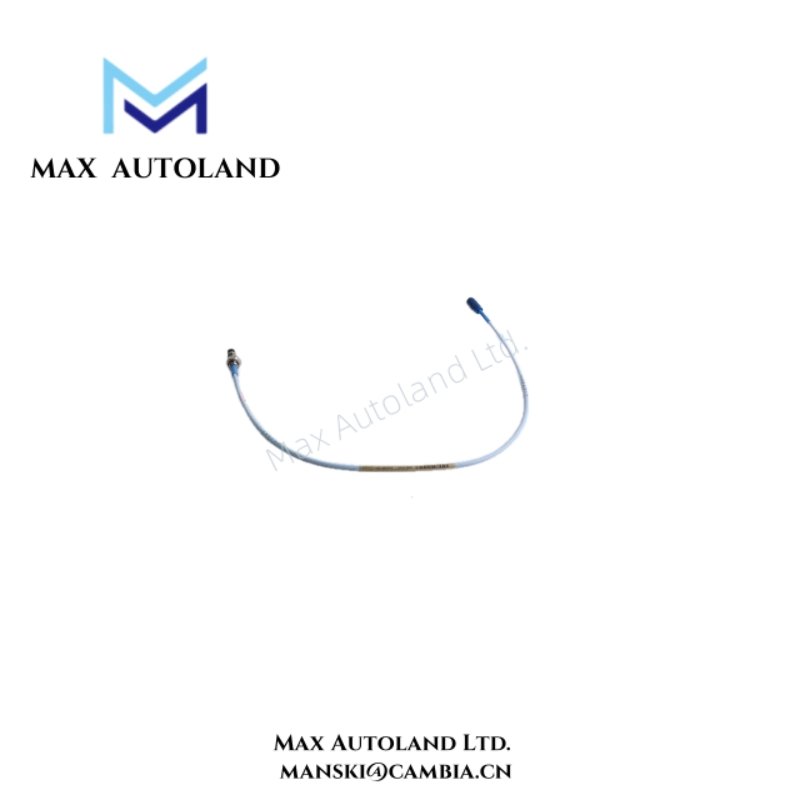

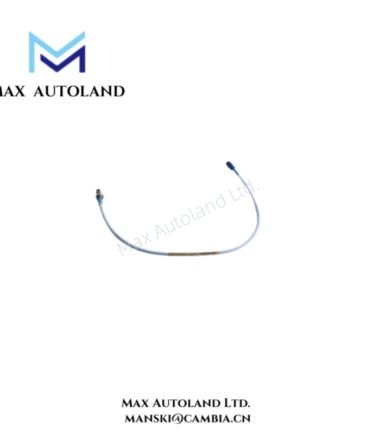

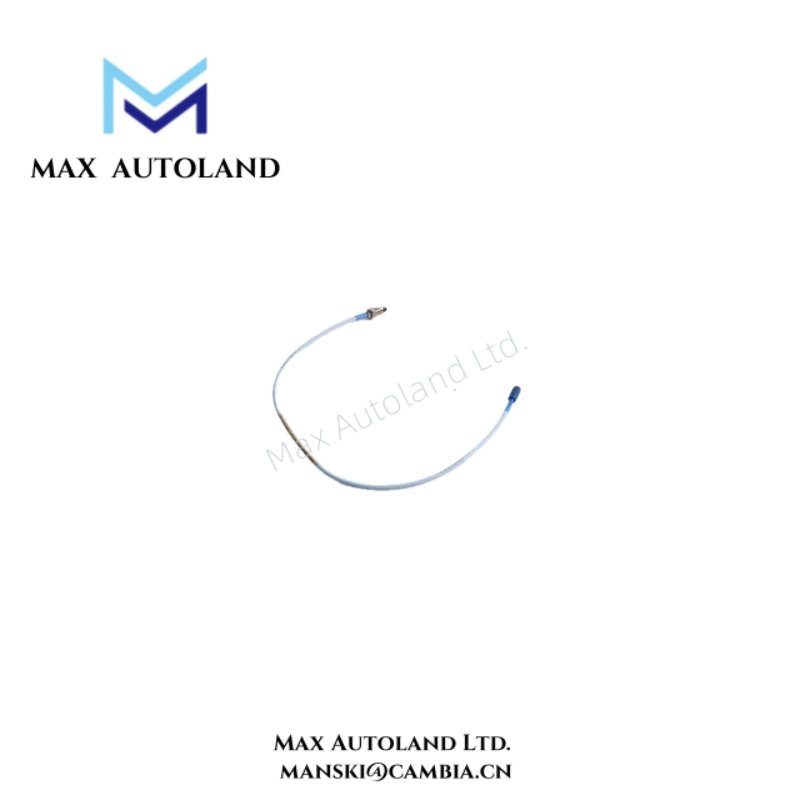

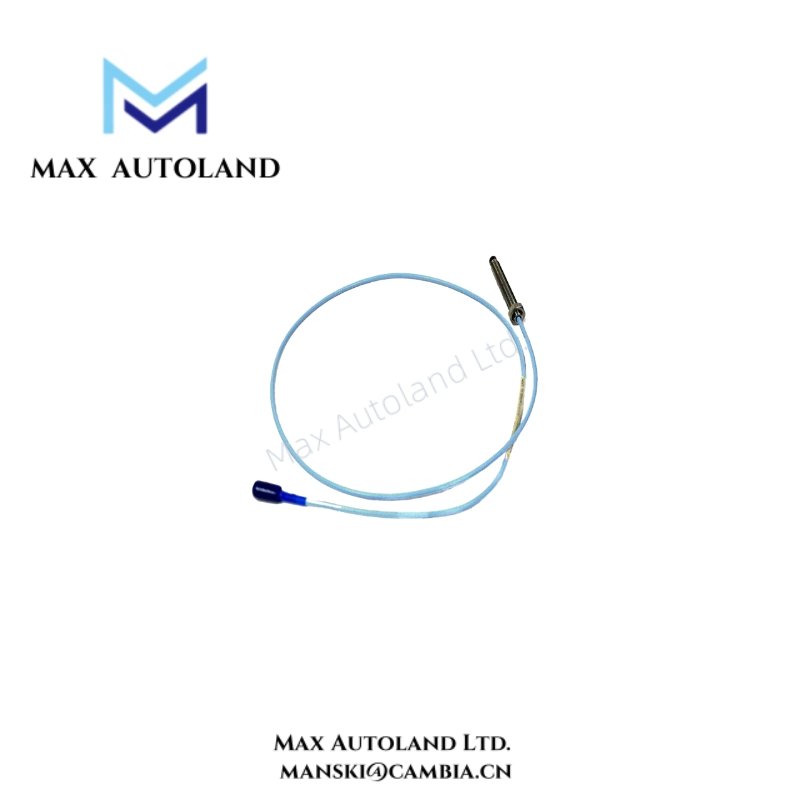

| Probe Type | 3300 XL 8 mm Proximity Probe |
| System Components | 1 probe, 1 extension cable, 1 Proximitor sensor |
| Output Signal | Voltage proportional to distance between probe tip and target |
| Power Supply | -17.5 Vdc to -26 Vdc (max 12 mA) |
| Supply Sensitivity | <2 mV change per volt change in input voltage |
| Output Resistance | 50 Ω nominal |
| Probe DC Resistance (RPROBE) | 0.5 m: 7.45 ± 0.50 Ω; 1.0 m: 7.59 ± 0.50 Ω; 1.5 m: 7.73 ± 0.50 Ω |
| 2.0 m: 7.88 ± 0.50 Ω; 3.0 m: 8.17 ± 0.50 Ω; 5.0 m: 8.73 ± 0.50 Ω | |
| 9.0 m: 9.87 ± 0.50 Ω | |
| Extension Cable DC Resistance (RCORE) | 3.0 m: 0.66 ± 0.10 Ω; 3.5 m: 0.77 ± 0.12 Ω; 4.0 m: 0.88 ± 0.13 Ω |
| 4.5 m: 0.99 ± 0.15 Ω; 6.0 m: 1.32 ± 0.21 Ω; 7.0 m: 1.54 ± 0.23 Ω | |
| 7.5 m: 1.65 ± 0.25 Ω; 8.0 m: 1.76 ± 0.26 Ω; 8.5 m: 1.87 ± 0.28 Ω | |
| Target Material | AISI 4140 steel |
| Probe Gap | 1.27 mm (50 mils) |
| Operating Temperature | +18°C to +27°C (+64°F to +80°F) standard conditions |
| Maximum Altitude | 2000 meters |
| Application | Vibration and position monitoring, Keyphasor reference, speed measurement |
Ordering Information
| Parameter | Specification |
|---|---|
| Total Length Option | 0.5 meter (1.6 feet) |
| Connector and Cable-Type Option | Miniature coaxial ClickLoc connector, standard cable |
| Agency Approval Option | Not required |
FAQ
A: It measures both static position and dynamic vibration accurately.
Q: Is the system compatible with older 3300 series probes?
A: Yes, it is fully backward compatible with non-XL 3300 5 mm and 8 mm probes.
Q: What is the standard probe gap?
A: The probe is typically gapped at 1.27 mm (50 mils) from the target.
Q: What power supply is required?
A: The system operates on -17.5 Vdc to -26 Vdc, consuming a maximum of 12 mA.
Q: Does it comply with API standards?
A: Yes, it fully meets API 670 requirements for linearity, temperature stability, and mechanical configuration.
