Overview

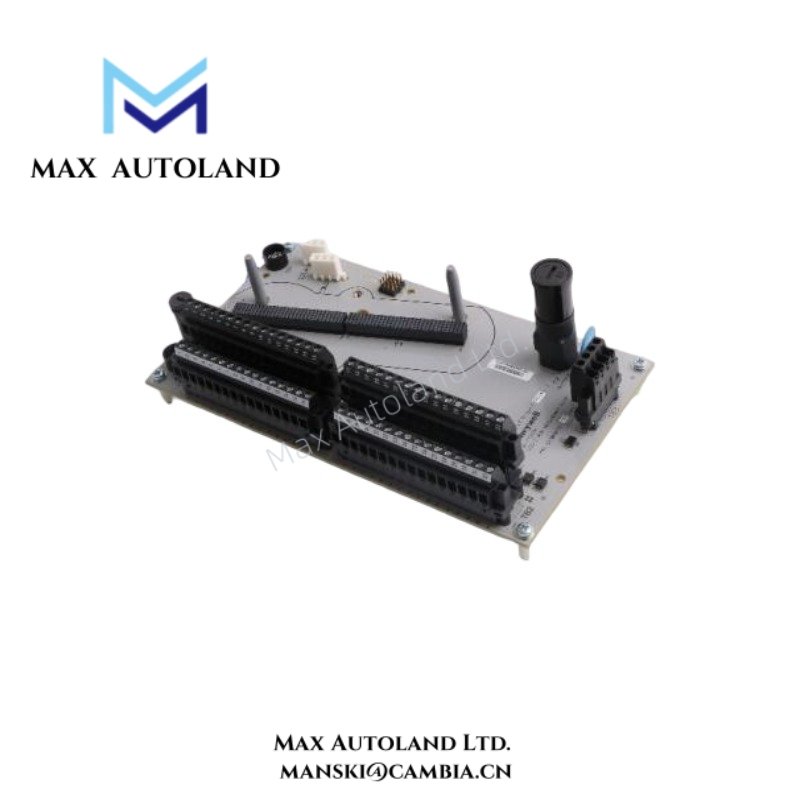

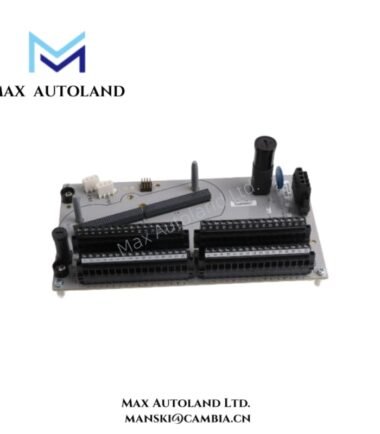

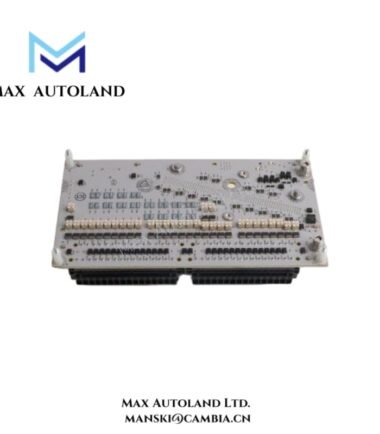

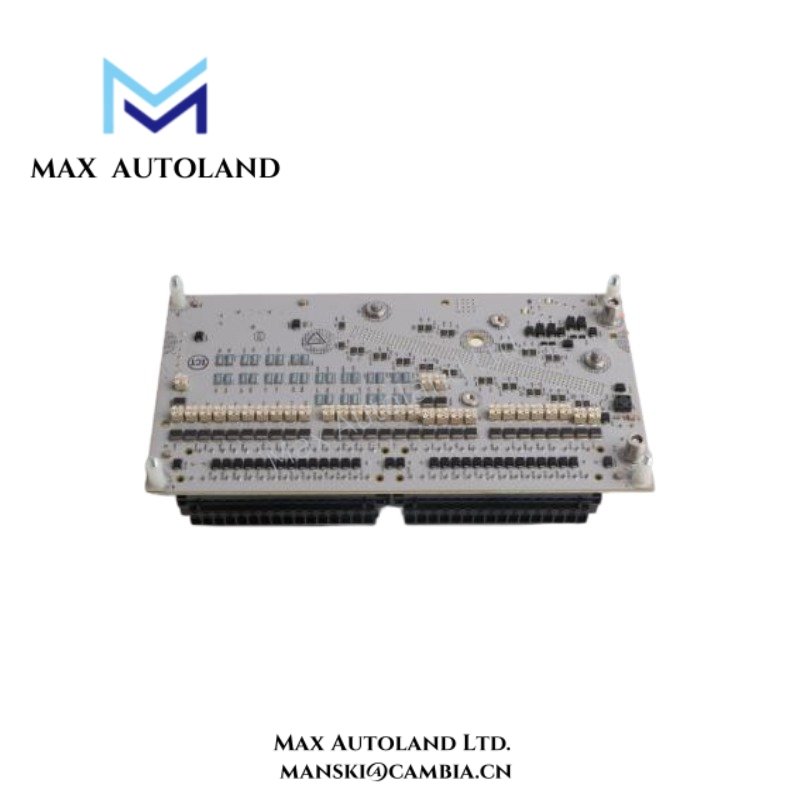

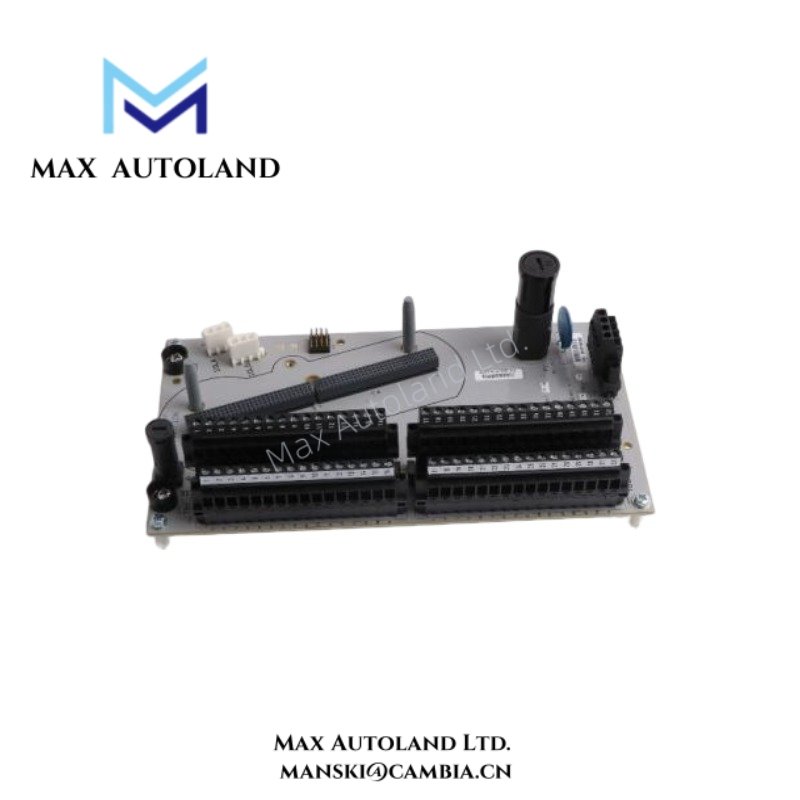

The DC-TUIO31 analog input module delivers precise signal acquisition for industrial control and monitoring applications.
Moreover, Honeywell designs the DC-TUIO31 for seamless integration within Experion Series-C I/O architectures.
Additionally, the module supports high-density input processing with stable performance in demanding industrial environments.
Therefore, engineers rely on DC-TUIO31 for accurate data collection and consistent control system operation.
Key Technical Features
The DC-TUIO31 provides multiple analog input channels for efficient signal handling in complex automation systems.
Furthermore, the module includes built-in isolation to protect control systems from electrical interference and signal distortion.
In addition, Honeywell equips the DC-TUIO31 with advanced signal conditioning for improved measurement accuracy and stability.
As a result, the module ensures reliable data acquisition across continuous industrial processes.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | DC-TUIO31 |
| Manufacturer | Honeywell |
| Series | Experion PKS Series-C I/O |
| Product Type | Analog Input Module |
| Input Channels | 32 channels (single-ended or differential configurable) |
| Input Signal Types | 4–20 mA, 0–20 mA, 0–10 V |
| Input Resolution | 16-bit high-resolution conversion |
| Input Accuracy | ±0.1% of full scale typical |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Input Impedance | ≥250 Ω for current inputs |
| Data Conversion | High-speed A/D conversion per channel |
| Scan Time | ≤100 ms typical for full channel update |
| Power Supply | Backplane powered via Series-C carrier |
| Power Consumption | Approx. 5–8 W |
| Heat Dissipation | Optimized thermal design for continuous operation |
| Dimensions | Approx. 200 mm × 150 mm × 50 mm |
| Weight | Approx. 0.8 kg |
| Mounting | Standard Series-C I/O carrier mounting |
| Communication Interface | Backplane communication with controller |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Enclosure Rating | Industrial-grade module housing |
| Redundancy Support | Non-redundant configuration |
| Energy Storage | None (active electronic module) |
FAQ
Q1: What signal types does the DC-TUIO31 support?
A1: The DC-TUIO31 supports 4–20 mA, 0–20 mA, and 0–10 V analog input signals.
Q2: How many input channels does the module provide?
A2: The DC-TUIO31 provides 32 high-density analog input channels for efficient signal acquisition.
Q3: Does the module include isolation protection?
A3: Yes, the DC-TUIO31 includes channel isolation to protect against electrical interference and noise.
Q4: Is the product available in stock and how fast is shipping?
A4: The DC-TUIO31 is brand new original with stock available, and shipping takes 3 days to 2 weeks.
Q5: Which logistics services do you use?
A5: We commonly use DHL and similar carriers to deliver the DC-TUIO31 quickly and safely.
