Overview
Specification
| Parameter | Specification / Details |
|---|---|

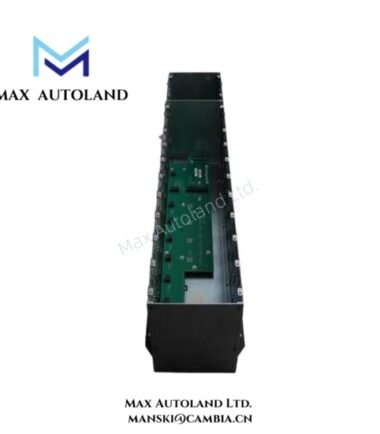

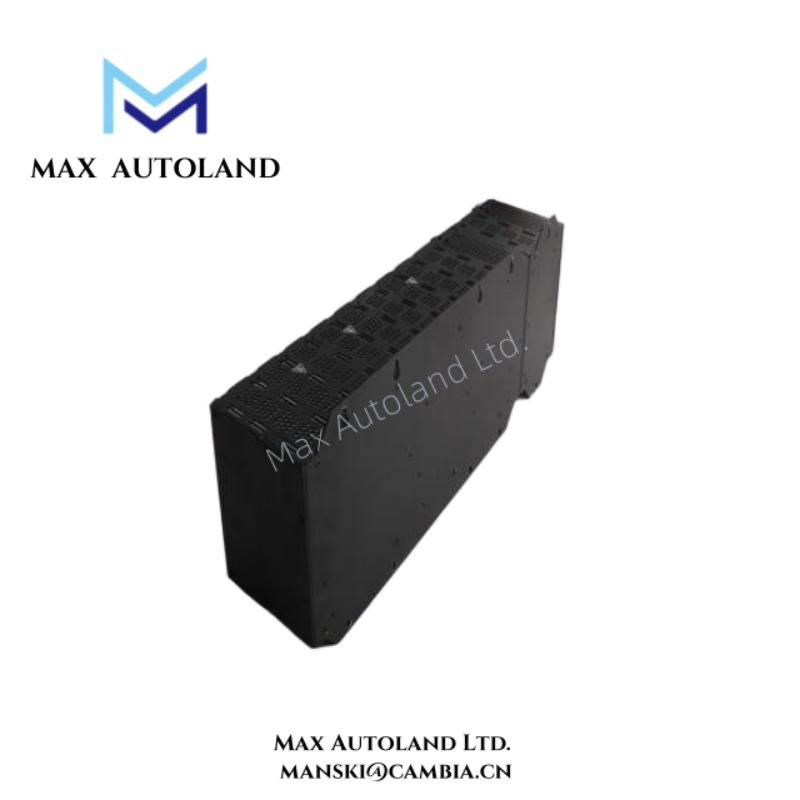

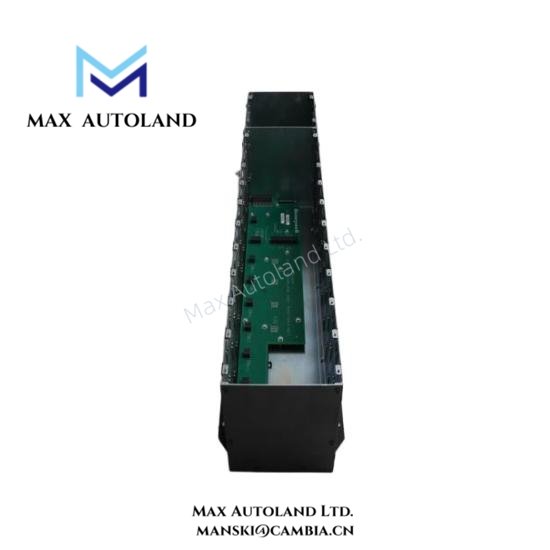

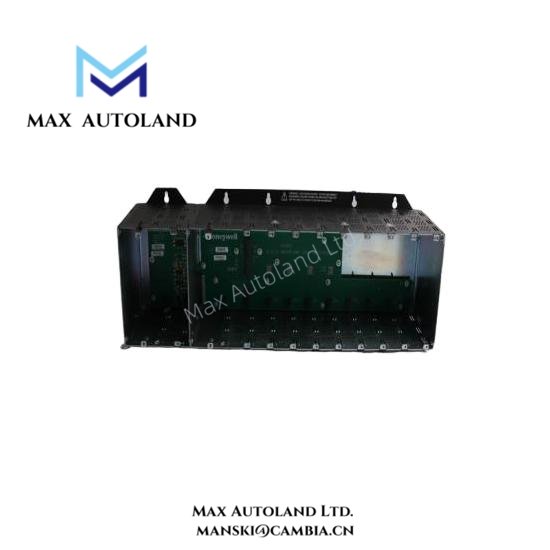

| Model Number | 900R08R-0200 |
| Series | FSC (Field System Controller) |
| Module Type | I/O Slot Rack |
| Number of Slots | 8 Slots for I/O modules |
| Supported Modules | FSC Analog and Digital Input/Output Modules |
| Communication Interface | FSC backplane connection |
| Power Supply | 24 VDC nominal, 5 W typical per rack |
| Slot-to-Slot Isolation | 500 VDC (typical) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 5–500 Hz, 0.5 g RMS |
| Shock Resistance | 15 g, 11 ms half-sine pulse |
| Mounting | 19-inch rack compatible; optional DIN rail mounting |
| Dimensions | 250 mm x 120 mm x 50 mm (approx.) |
| Weight | 1.2 kg (approx.) |
| Compliance / Certification | CE, UL, CSA, RoHS |
| Maintenance | Hot-swappable; supports diagnostics and preventive maintenance |
FAQ
Q1: How many I/O modules can this rack support?
A1: The 900R08R-0200 supports up to 8 FSC I/O modules per rack, allowing flexible system expansion.
Q2: Is the rack compatible with hot-swappable modules?
A2: Yes, all compatible FSC modules can be replaced without shutting down the system, minimizing operational downtime.
Q3: Can it be used in harsh industrial environments?
A3: Absolutely, it is rated for vibration, shock, and wide temperature ranges, ensuring reliable performance.
Q4: Does it support redundant FSC configurations?
A4: Yes, the rack can operate within redundant FSC systems to enhance overall system reliability and fault tolerance.
Q5: What types of modules are compatible with this rack?
A5: It supports all FSC analog and digital input/output modules, including voltage, current, and relay-based I/O modules.
Q6: How is maintenance and diagnostics handled?
A6: The rack includes built-in diagnostics, and modules are hot-swappable, simplifying preventive maintenance and fault detection.
