Overview

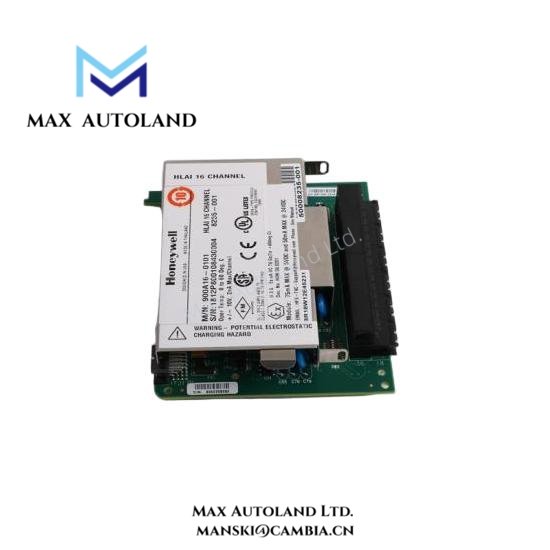

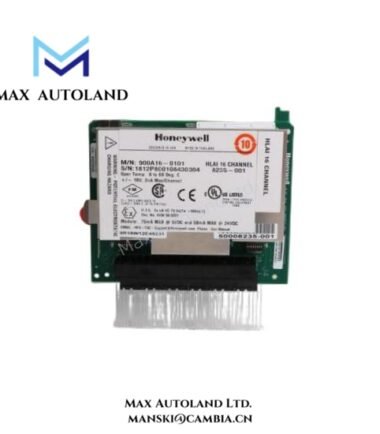

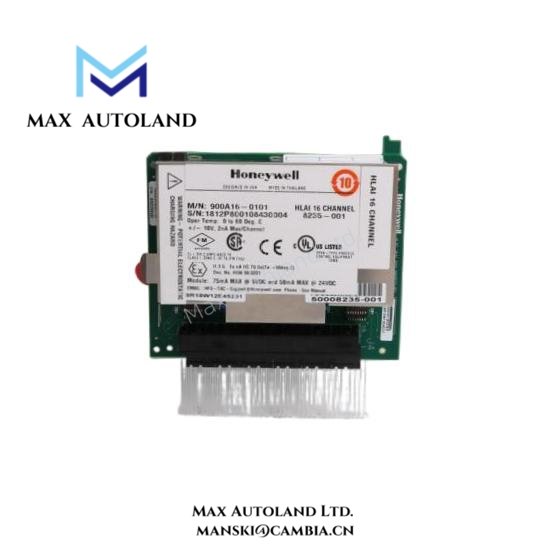

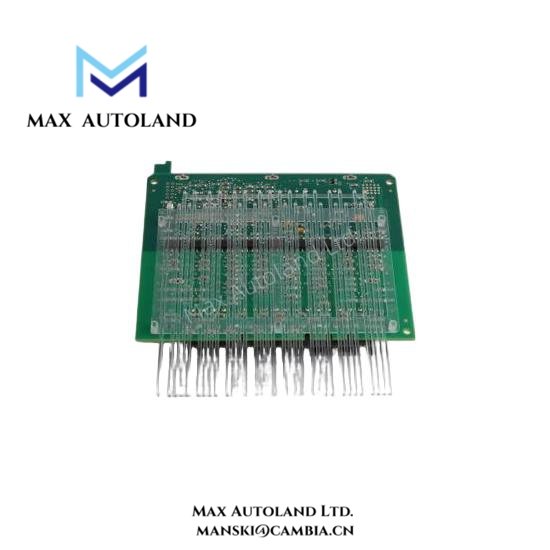

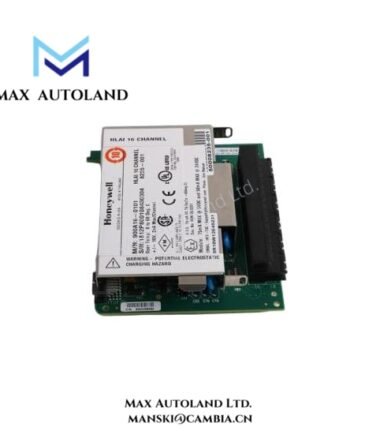

The Honeywell 900A16-0101 module delivers precise high-level analog input measurements for FSC and HC900 control systems.
It captures voltage and current signals from field devices with high resolution, therefore ensuring accurate process monitoring.
Moreover, the module integrates seamlessly with FSC racks, supporting system scalability and flexible process configurations.
Its industrial-grade design tolerates vibration, EMI, and temperature extremes, guaranteeing long-term operational reliability.
Engineers select this module to maintain deterministic input performance in critical process and safety applications.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Series | FSC / HC900 |
| Model Number | 900A16-0101 |
| Order Reference | 900A16-0101 |
| Module Type | High-Level Analog Input Module |
| Primary Function | Measures high-level voltage and current signals for FSC/HC900 controllers |
| Input Channels | Multiple analog inputs |
| Input Types | Voltage (0–10 V, ±10 V), Current (0–20 mA, 4–20 mA) |
| Resolution | High-resolution analog conversion for precise control |
| Isolation | Galvanic isolation per channel for protection |
| Diagnostics | Per-channel monitoring and fault detection |
| System Compatibility | Honeywell FSC controllers and HC900 systems |
| Installation Method | Rack-mounted plug-in module |
| Mechanical Design | Modular, field-replaceable |
| Operating Temperature | -20°C to +70°C |
| Environmental Tolerance | Industrial-grade vibration, EMI, and temperature resilience |
| Power Supply | Supplied via FSC/HC900 backplane |
| Power Consumption | Optimized for continuous operation |
| Typical Industries | Oil and gas, chemical, power generation, heavy industry |
| Reliability | Long-term operation in safety-critical networks |
| Lifecycle Support | Honeywell long-term spare parts and service availability |
FAQ
Q1: What is the primary purpose of the Honeywell 900A16-0101 module?
A1: It measures high-level voltage and current signals for FSC or HC900 controller input.
Q2: Which analog input ranges are supported?
A2: The module supports 0–10 V, ±10 V voltage inputs, and 0–20 mA or 4–20 mA current inputs.
Q3: Does the module provide diagnostics?
A3: Yes, it provides per-channel monitoring for rapid troubleshooting and preventive maintenance.
Q4: Can it operate in harsh industrial environments?
A4: Yes, it tolerates vibration, EMI, and temperature extremes for long-term reliability.
Q5: Which industries typically use this module?
A5: Common applications include oil and gas, chemical processing, power generation, and heavy industry.
