Overview

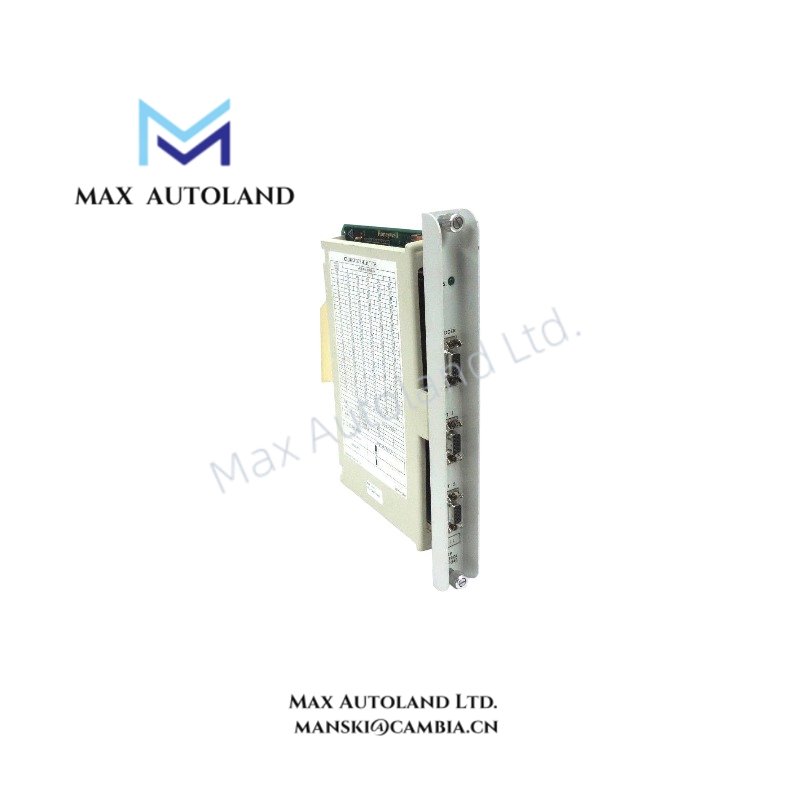

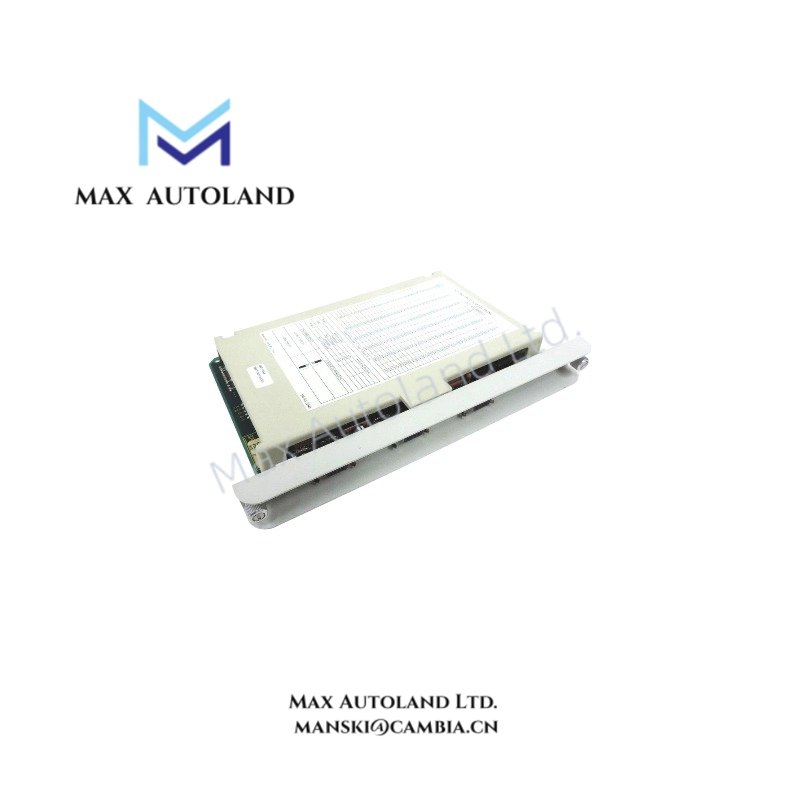

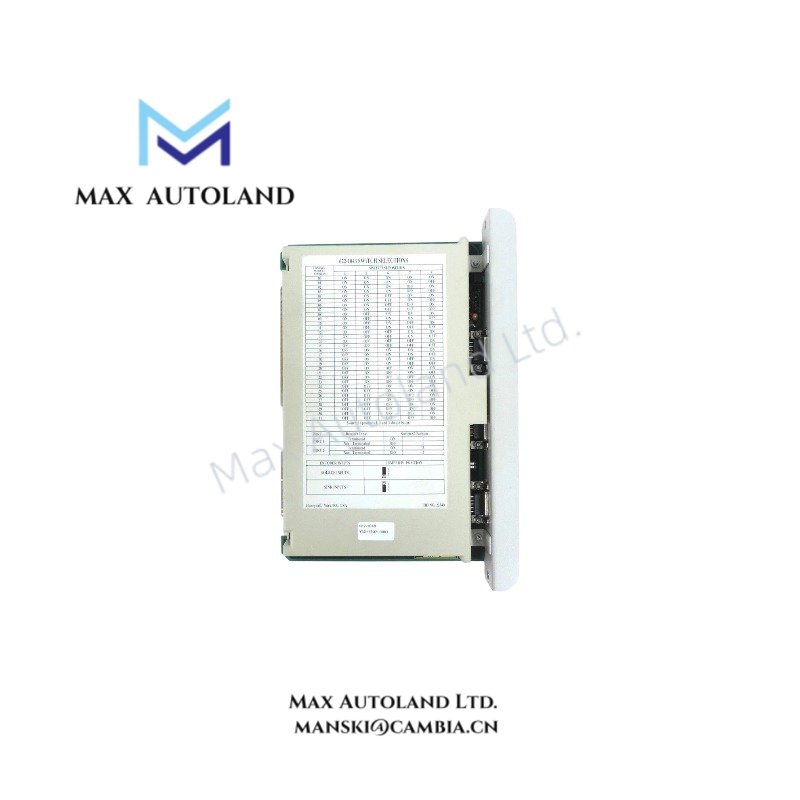

Configured for synchronous point-to-point multi-axis motion execution in industrial control backplane architectures, the Honeywell 622-1043 (622-1043 Servo Control Module) provides direct electrical implementation for coordinated axis positioning within the Honeywell IPC ISSC 600 System platform.
HardwareSpecifications
| Parameter | Specification |
|---|---|
| Model | Honeywell 622-1043 |
| Brand | Honeywell IPC |
| Origin | USA / Multi-source manufacturing |
| Weight | 0.7 kg |
| Dimensions | 3.0 cm x 26.7 cm x 17.3 cm |
| OperatingTemp | Not specified (refer system enclosure limits) |
| PowerConsumption | Not specified |
| Product Type | Servo Control Module |
| System Compatibility | Honeywell ISSC 600 System |
| Control Function | Synchronous point-to-point multi-axis control |
| Backplane Interface | ISSC 600 series backplane bus |
Honeywell Process Control Signal Integration Characteristics
The module is aligned with Honeywell process control architecture, supporting structured I/O and control signal handling within distributed control environments. Signal conditioning paths are designed for deterministic execution across backplane communication layers, with typical DCS-level integration concepts such as 4-20 mA loop interfacing and HART-compatible field signal structuring where applicable at system level. Channel segmentation supports logical separation of control domains to reduce cross-interference within multi-axis synchronization tasks.
Frequently Asked Questions
Q: Can the 622-1043 module operate in hot-swap configurations within ISSC 600 racks?
A: Hot-swap capability is system-dependent. Backplane power sequencing must be validated before module insertion or removal.
Q: Does the module require external firmware synchronization for multi-axis coordination?
A: Synchronization is managed through the ISSC 600 backplane control architecture; firmware alignment is handled at system configuration level.
Q: What is the backplane load consideration for this module?
A: Backplane current draw and slot loading must be verified against ISSC 600 chassis specifications; no standalone consumption value is defined.
Field Installation Guidelines
Ensure rack power is fully isolated before installation or removal. Insert module only into designated ISSC 600 compatible slot with controlled alignment to backplane connectors. Verify shielding continuity across chassis ground points to maintain signal integrity in multi-axis synchronization environments. Maintain separation between control wiring and high-power conductors to minimize electromagnetic coupling. All terminal handling shall follow standard industrial ESD grounding practices.
