Overview

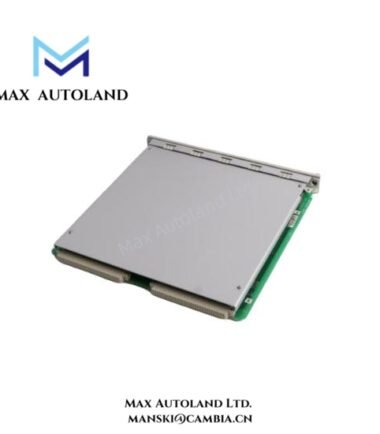

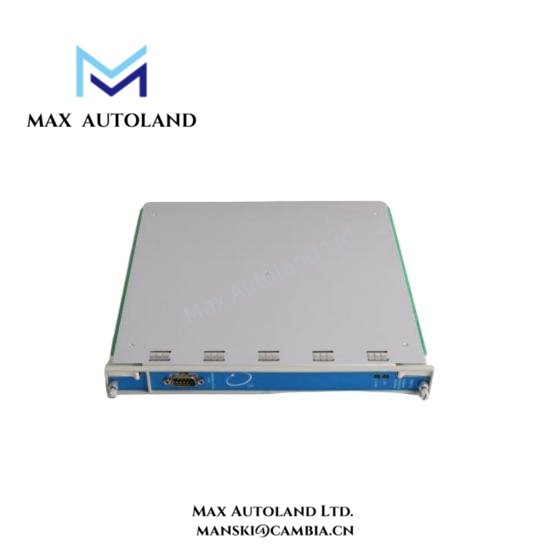

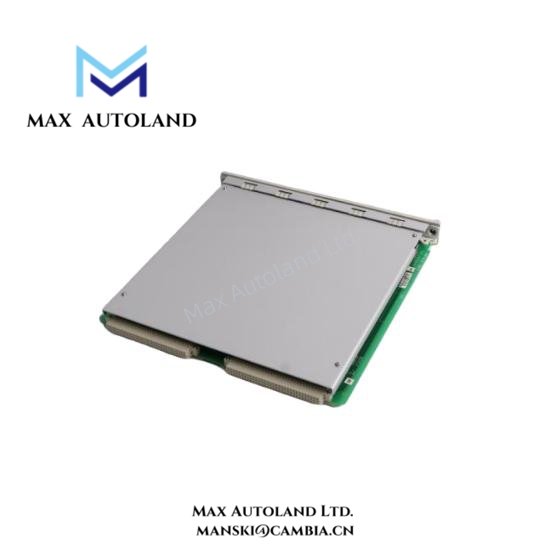

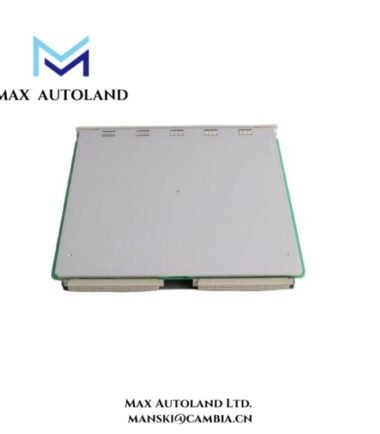

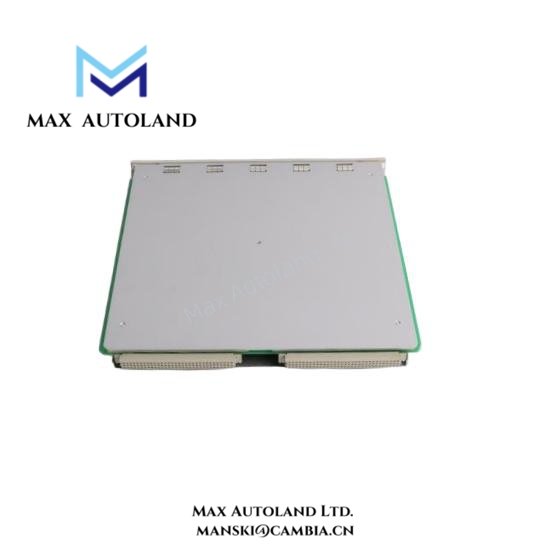

The Bently Nevada 3500/93 Display Interface Module (135799-01) provides intuitive, real-time visualization for 3500 machinery protection systems. Moreover, it enables operators to monitor machine health efficiently, allowing rapid identification of potential faults. In addition, the module integrates seamlessly into standard 3500 system racks, supporting consistent performance across connected channels. Its robust design ensures long-term reliability even in industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 3500/93 |
| Part Number | 135799-01 |
| Module Type | Display Interface Module |
| Display Type | High-resolution LCD |
| Display Size | 12.1 inches diagonal |
| Resolution | 1024 x 768 pixels |
| Aspect Ratio | 4:3 |
| Brightness | 300 cd/m² (typical) |
| Contrast Ratio | 800:1 (typical) |
| Color Depth | 16.7 million colors |
| Backlight | LED |
| Input Interface | Proprietary 3500 system bus |
| Output Interface | Visual alarms and operational data |
| Rack Mount | Standard 19-inch 3500 system rack |
| Mounting Depth | 100 mm standard |
| Power Supply | 24 VDC ±10% |
| Power Consumption | 25 W typical |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Shock & Vibration | Meets Bently Nevada 3500 system standards |
| Weight | 4.5 kg (9.9 lbs) |
| Compliance | CE, UL, RoHS |
| System Compatibility | Bently Nevada 3500 series racks and modules |
| Alarms Displayed | Faults, warnings, and operational alerts |
| Data Access | Real-time metrics and historical logs |
| Reliability | MTBF > 50,000 hours |
FAQ
A1: Yes, the 3500/93 135799-01 is 100% original and factory-new.
Q2: What is the typical delivery time?
A2: Inventory is in stock, and shipment is usually within 3–14 days depending on order size.
Q3: Which system racks is this module compatible with?
A3: Fully compatible with standard Bently Nevada 3500 series racks.
Q4: Does it support historical data access?
A4: Yes, operators can access both real-time and historical machine data.
Q5: What power supply does it require?
A5: The module operates on 24 VDC ±10% with typical power consumption of 25 W.
Q6: What if there is a quality issue after delivery?
A6: We offer a 30-day return policy for any quality-related issues.
