Overview
Specification
| Parameter | Specification | Notes / Additional Information |
|---|---|---|

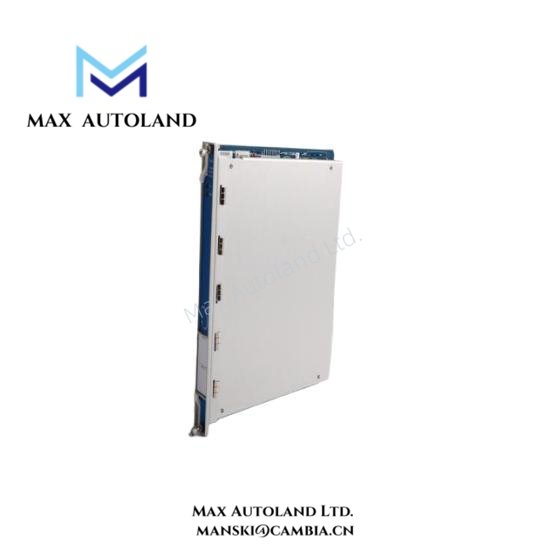

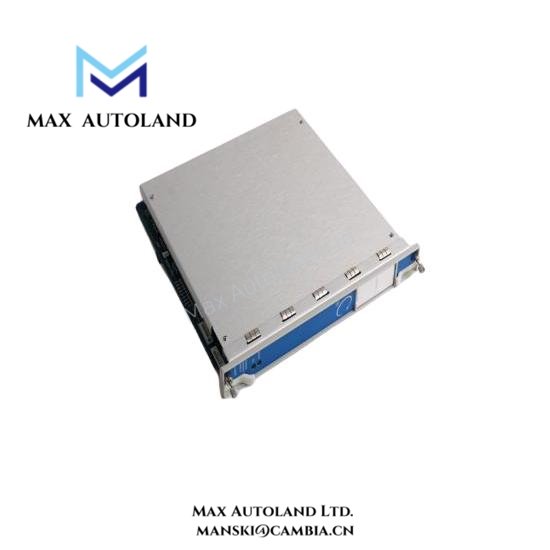

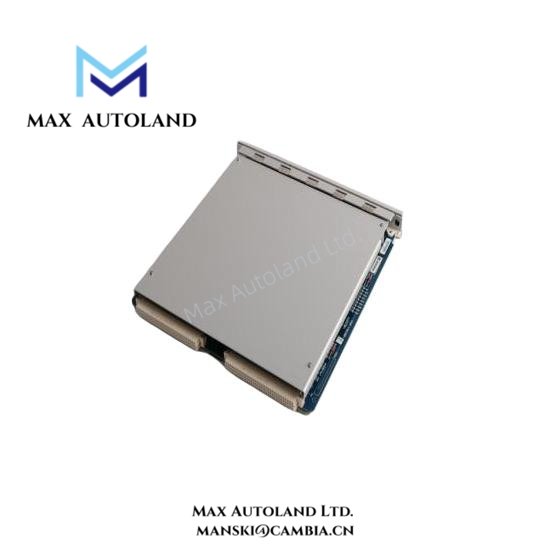

| Module Type | Communication Gateway Module | Therefore, it bridges 3500 Series protection systems with external Modbus networks. |
| Model Number | 3500/92 136180-01 | Specifically designed for industrial machinery protection. |
| Manufacturer | Bently Nevada (GE) | Trusted brand for reliable monitoring solutions. |
| Communication Protocol | Modbus RS485 | Which allows integration with legacy control systems and real-time data acquisition. |
| Input Signals | Analog and Digital | Converts critical 3500 Series signals into Modbus-compatible outputs. |
| Output Signals | Modbus RTU Data | Consequently, operators can monitor, control, and log system data efficiently. |
| Power Supply | 24 VDC nominal, 20–30 VDC range | Provides stable operation even under fluctuating industrial conditions. |
| Power Consumption | 5 W typical | Ensures minimal additional load on system power. |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | Therefore suitable for typical industrial environments. |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | Enables safe storage during shipping or standby. |
| Humidity | 0–95% non-condensing | Ensures reliable operation in humid environments. |
| Dimensions (H×W×D) | 152 mm × 19 mm × 205 mm (6 in × 0.75 in × 8 in) | Fits standard 3500 Series rack slots. |
| Weight | 0.9 kg (2.0 lbs) | Lightweight design simplifies installation. |
| Interface | 9-pin RS485 connector, status LEDs | Furthermore, LEDs provide visual feedback for diagnostics and communication status. |
| Mounting | 3500 Series rack | Compatible with all standard 3500 racks and frames. |
| Isolation | Galvanic isolation between RS485 and module electronics | Therefore prevents ground loops and signal interference. |
| Compliance | CE, UL listed | Ensures safety and regulatory compliance. |
| Serviceability | Hot-swappable module | Enables maintenance without shutting down the system. |
FAQ
A1: Yes, it is fully new, original, and factory-tested.
Q2: What shipping options are available?
A2: We ship globally via DHL, FedEx, or UPS, typically within 3–14 days depending on order size.
Q3: Can it integrate with existing 3500 Series modules?
A3: Yes, it is fully compatible with all standard 3500 Series protection modules.
Q4: What if the module has a defect?
A4: We support returns within 30 days for any quality issues.
Q5: Does it support multiple communication protocols?
A5: Primarily Modbus RS485, but it can interface with compatible network adapters for other protocols.
