Overview

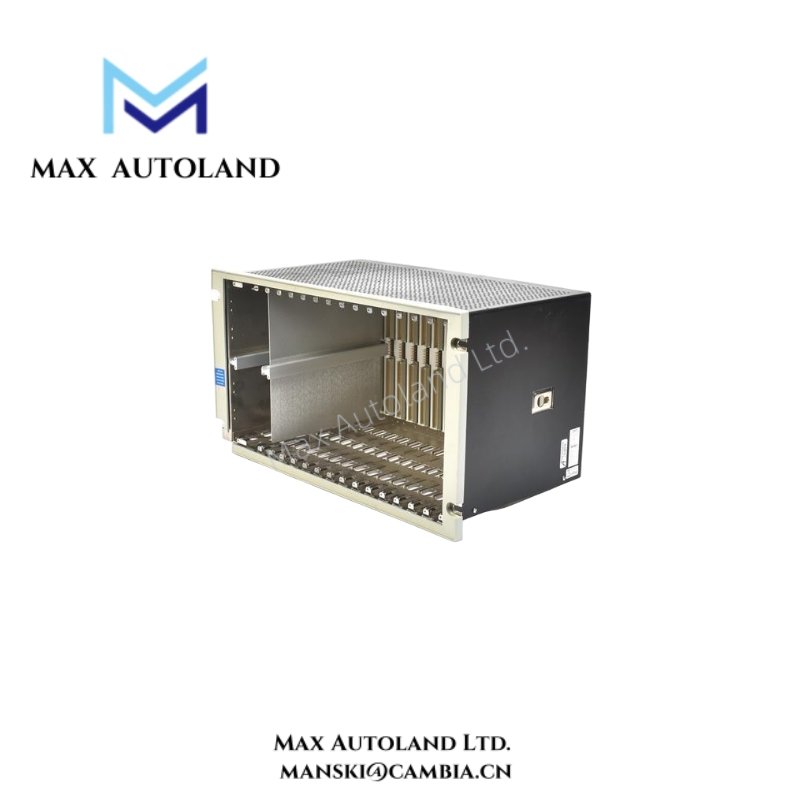

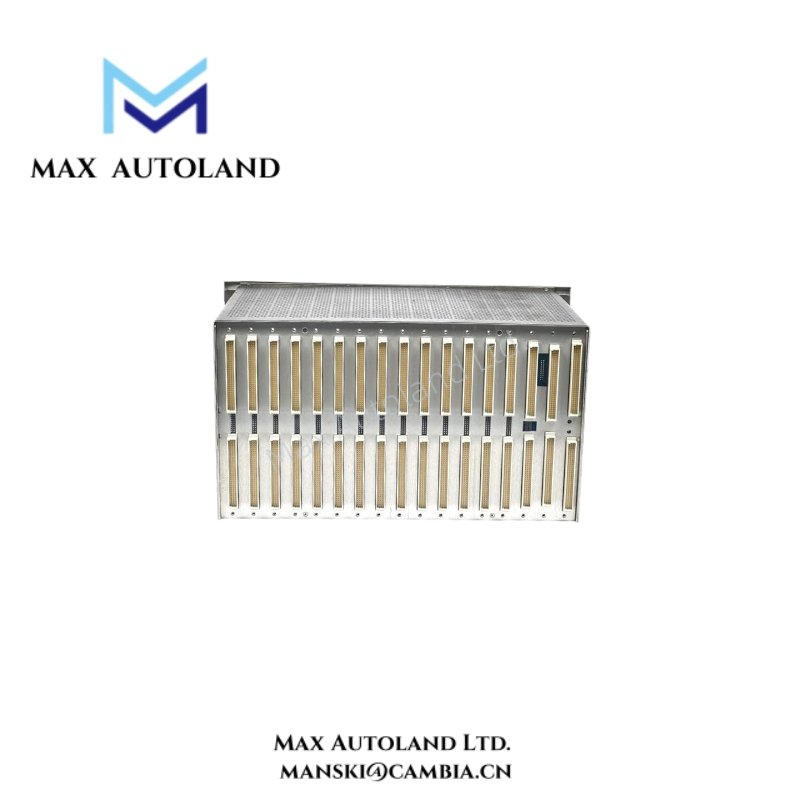

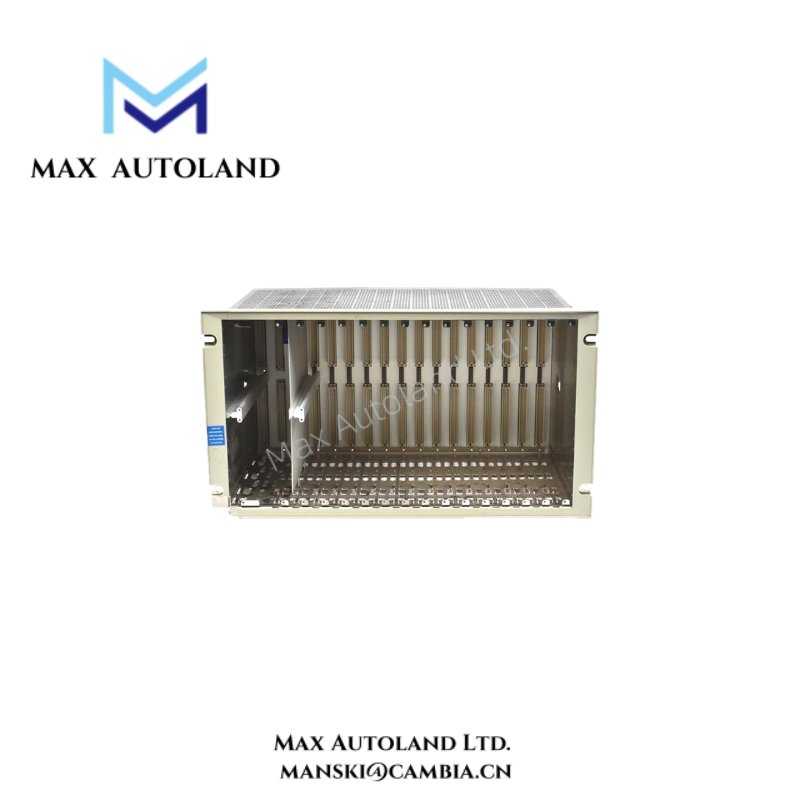

Engineered for critical applications in power generation, oil and gas, and heavy industry, the 3500/05 system rack supports continuous monitoring and protection of vibration, speed, and temperature data. Moreover, its modular structure allows flexible system configurations that meet specific plant requirements while maintaining easy scalability.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 3500/05-01-02-05-00-01 |
| Brand | Bently Nevada (GE) |
| Product Type | 3500 System Rack |
| Rack Size | 19-inch Rack (14 module slots) |
| Module Mounting | Front-loading with locking retention |
| Mounting Options | Rack Mount Option, Full-Size Rack (mounts to 19-inch EIA Rack) |
| Power Supply Options | Dual redundant AC or DC input |
| Communication Interface | Compatible with 3500/22M Transient Data Interface and 3500/20 Rack Interface Module |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95% non-condensing |
| Dimensions | Approx. 482.6 mm (W) × 266.7 mm (H) × 279.4 mm (D) |
| Reserved | None |
| Compliance | CE, CSA, and ISO industrial standards |
FAQ
A1: It provides the structural and electrical framework that holds and powers all 3500 system modules used for machinery monitoring and protection.
Q2: Can the rack be configured for redundant operation?
A2: Yes. The 3500/05 supports dual redundant power supplies and multiple interface configurations for enhanced system reliability.
Q3: Which industries typically use the 3500/05 system rack?
A3: Common applications include oil and gas, power generation, petrochemical, and heavy industrial machinery.
Q4: How does it integrate with control systems?
A4: The rack connects with DCS, PLC, and SCADA systems via modules such as the 3500/22M TDI for real-time data exchange.
Q5: Is the rack backward compatible with previous 3500 modules?
A5: Yes. It supports full compatibility within the 3500 product family, ensuring seamless upgrades.
