Overview
Specification
| Parameter | Specification |
|---|---|

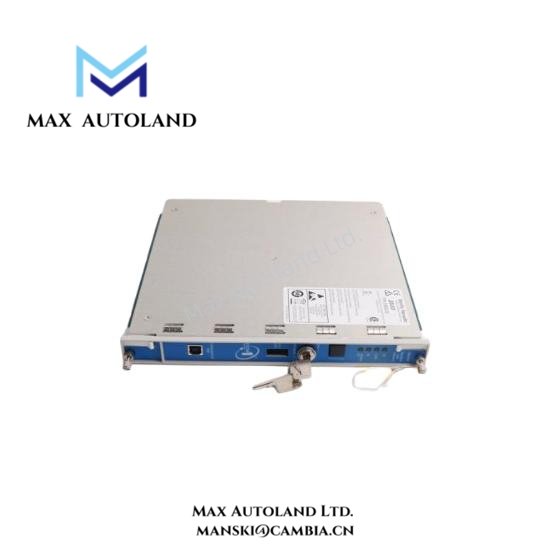

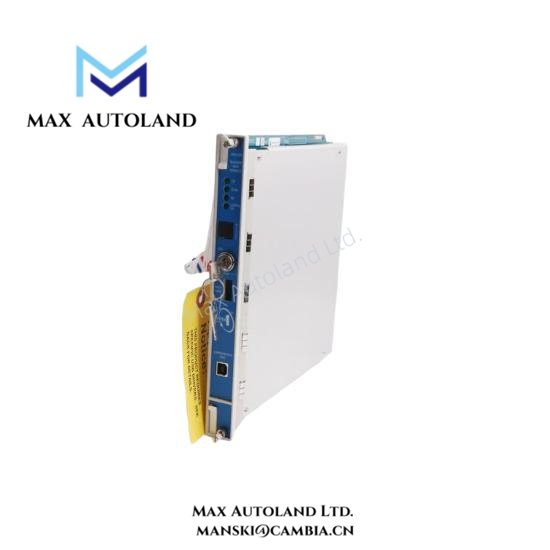

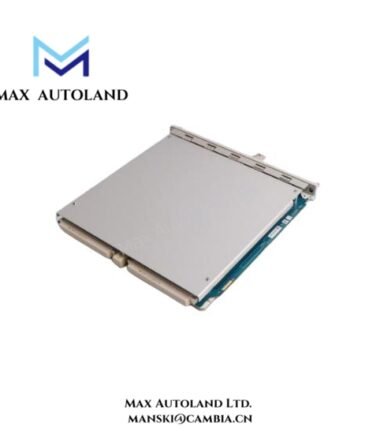

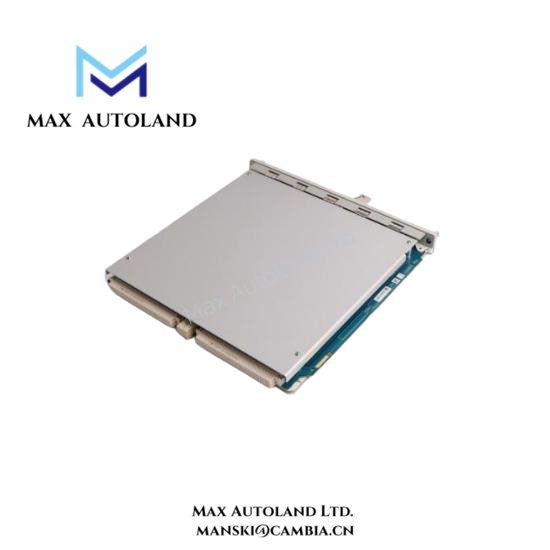

| Model Number | 3500/22M-01-01-01 |
| Manufacturer | Bently Nevada |
| Series | 3500 Machinery Protection |
| Module Type | Standard Transient Data Interface Module with USB Cable |
| Channels | 4 transient data channels |
| Input Signal | Voltage signals from 3500 monitoring modules |
| Sampling Rate | Up to 50 kHz per channel for transient events |
| Data Transfer | USB 2.0 connection to external workstations |
| Connectivity | Compatible with 3500 system backplane and standard rack modules |
| Signal Conditioning | Anti-aliasing filters integrated |
| Dimensions | 230 mm (L) x 160 mm (W) x 40 mm (H) |
| Weight | Approximately 1.5 kg (3.3 lbs) |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5–95%, non-condensing |
| Power Requirements | Supplied via 3500 system rack, 24 VDC nominal |
| Environmental Rating | Shock-resistant, vibration-resistant, industrial-grade |
| Compliance | CE, UL, RoHS certified |
| Diagnostic Features | LED status indicators for channel activity and health |
FAQ
A1: Yes, it integrates seamlessly into standard 3500 system racks.
Q2: Does the module include a USB cable?
A2: Yes, a high-speed USB cable is included for data transfer.
Q3: What is the maximum sampling rate?
A3: The module supports up to 50 kHz per channel for transient data.
Q4: What is the typical delivery time?
A4: We ship within 3–14 days depending on order quantity and location.
Q5: Can the module be used for predictive maintenance?
A5: Yes, it provides precise transient data for early fault detection and analysis.
Q6: Is there a return policy for defective units?
A6: Yes, we support returns within 30 days if quality issues arise.
