Overview
Moreover, this module anchors high-speed data access within the Bently Nevada 3500 Machinery Protection Series.
Therefore, engineers capture steady-state and transient machinery data with consistent timing and integrity.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |

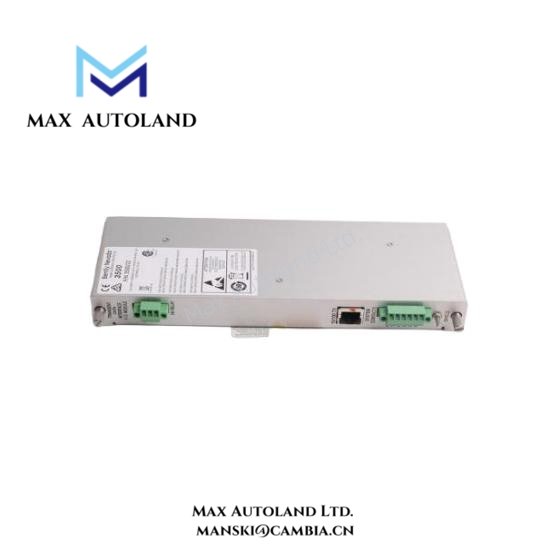

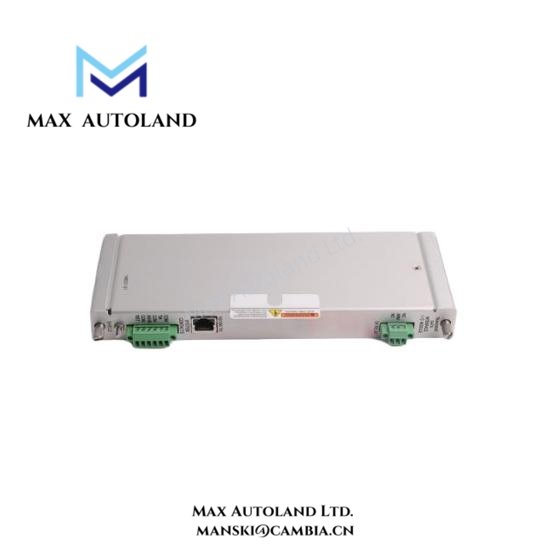

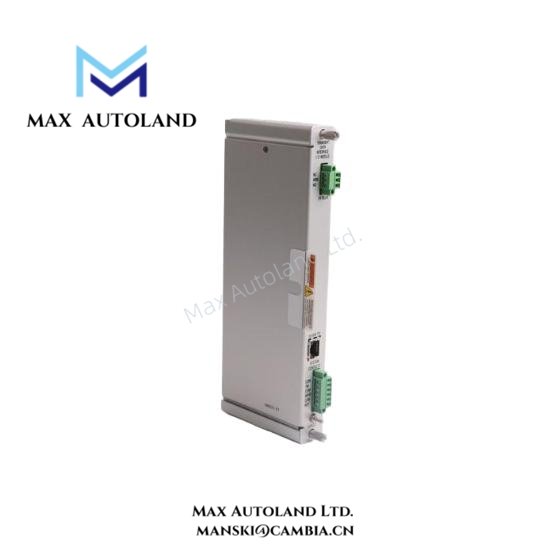

| Model Number | 3500/22-01-01-00 |
| Product Type | Transient Data Interface (TDI) I/O Module |
| Series Compatibility | Bently Nevada 3500 Machinery Protection System |
| Primary Function | Data aggregation, buffering, and network interface |
| Supported Monitors | Up to 12 3500 monitor modules per rack |
| Data Types | Static values, dynamic waveforms, events, alarms |
| Transient Capture | Startup, shutdown, trip, and coast-down events |
| Sampling Synchronization | System-wide synchronized time base |
| Buffer Memory | Internal high-speed memory for transient storage |
| Network Interface | Dual Ethernet ports |
| Ethernet Speed | 10/100 Base-T |
| Network Protocols | TCP/IP, UDP |
| Configuration Interface | 3500 Configuration Software |
| Output Destinations | System 1, condition monitoring software, DCS |
| Backplane Interface | 3500 rack high-speed backplane |
| Energy Storage | Internal capacitors supporting data stability |
| Power Requirement | Supplied by 3500 rack power supply |
| Rack Slot Requirement | One dedicated 3500 TDI slot |
| Indicators | Front-panel OK and network status LEDs |
| Electrical Isolation | Network-to-system isolation |
| Enclosure Material | Industrial-grade metal housing |
| Dimensions (Approx.) | 241 mm × 24 mm × 99 mm |
| Weight (Approx.) | 0.45 kg |
| Operating Temperature | −30 °C to +65 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | Up to 95%, non-condensing |
| EMC Compliance | CE compliant |
| Typical Applications | Turbines, compressors, generators |
| Manufacturing Origin | United States |
FAQ
A1: Yes, this module is 100% brand-new, original, and factory-sealed from Bently Nevada.Q2: Do you keep this Transient Data Interface Module in stock?
A2: Yes, we maintain stock for immediate shipment and project requirements.
Q3: What is the typical shipping timeframe?
A3: Shipping usually takes 3 days to 2 weeks, depending on order quantity.
Q4: Which logistics carriers do you use?
A4: We commonly ship via DHL, FedEx, and other international express services.
Q5: What systems can receive data from this TDI module?
A5: The 3500/22-01-01-00 supports System 1 software and compatible monitoring platforms.
Q6: Do you offer returns for quality-related issues?
A6: Yes, we support returns within 30 days if verified quality issues occur.
