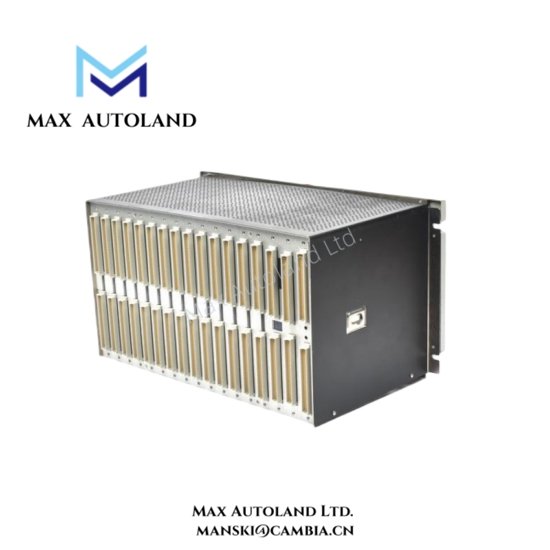

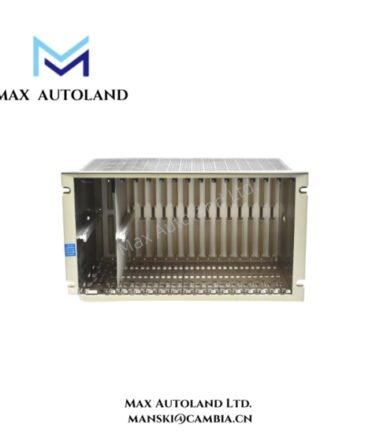

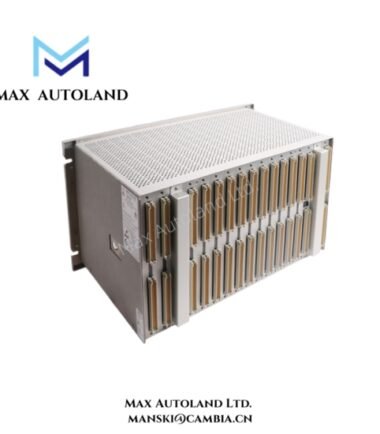

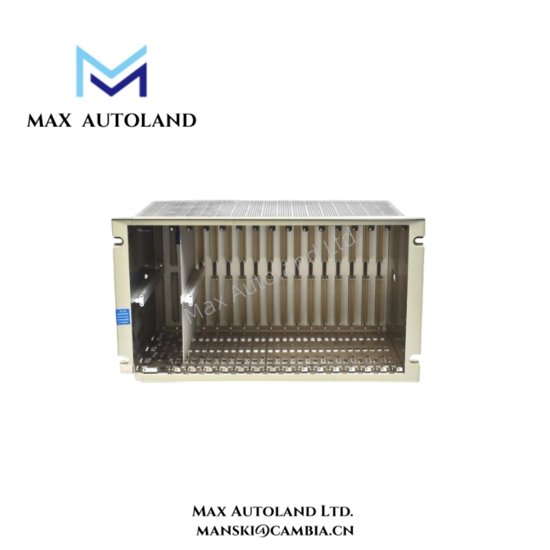

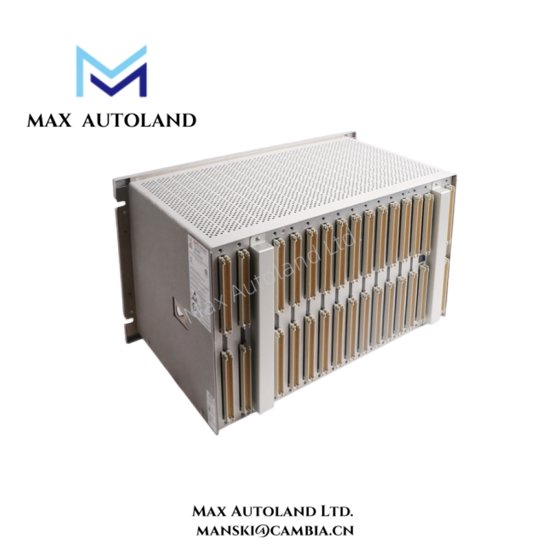

Overview
Specification
| Parameter | Specification / Description |
|---|---|
| Rack Size | Full-Size: 14 module slots; Mini-Rack: 7 module slots (12-inch Mini-Rack) |
| Mounting Options | Panel Mount, Rack Mount, Bulkhead Mount (Mini-Rack: Panel or Rack only) |
| Module Compatibility | 3500 Series Analog, Digital, and I/O modules |
| Power Supply | Occupies far-left rack positions; supports internal power distribution |
| Hot-Swap Capability | Yes, modules can be replaced without shutting down the system |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95%, non-condensing |
| Hazardous Area Approvals | CSA/NRTL/C, ATEX, IECEx (Zones 1 and 2) |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Electrical Safety Compliance | EN 61010-1 |
| Dimensions – Full Rack | 482.6 × 265.9 × 441.96 mm |
| Dimensions – Mini-Rack | 304.8 × 265.94 × 251.5 mm |
| Weight | Varies depending on modules installed |
| Adapter Panels | Required for mounting Mini-Rack in standard 19-inch EIA racks |
FAQ
A1: No, the mini-rack only supports panel or standard rack mounting. Therefore, you should choose the mounting method based on your installation needs.Q2: Are internal barriers compatible with this module?
A2: Yes, internal barriers can be installed for intrinsically safe applications. In addition, a dedicated earthing module ensures proper grounding.Q3: What hazardous area certifications does this module meet?
A3: It meets CSA/NRTL/C, ATEX, and IECEx standards for Zones 1 and 2. Consequently, it provides reliable operation in potentially explosive environments.
Q4: Can I replace modules without shutting down the system?
A4: Absolutely, the 3500/05 supports hot-swappable installation. Therefore, you can maintain continuous operation while performing upgrades or replacements.
Q5: Which module types are compatible with this rack?
A5: The rack works with all 3500 Series analog, digital, and I/O modules. Moreover, this flexibility allows engineers to customize the system for specific monitoring requirements.
