Overview
Specification
| Parameter | Specification / Description |
|---|---|

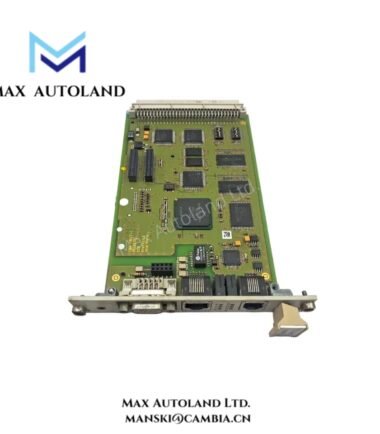

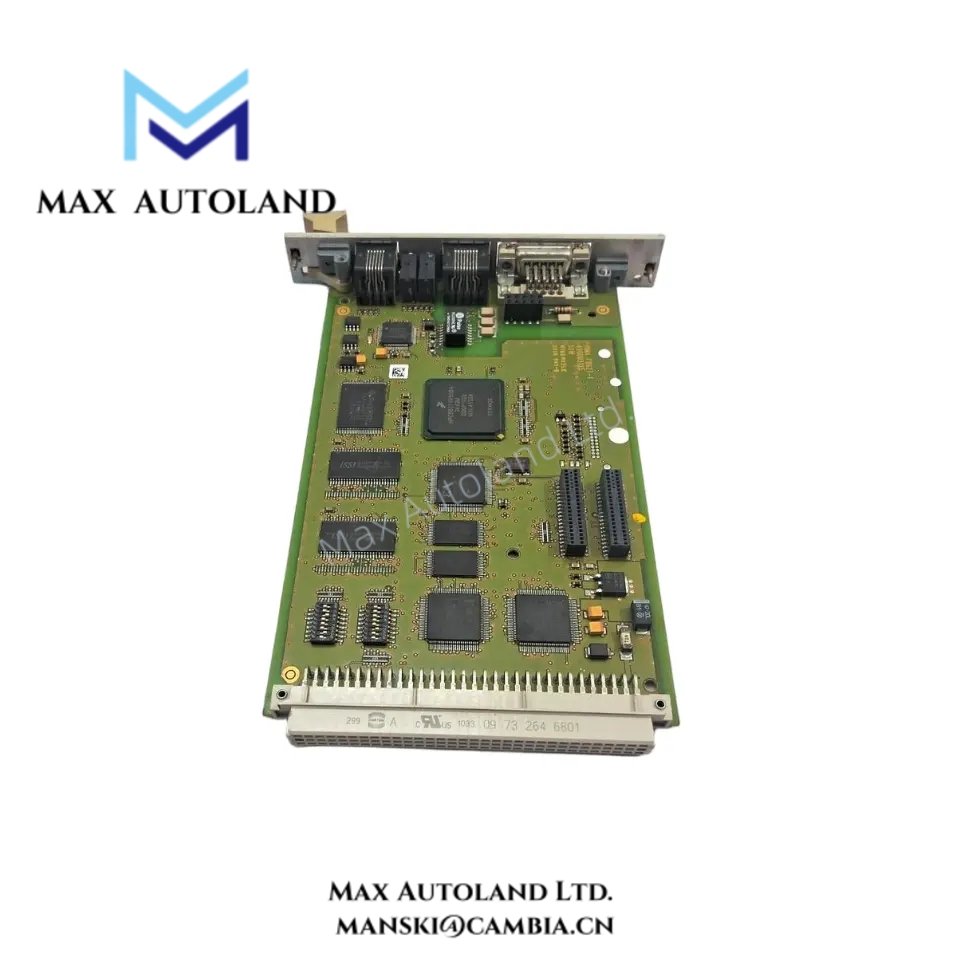

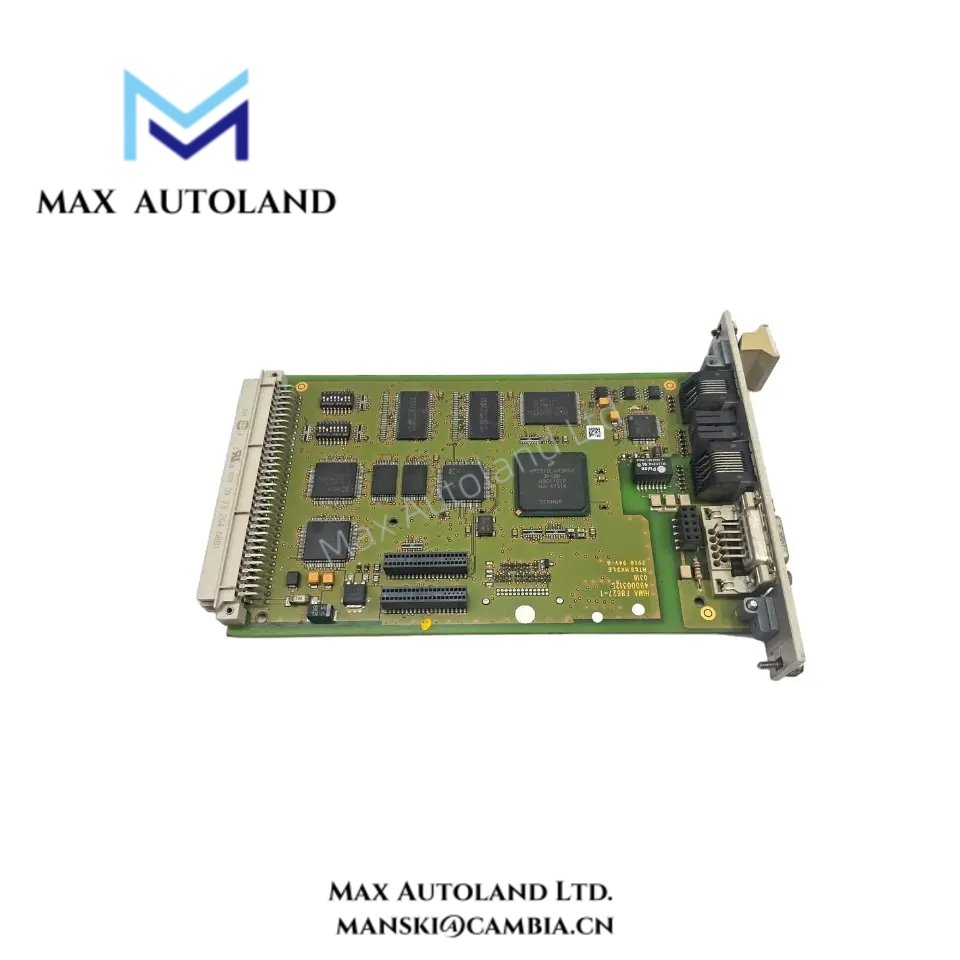

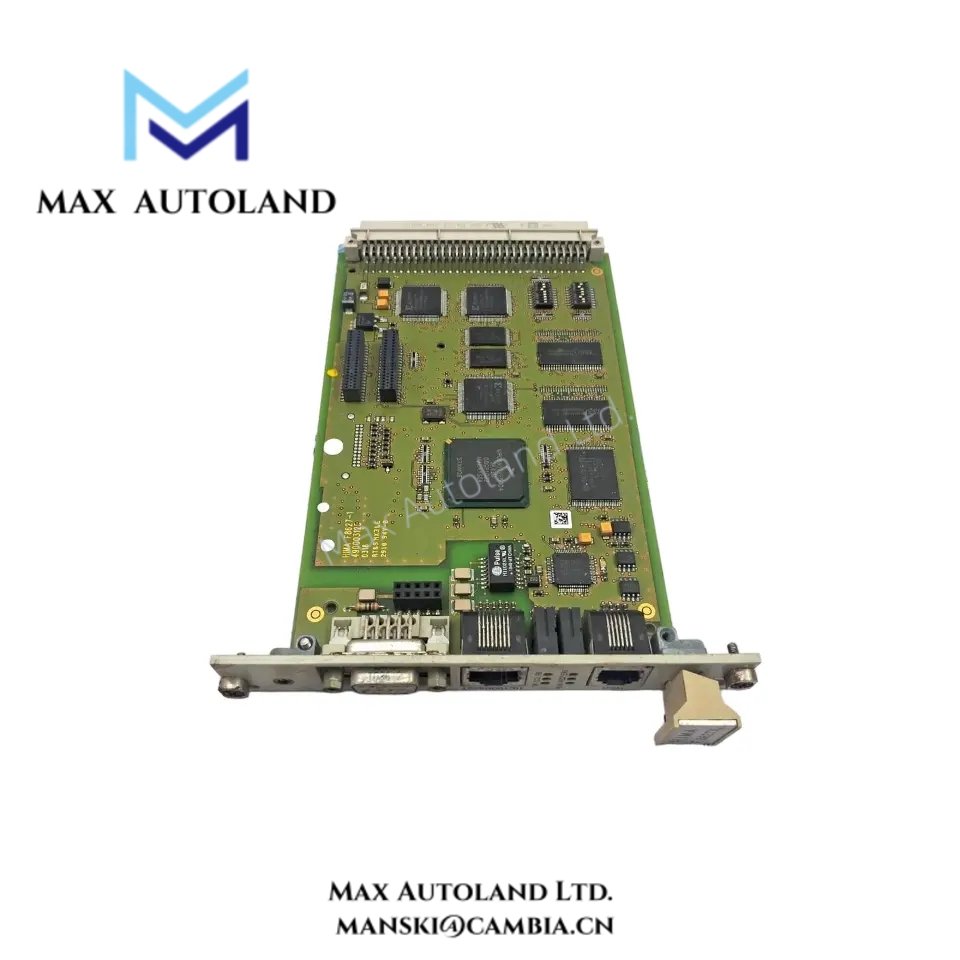

| Model Number | F8627X |
| Module Type | Safety Communication Module |
| Compatible Platforms | HIMax, HIQuad safety systems |
| Communication Interfaces | Ethernet, RS-232, RS-485, CAN bus |
| Supported Protocols | Modbus TCP, PROFINET, Profibus, EtherNet/IP |
| Data Transfer Rate | Up to 100 Mbps |
| Safety Certification | SIL 3 (IEC 61508) |
| Power Supply | 24 V DC nominal |
| Power Consumption | Approx. 5–6 W |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Diagnostics | Built-in LED status indicators |
| Mounting | DIN rail or rack mount |
| Protection Rating | IP20 industrial protection |
| Dimensions (approx.) | 120 × 100 × 35 mm (varies by variant) |
| Weight (approx.) | 0.3–0.8 kg depending on configuration |
FAQ
A1: It integrates with HIMA HIMax and HIQuad safety controller platforms.Q2: Which communication protocols does it support?
A2: The module supports Modbus TCP, PROFINET, Profibus, and EtherNet/IP.
Q3: Is the F8627X certified for industrial safety standards?
A3: Yes, it carries SIL 3 certification according to IEC 61508 functional safety standards.
Q4: What physical interfaces are included?
A4: It offers Ethernet, RS-232/RS-485, and CAN bus interfaces for flexible connectivity.
Q5: What are the environmental operating conditions?
A5: It operates from –20°C to +70°C with standard industrial protection.
Q6: How does the module support diagnostics and maintenance?
A6: Built-in LEDs provide real-time status and fault indication for easy troubleshooting.
