Overview
Moreover, it operates within the 3500 Machinery Protection platform and actively converts alarm and trip decisions into hardwired relay actions.
Therefore, this spare module supports fast replacement strategies, and it significantly minimizes downtime during maintenance or unexpected failures.
Specification
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada (Baker Hughes) |
| Model / Part Number | 149992-01 |

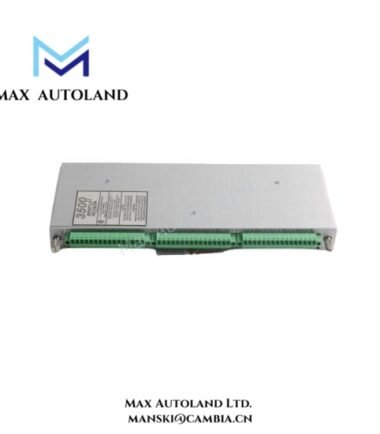

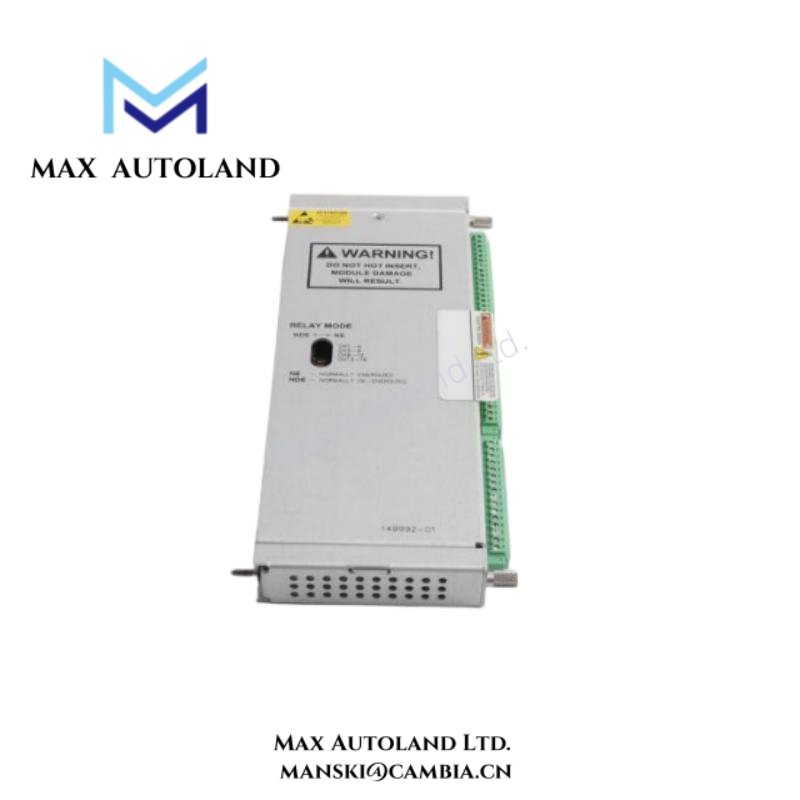

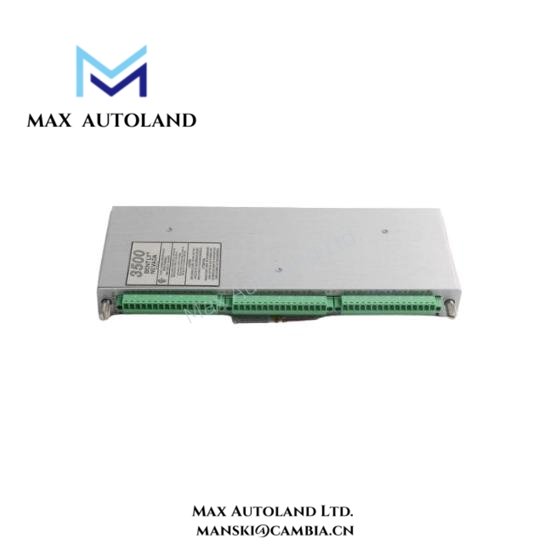

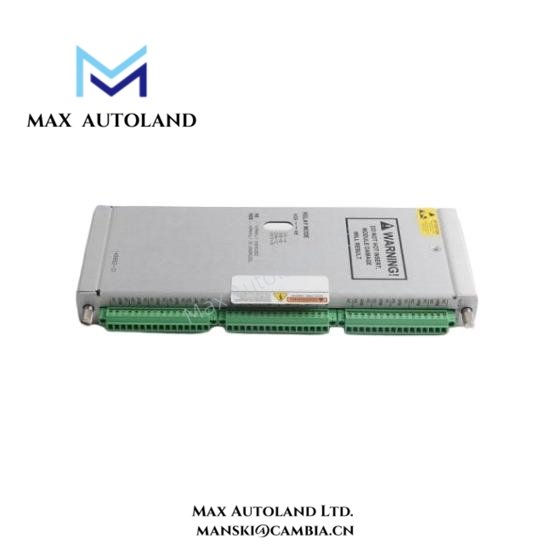

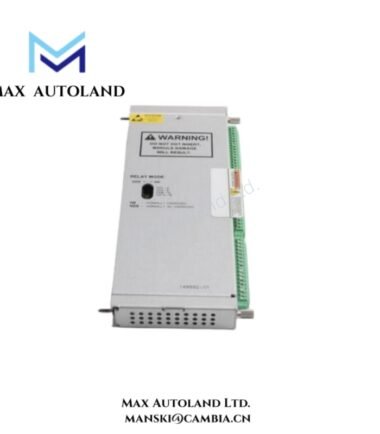

| Module Type | 3500/33 16-Channel Relay Output Module |
| System Platform | Bently Nevada 3500 Machinery Protection System |
| Number of Channels | 16 relay output channels |
| Relay Type | Form C electromechanical relays |
| Primary Function | Alarm, trip, and external control signal output |
| Logic Configuration | Configurable through 3500 system configuration software |
| Rack Compatibility | Standard 3500 system rack installation |
| Power Supply | Powered directly from the 3500 rack backplane |
| Electrical Isolation | Isolation between relay outputs and system electronics |
| Diagnostics | Continuous self-diagnostics for relay and module health |
| Response Characteristics | Suitable for high-reliability machinery protection duties |
| Operating Temperature | –30 °C to +65 °C |
| Environmental Design | Designed for continuous industrial operation |
| Compliance | Designed to meet applicable machinery protection standards |
FAQ
A1: It provides sixteen hardwired relay outputs to execute alarms, trips, and control actions in 3500 protection systems.
Q2: Can the 149992-01 module be used as a direct replacement?
A2: Yes, it installs directly into standard 3500 racks, therefore supporting fast replacement without system redesign.
Q3: How many relay outputs does this module support?
A3: The module supports sixteen independent relay output channels for flexible protection and control strategies.
Q4: Is relay behavior configurable for different machines?
A4: Yes, engineers configure relay logic through 3500 system software to match specific machinery protection requirements.
Q5: Which industries commonly deploy this relay output module?
A5: Power generation, oil and gas, petrochemical, and heavy industrial facilities commonly use this module.
Q6: How does this module improve system reliability?
A6: It delivers deterministic relay operation and quick replacement capability, therefore reducing protection downtime risks.
