Overview
Specification
| Parameter | Specification |
|---|---|

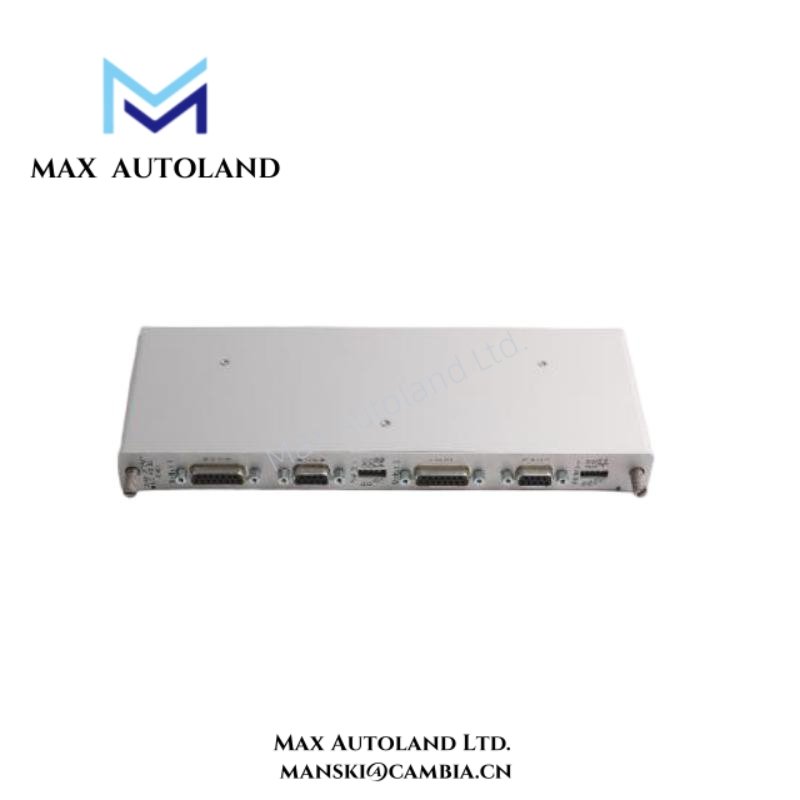

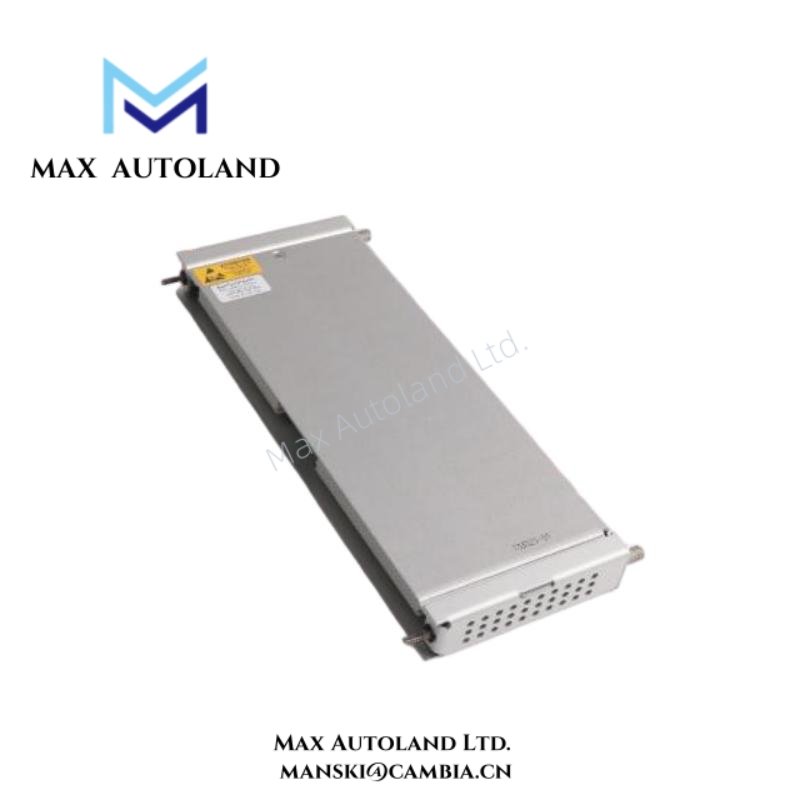

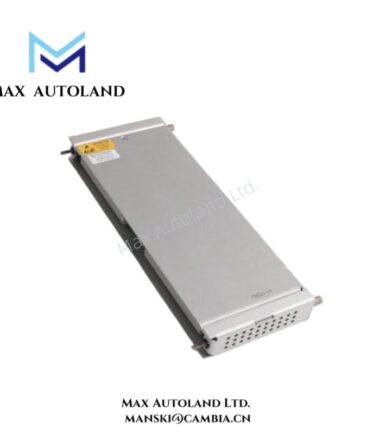

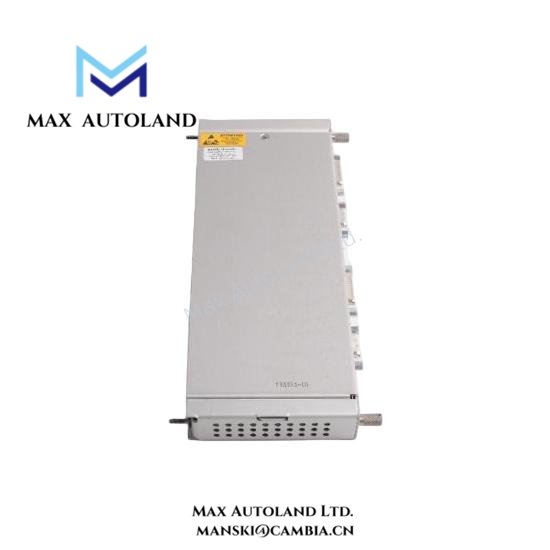

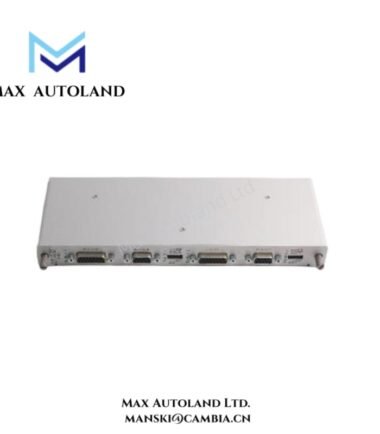

| Model Number | 146031-02 |
| Series | Bently Nevada 3500 Machinery Protection |
| Module Type | 100Base-FX Fiber Optic I/O Module |
| Communication Standard | IEEE 802.3u (100Base-FX) |
| Transmission Medium | Fiber optic |
| Connector Type | ST or SC fiber connector (system dependent) |
| Data Rate | 100 Mbps |
| Maximum Transmission Distance | Up to 2 km with multimode fiber |
| Electrical Isolation | Full optical isolation |
| Mounting | Standard 3500 rack mounting |
| Power Source | Supplied through 3500 rack backplane |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Typical Use | High-speed communication for machinery protection systems |
FAQ
A1: It provides 100Base-FX fiber optic communication for data exchange within the 3500 system.
Q2: Why use fiber optic communication instead of copper Ethernet?
A2: Fiber optics eliminate electrical interference and support longer communication distances.
Q3: Which systems does this module integrate with?
A3: It works with Bently Nevada 3500 Communication Gateway modules and external monitoring networks.
Q4: Is this module suitable for harsh industrial environments?
A4: Yes, its optical isolation and wide temperature range support reliable industrial operation.
Q5: How is the module installed?
A5: It installs directly into a standard Bently Nevada 3500 rack via the system backplane.
Q6: Does it support high-speed data transmission?
A6: Yes, it supports 100 Mbps communication using the 100Base-FX standard.
