Overview

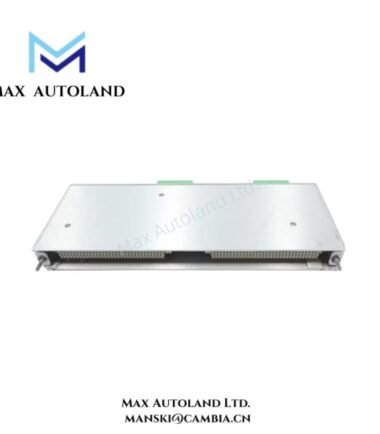

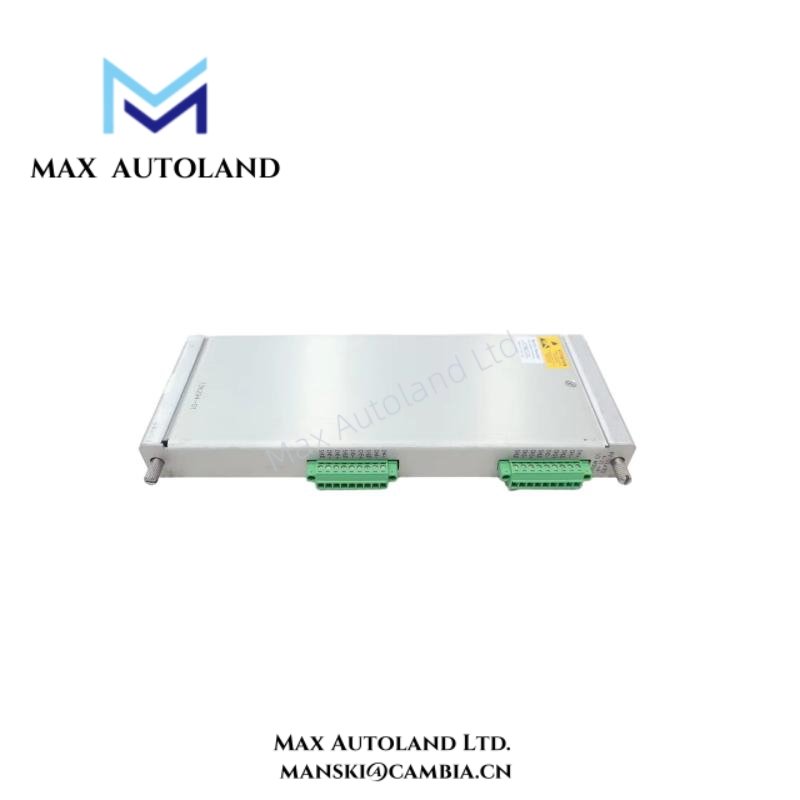

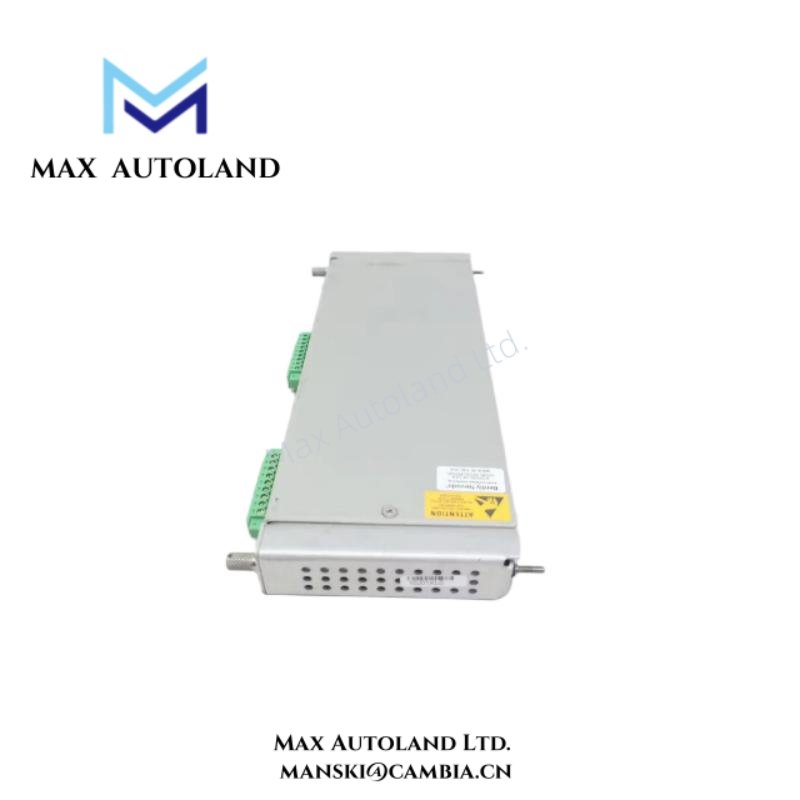

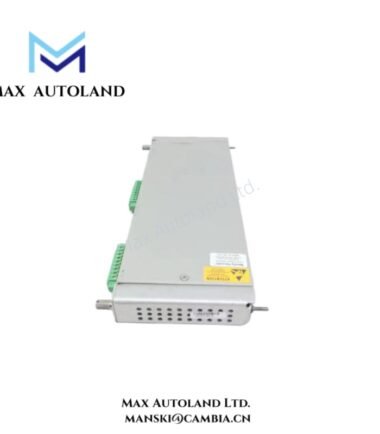

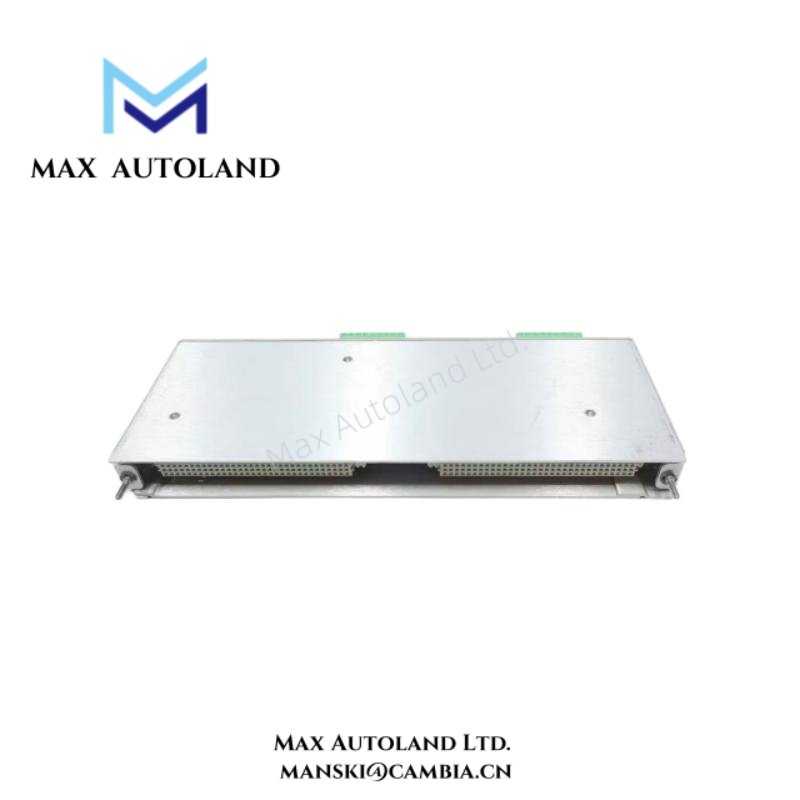

It provides accurate +4 to +20 mA signal processing while incorporating internal terminations for clean installation.
Moreover, this module enables reliable process variable monitoring in critical industrial environments.
Specification
| Category | Specification |
|---|---|
| Model Number | 136294-01 |
| Manufacturer | Bently Nevada |
| Series | 3500 Machinery Protection System |
| Module Type | Isolated +4 to +20 mA I/O Module with internal terminations |
| Form Factor | Single-slot Eurocard module |
| Rack Compatibility | Bently Nevada 3500 rack |
| Number of Channels | Multiple isolated analog input channels (+4 to +20 mA) |
| Termination Type | Internal terminations |
| Supported Sensors | Pressure, temperature, flow, process variable transmitters |
| Backplane Interface | High-density edge connector to 3500 backplane |
| Operating Voltage | Supplied internally by 3500 rack |
| Power Consumption | Low-power, rack-distributed supply |
| Energy Storage Components | None |
| Dimensions (H × W × D) | Approx. 241.3 × 24.4 × 99.1 mm |
| Weight | Approx. 0.34 kg |
| Cooling Method | Passive cooling via rack airflow |
| Operating Temperature Range | 0 °C to +65 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Relative Humidity | Up to 95%, non-condensing |
| Mounting Method | Slide-in rack mounting with retention mechanism |
| Primary Function | Accurate isolated analog signal interface for 3500 system |
FAQ
Yes, the 136294-01 is brand new, factory original, and fully genuine.
Q2: Do you have the 136294-01 in stock?
Yes, we keep the 136294-01 in stock for immediate shipping.
Q3: How fast can you ship after order confirmation?
We ship within three days to two weeks, depending on order quantity.
Q4: Which logistics carriers are used?
We commonly ship the 136294-01 via DHL and other reliable international carriers.
Q5: What if a quality issue occurs after delivery?
We support returns within 30 days if any verified quality issues arise.
